Raspberry Pi M.2 PoE HAT
10 in stock
- SIM Card Socket – Supports Micro SIM for 4G/5G cellular connectivity
- Powerful 3A Regulator – Provides stable and reliable power supply for M.2 modules
- PoE Class 4 Support – IEEE 802.3af/at compliant, delivers up to 25.5W through a Ethernet cable
- USB 3.0 Type-A Port – Enables high-speed data sharing and connectivity
$ 24.9 $ 26.0
10 in stock

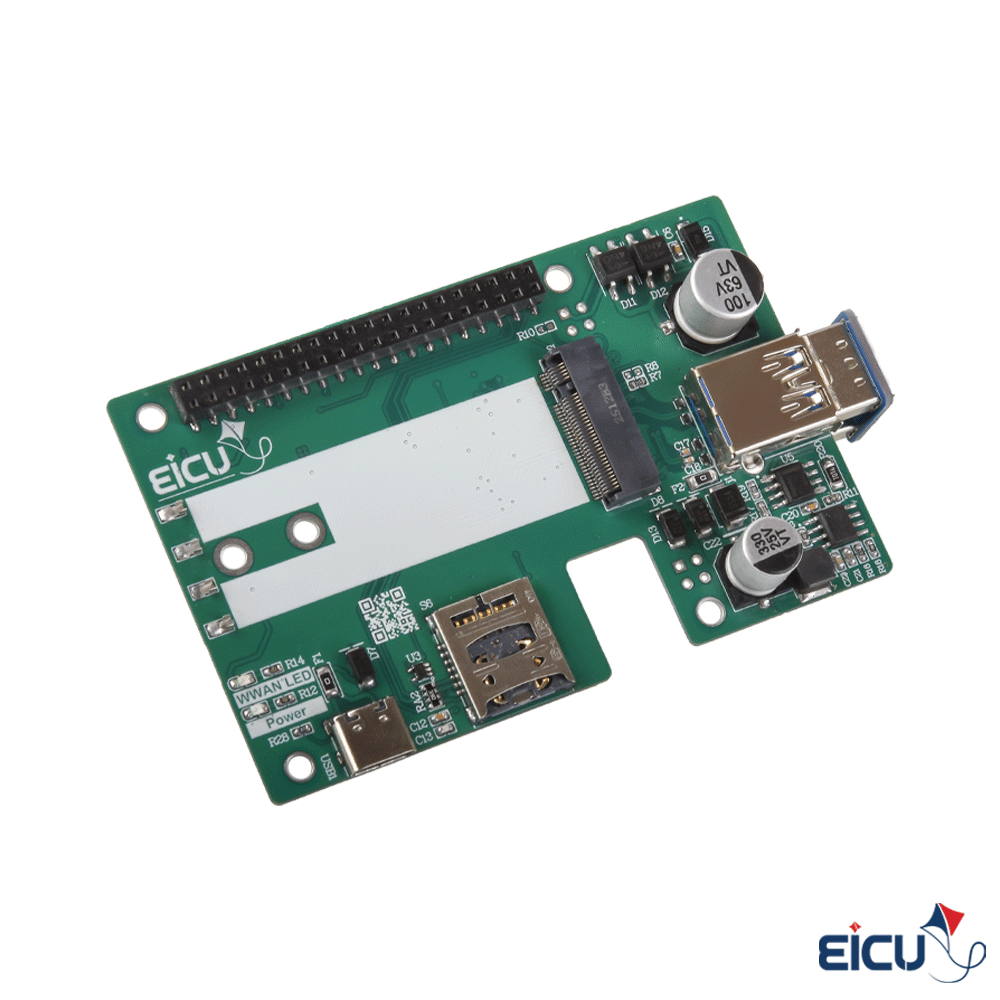

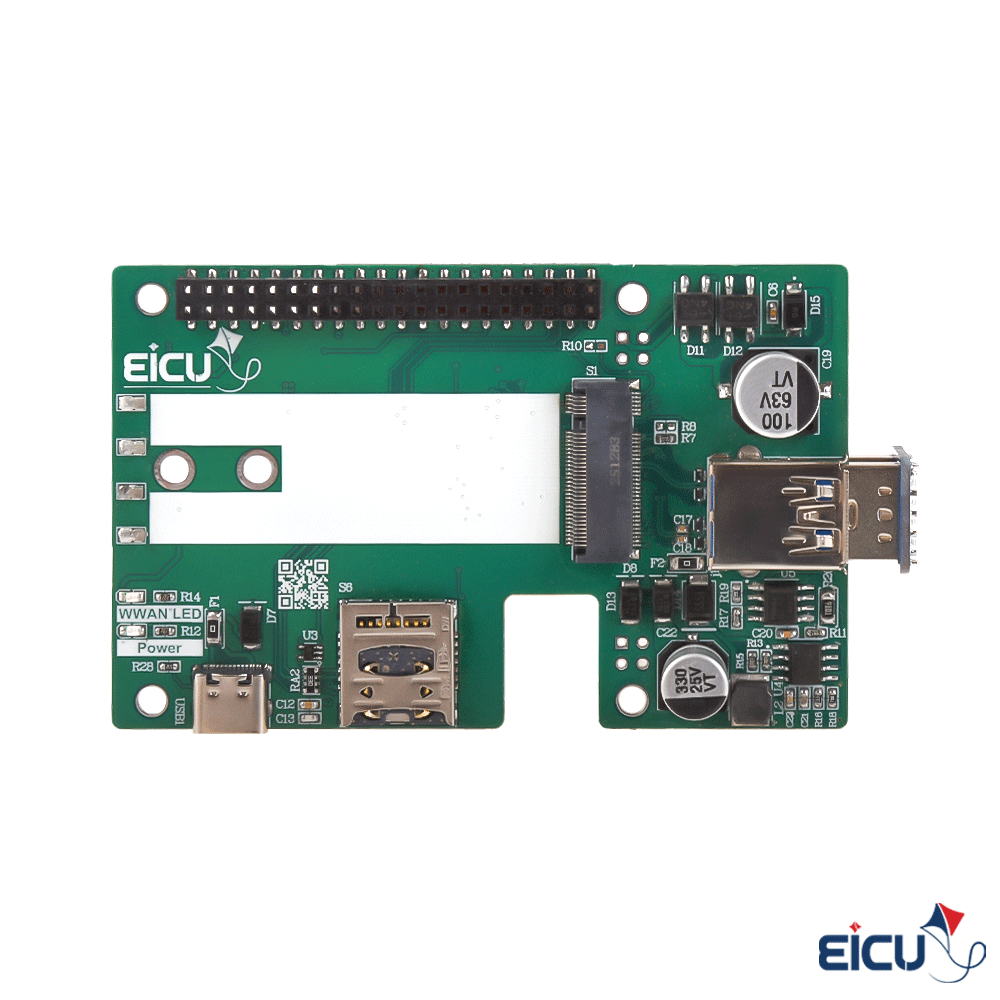

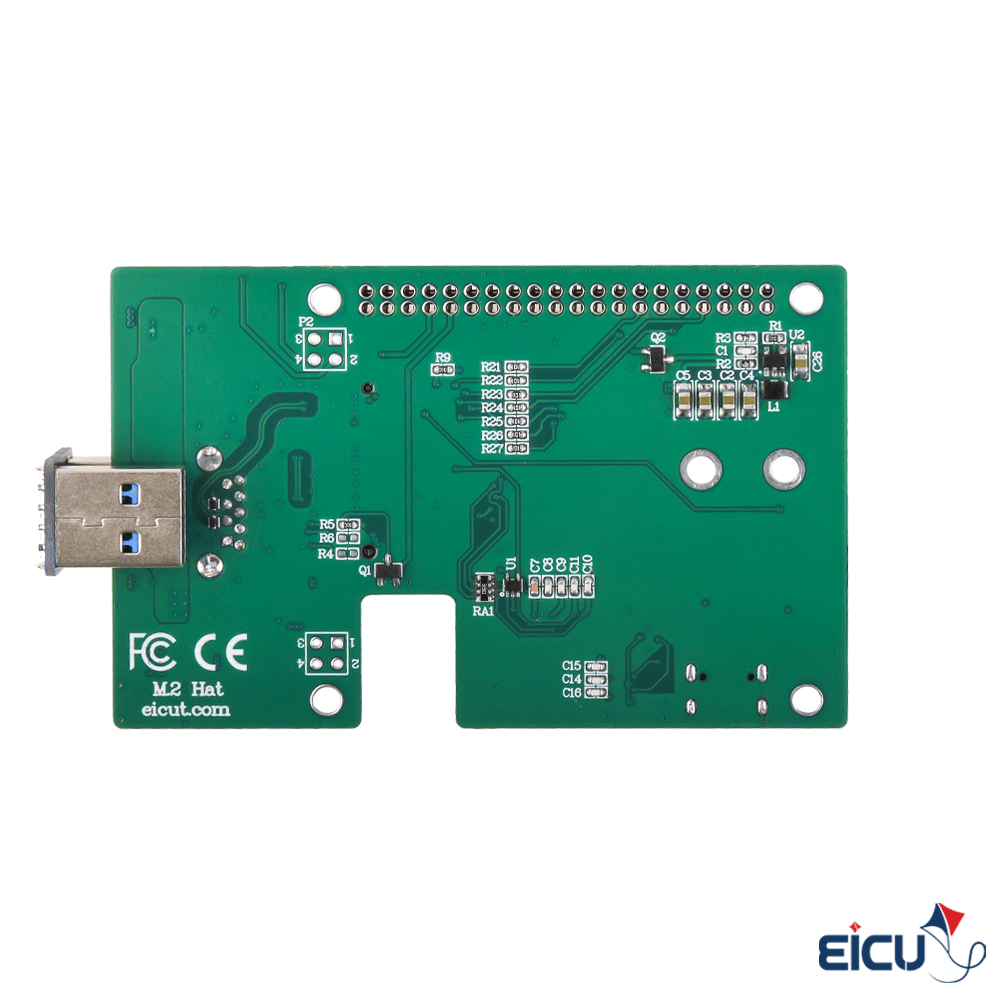

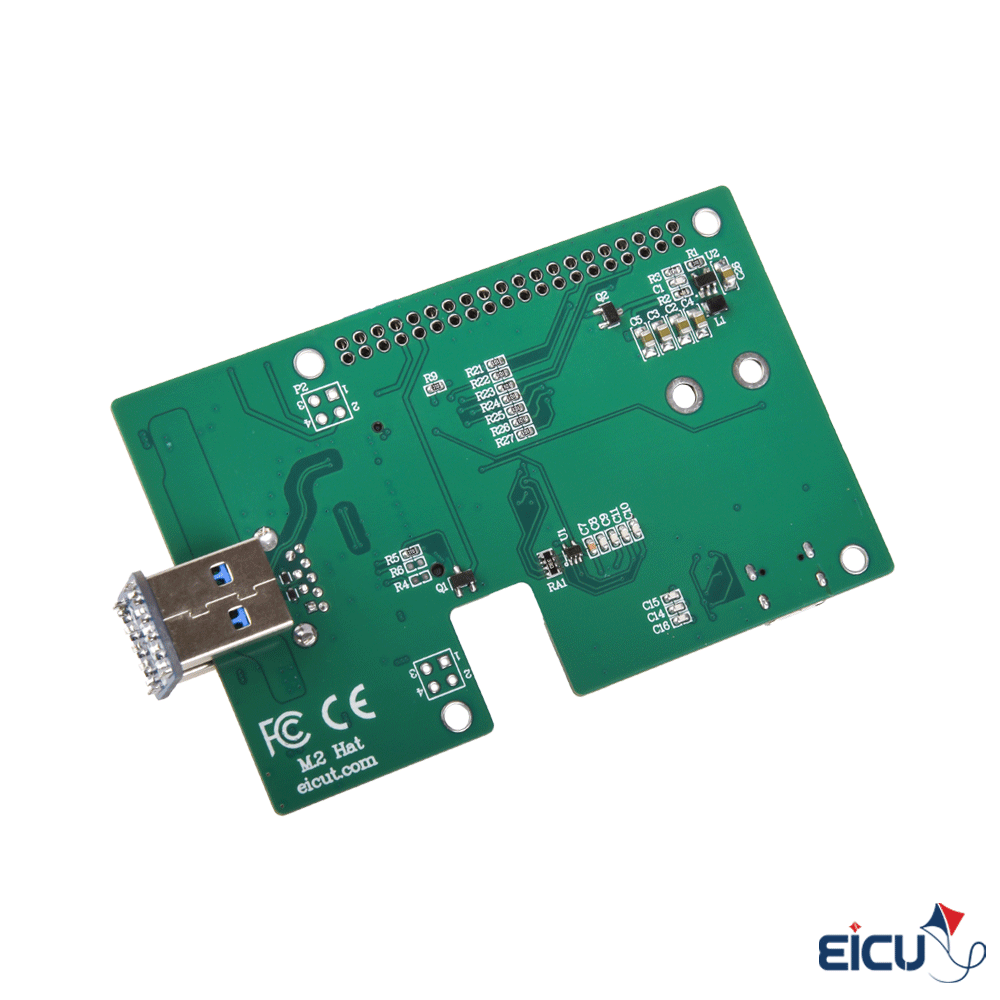

Raspberry Pi M.2 PoE HAT Overview
The Raspberry Pi M.2 PoE HAT is a versatile interface board designed for connecting M.2 modules and sharing data over USB. It follows the Raspberry Pi pinout for seamless integration, while also supporting standalone use or compatibility with other similar platforms. Processor interface pins are available for direct control of the M.2 module.
Raspberry Pi M.2 PoE HAT Features
- Dual SIM card socket
- Powerful 3A regulator for reliable M.2 module power supply
- Status LEDs for module activity indication
- USB Type-C connector for power input
- USB 3.0 Type-A socket for data sharing
- Power over Ethernet (PoE) Class 4 circuit compliant with IEEE 802.3af/at standard, providing up to 25.5 W of power to the board through a single Ethernet cable
Ideal Applications
- IoT Projects
- Industrial and Commercial Raspberry Pi Deployments
The Raspberry Pi M.2 PoE HAT combines reliable PoE power delivery, fast USB 3.0 connectivity, and full M.2 expansion in one professional-grade board — the perfect choice for advanced Raspberry Pi users and system integrators.
| SIM Card Socket | Micro SIM support for cellular modules |
|---|---|
| Regulator | 3A Powerful and reliable power supply for M.2 modules |
| Power Input Connector | USB Type-C |
| Data Sharing Connector | USB 3.0 Type-A |
| PoE Class | Class 4 IEEE 802.3af/at compliant, up to 25.5W through Ethernet cable |
