Cat 1
NEXUS-E0101N LTE Cat 1 IoT Modem
Availability:
10 in stock
- LTE Category 1: up to 10 Mbps download / 5 Mbps upload
- Supports all major European operators (unlocked)
- Optional GNSS positioning for tracking applications
- Single 10/100 Ethernet port + USB Type-C power & data
$ 22.5
10 in stock
NEXUS-E0101N LTE Cat 1 IoT Modem

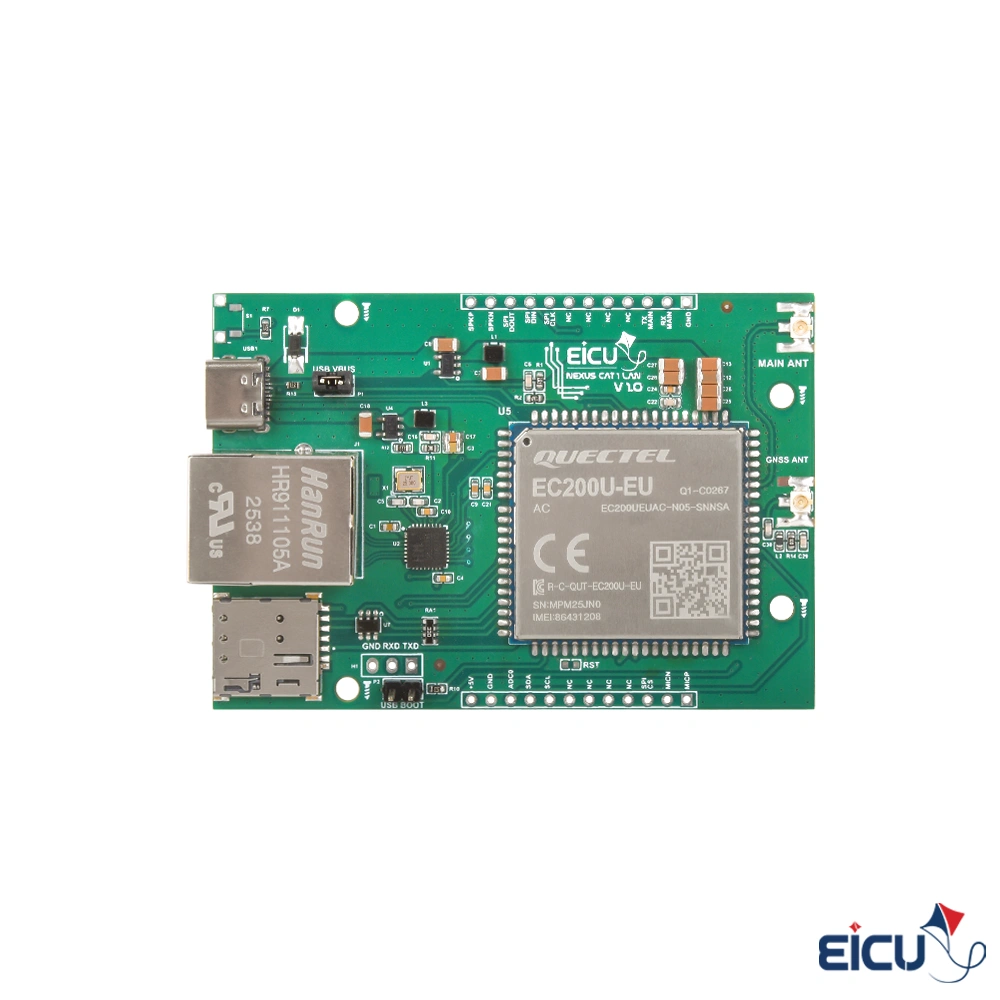

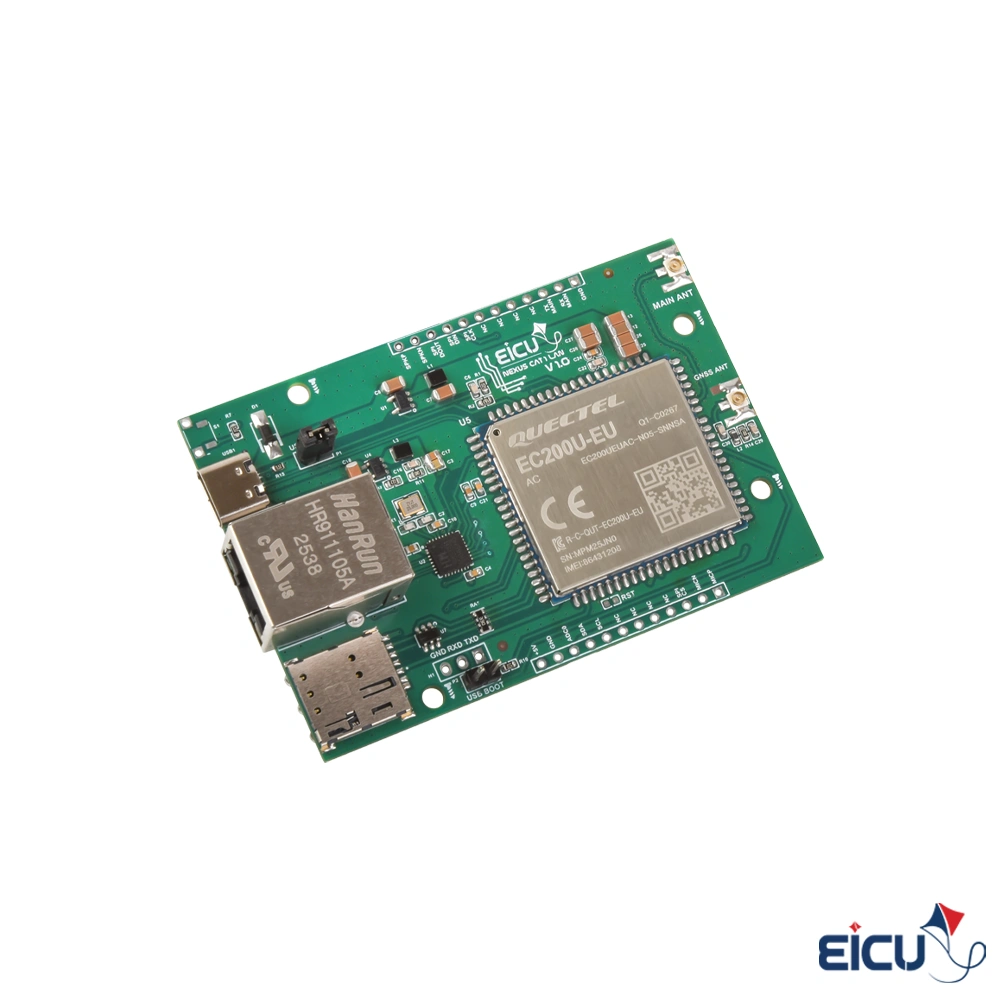

The NEXUS-E0101N is a compact, cost-optimized LTE Cat 1 cellular modem designed for always-on IoT connectivity where reliability and price matter more than high speed. Built around the Quectel EC200U-EU module, it delivers stable 4G LTE with automatic fallback performance in weak-signal areas, making it ideal for large-scale deployments.
Key Features
- LTE Category 1: up to 10 Mbps download / 5 Mbps upload
- Supports all major European operators (unlocked)
- Optional GNSS positioning for tracking applications
- Single 10/100 Ethernet port + USB Type-C power & data
- Web UI management + SMS support
- Compact board size (78 × 53 × 17 mm)
- Wide operating temperature: –10 °C to +60 °C
- Bulk customization available (antenna, voltage, I/O, board layout)
Technical Specifications
| Parameter | Value |
|---|---|
| Model | NEXUS-E0101N |
| Cellular Module | Quectel EC200U-EU (GNSS variant optional) |
| LTE Category | Cat 1 |
| Max Speed (DL / UL) | 10 Mbps / 5 Mbps |
| Frequency Bands | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8 |
| Operator Unlock | Yes (all operators) |
| SMS / USSD / VoLTE | Yes |
| Antenna Interface | U.FL / SMA |
| GNSS | Optional |
| LAN Ports | 1 × 10/100 Ethernet |
| SIM Card | Nano-SIM (4FF) |
| USB Port | USB Type-C |
| Power Input | 5 V DC via USB Type-C |
| Board Dimensions | 78 × 53 × 17 mm |
| Status LEDs | Yes |
| Operating Temperature | –10 °C to +60 °C |
| Web UI | Yes |
| Firmware Update | Yes |
| Static IP / VPN | No |
| Weak-Signal Fallback | Yes |
| Bulk Customization | Yes (board / antenna / voltage / I/O) |
Typical Applications
- IoT equipment and sensors
- Vending machines
- Cashless payment terminals
- LAN-connected POS systems
- Fleet and asset tracking (with optional GNSS)
Why Choose the NEXUS-E0101N?
It offers an economical solution for projects that need continuous cellular connectivity without the cost of higher-category modems. The combination of LTE Cat 1, multi-band support, SMS/USSD capability, and optional GNSS makes it a practical choice for both fixed and mobile IoT installations.
The NEXUS-E0101N provides a practical balance of performance, size, and cost for B2B IoT, vending, payment, and tracking projects that require reliable cellular connectivity.
The NEXUS-E0101N provides a practical balance of performance, size, and cost for B2B IoT, vending, payment, and tracking projects that require reliable cellular connectivity.
Downloads
| Cellular Module | Quectel EC200U-EU (GNSS variant optional) |
|---|---|
| LTE Category | Cat 1 |
| Max Speed (DL / UL) | 10 Mbps / 5 Mbps |
| Frequency Bands | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 |
| Operator Unlock | Yes (all operators) |
| SMS / USSD / VoLTE | Yes |
| Antenna Interface | U.FL / SMA |
| GNSS | Optional |
| LAN Ports | 1 × 10/100 Ethernet |
| SIM Card | Nano-SIM (4FF) |
| Power Input | 5 V DC via USB Type-C |
| Board Dimensions | 78 × 53 × 17 mm |
| Operating Temperature | –10 °C to +60 °C |
| Web UI | Yes |
| Weak-Signal Fallback | Yes |
| Bulk Customization | Yes (board / antenna / voltage / I/O) |
