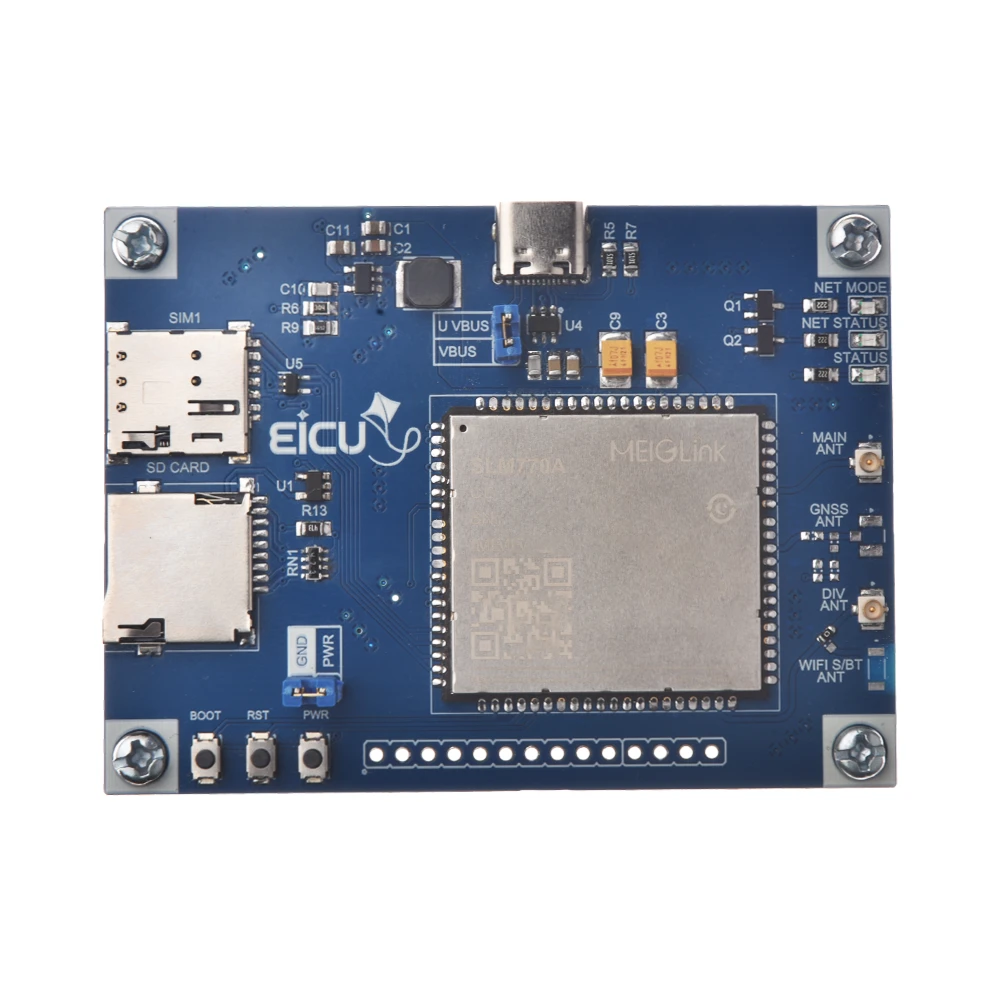

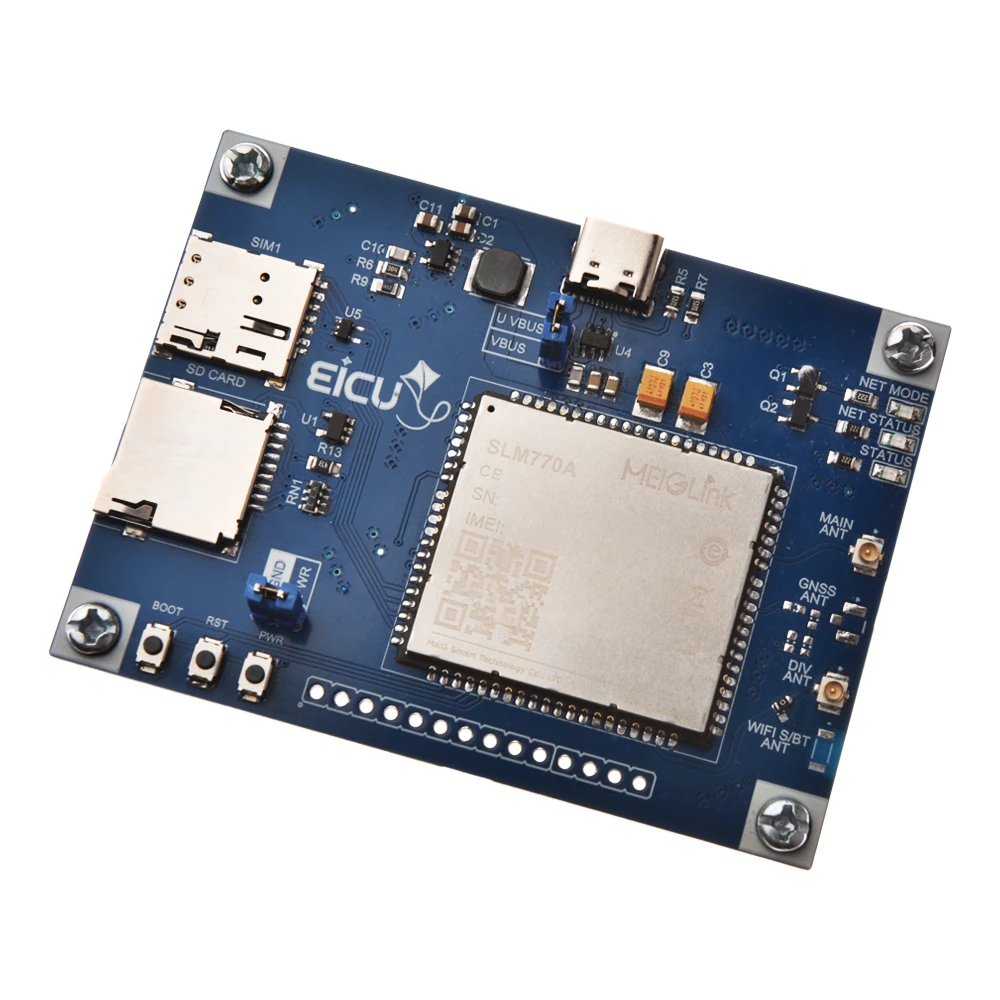

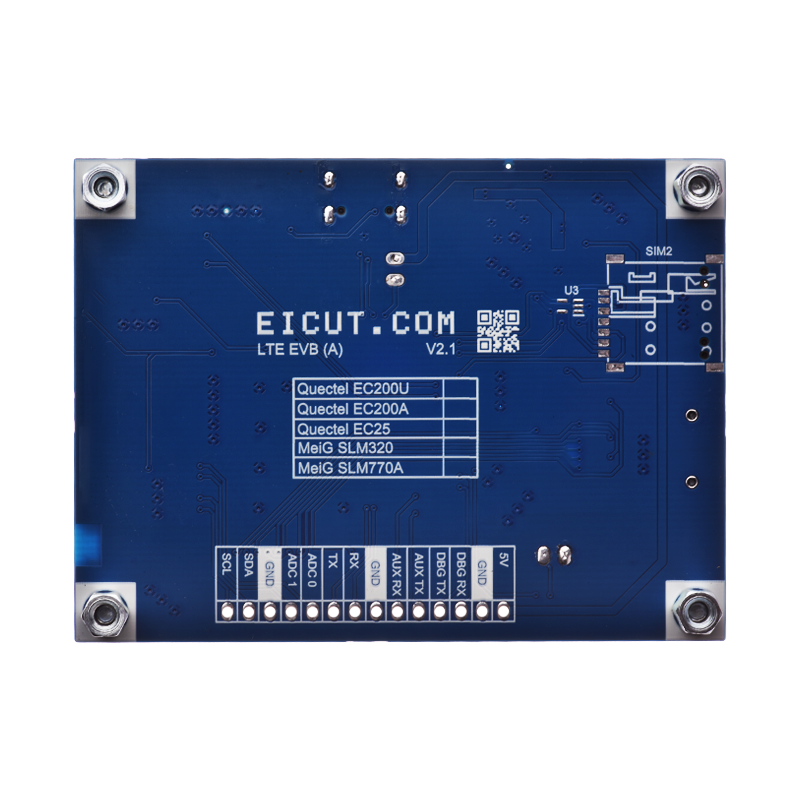

Accelerate Your Learning and Design Process with the SLM770A-CE Evaluation Board

Evaluation boards can greatly assist you in experimenting, testing, designing, and generally speeding up the learning and product design processes, freeing your mind from getting bogged down with peripheral technical issues. This educational board is designed for the SLM770A module from MeiGLink, allowing you to quickly set up the module and familiarize yourself with its capabilities.

Introduction to SLM770A Module

The SLM770A is the latest LTE Cat.4 wireless communication module introduced by MeiG Smart Technology Co., Ltd. This module supports a maximum downlink rate of 150Mbps and an uplink rate of 50Mbps, making it suitable for high-speed data transmission. It is designed to be compatible with existing 3G and 2G networks, ensuring reliable network communication even in remote areas.

Technical Specifications and Compatibility

The SLM770A module is built on the ASR1803 platform and is compatible with the SLM750, SLM790, and SLM320 modules in terms of packaging. This compatibility allows for seamless integration and upgrades in various applications.

Advanced Features

The SLM770A module supports diversity reception and MIMO (Multiple Input Multiple Output) technology, which optimizes data transmission speeds and enhances communication quality. It also supports a variety of dialing methods, including sliding PPP/ECM/TCP/UDP/DTSL/HTTP(S)/FTP(S)/MQTT(S), and comes with built-in network protocols.

Hardware Interfaces

The module is equipped with a rich set of hardware interfaces, including UART, I2C, PCM, SPI, and SDIO. These interfaces provide flexibility and ease of integration with various devices and systems.

Applications

The SLM770A module is widely used in a range of applications, including industrial routing, security monitoring, CPE (Customer Premises Equipment), vehicle DVR (Digital Video Recorder), and sharing devices. Its versatility and robust features make it a reliable choice for diverse communication needs.

Downloads

• SLM770A-module-specification_V1.4
• LTE_EVB_A Series Schematic
