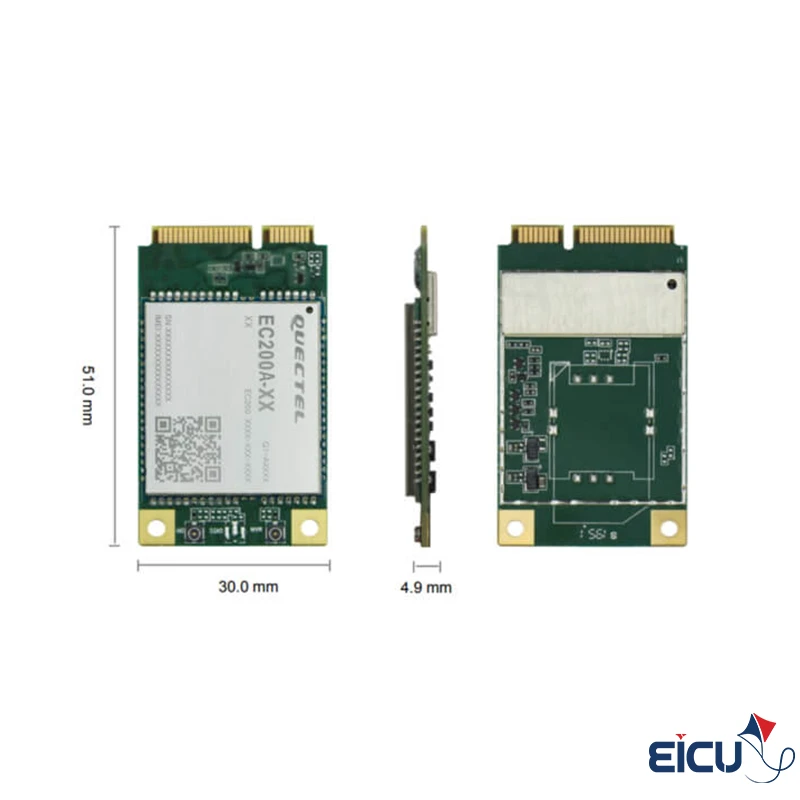

Front view of EC200A-EUHA Quectel Module

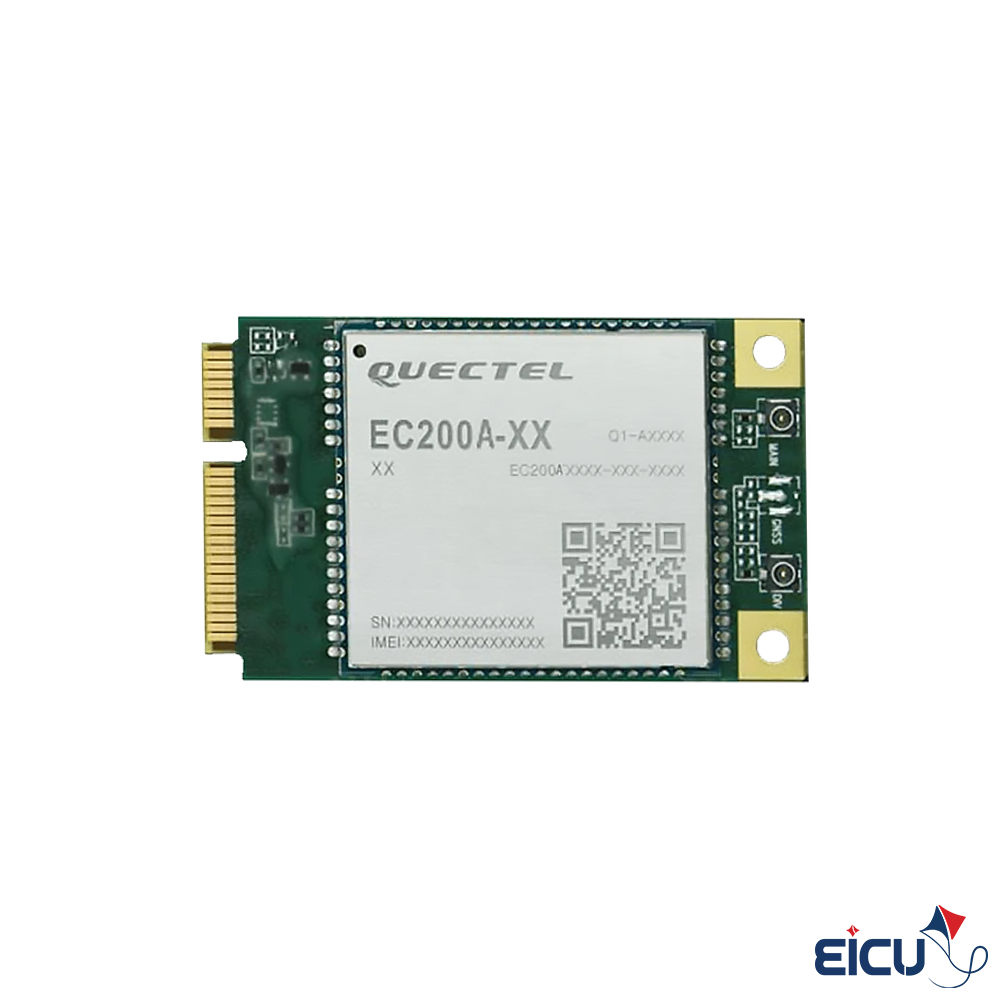

  1. Front view of EC200A-EUHA Quectel Module

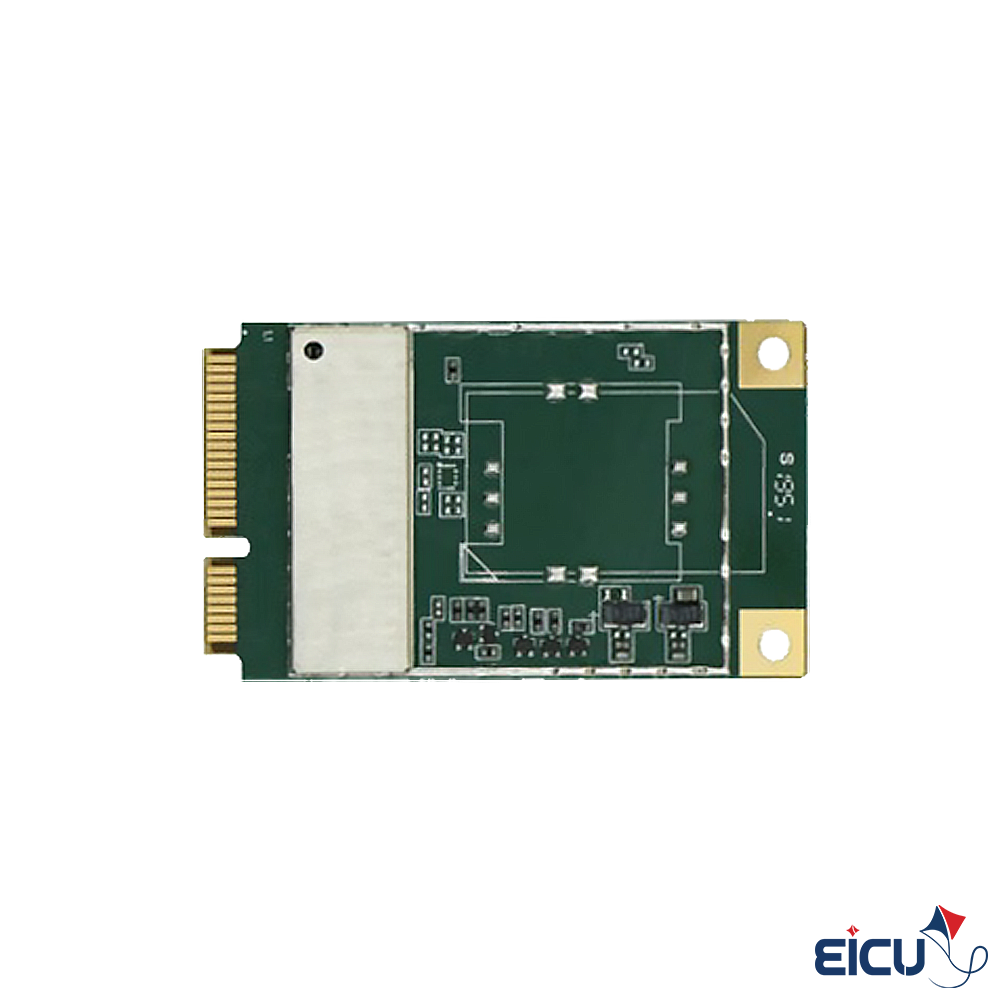

  2. Back view of EC200A-EUHA Quectel Module

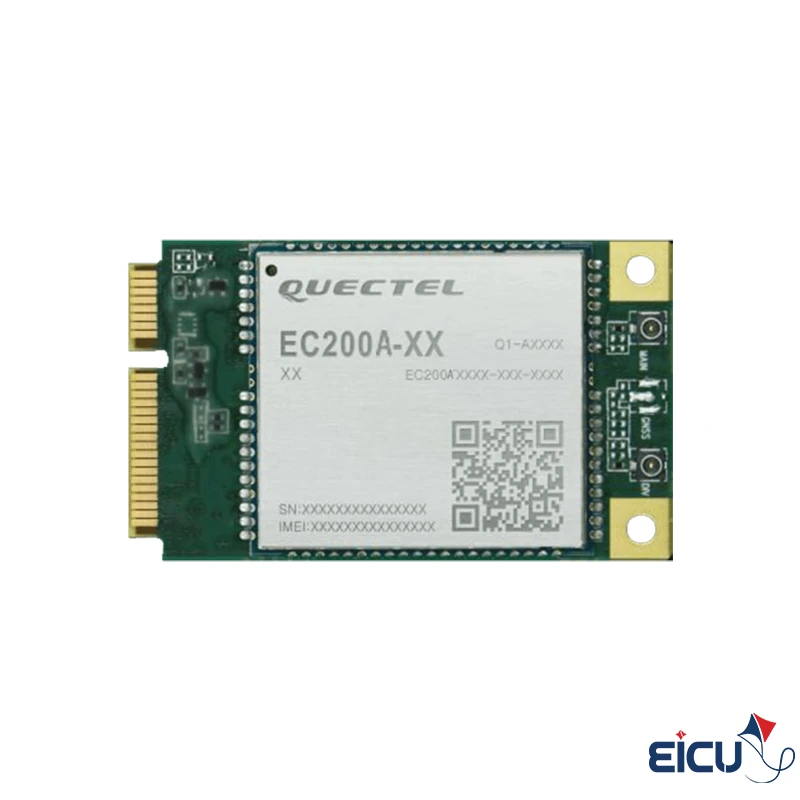

Front view of EC200A-EUHA Quectel Module
Back view of EC200A-EUHA Quectel Module

EC200A-EUHA MiniPCIe Quectel Module Supporting LTE Cat 4/GSM/GPRS/EDGE

Availability:

10 in stock
Add to favorites

  • ‌LTE Cat 4 module optimized for M2M and IoT applications
  • Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • Support Delta Firmware Upgrade Over-The-Air (DFOTA)
  • MIMO technology meeting demands for data rate and link reliability in modem wireless communication systems



$ 24.5

10 in stock

EC200A-EUHA Description

Quectel EC200A Series — an IoT/M2M-optimized LTE Cat 4 module built on 3GPP Rel.9 LTE technology. It provides peak data rates up to 150 Mbps downlink and 50 Mbps uplink, in a compact, unified LCC form factor. The module uses laser engraving for improved appearance, metallic texture, heat dissipation, and durable labeling.

EC200A-EUHA Features

  • Standard interfaces & Internet protocols for M2M/IoT integration
  • Category: LTE Cat 4 (3GPP Rel.9)
  • Max data rates: 150 Mbps downlink / 50 Mbps uplink
  • Multi-variant regional support: EC200A-CN, EC200A-EU, EC200A-AU (band coverage for different countries/regions)
  • Backward compatibility: GSM/GPRS/EDGE (works in areas without 4G/3G)
  • Compact LCC package with laser-engraved labeling (durability, heat dissipation)
  • Compatible form factor with Quectel EC25, EC21, EC20-CE, EG25-G, EC200U, UC200T families for easy design migration
  • Driver support: Windows (7/8/8.1/10), Linux, Android

Module Specifications



Category Parameter Value
General Region/Operator Europe, Asia-Pacific
Dimensions (mm) 29.0 × 32.0 × 2.4
Temperature Range Operating Temperature Range -35 °C to +75 °C
Extended Temperature Range -40 °C to +85 °C
Frequency Bands LTE-FDD B1/B3/B5/B7/B8/B20/B28
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
GSM/EDGE B3/B8
GNSS –
Regulatory Certifications CE / UKCA / RCM
Data Rates LTE-FDD (Mbps) 150 (DL) / 50 (UL)
LTE-TDD (Mbps) 130 (DL) / 30 (UL)
DC-HSPA+ (Mbps) 21 (DL) / 5.76 (UL)
WCDMA (kbps) 384 (DL) / 384 (UL)
EDGE (kbps) 236.8 (DL) / 236.8 (UL)
GPRS (kbps) 85.6 (DL) / 85.6 (UL)
Interfaces (U)SIM × 1
UART × 3 (main, debug, auxiliary①)
USB 2.0 × 1
Digital Audio (PCM) × 1
NET_STATUS × 1
NET_MODE × 1
ADC × 2
SDIO (for SD Card* and Wi-Fi* ) × 2
RESET_N × 1
PWRKEY × 1
RGMII/RMII × 1
Analog Audio Input/Output × 1 (Microphone and Headset)
SPI × 1
I2C × 1
Antennas × 2 (Primary and Rx-diversity Antennas)
Voice Features Speech Codec Modes:HR/FR/EFR/AMR/AMR-WB
Echo Algorithm Echo Cancellation/Noise Suppression
Voice Digital Voice and VoLTE (Voice over LTE)
Enhanced Features DTMF ●
DFOTA ●
Audio Playback/Audio Recording ●
QuecLocator® ●
QuecFile® ●
(U)SIM Card Detection ●
Electrical Supply Voltage Range 3.4–4.5 V, typ. 3.8 V
Power Consumption (Typical) 10 µA @ Power off
1.8 mA @ LTE Sleep (PF = 128)
1.2 mA @ LTE Sleep (PF = 256)
24 mA @ Idle

EC200A-EUHA Applications

  • Industrial router and MIFI devices
  • Industrial PDAs and rugged tablet PCs
  • Video surveillance systems
  • Digital signage
  • General M2M and IoT solutions requiring reliable LTE connectivity and easy hardware migration across Quectel module families
