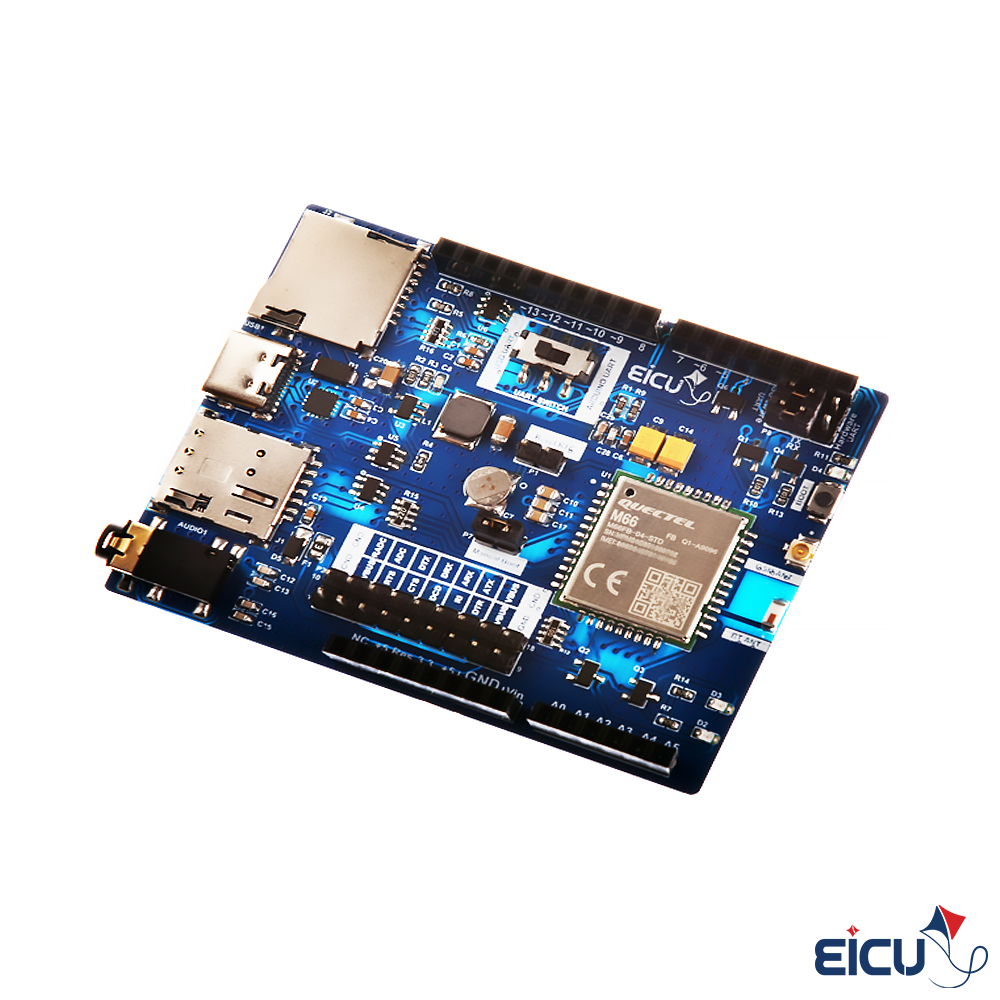

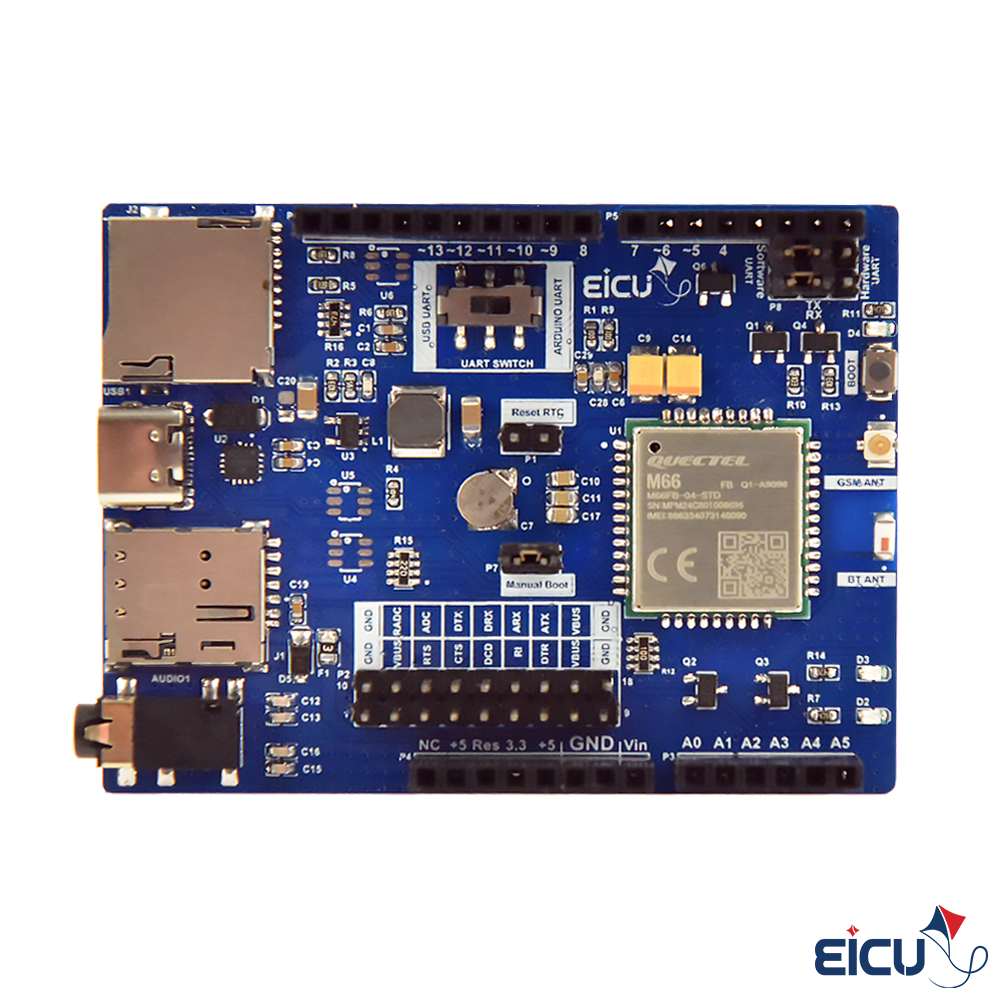

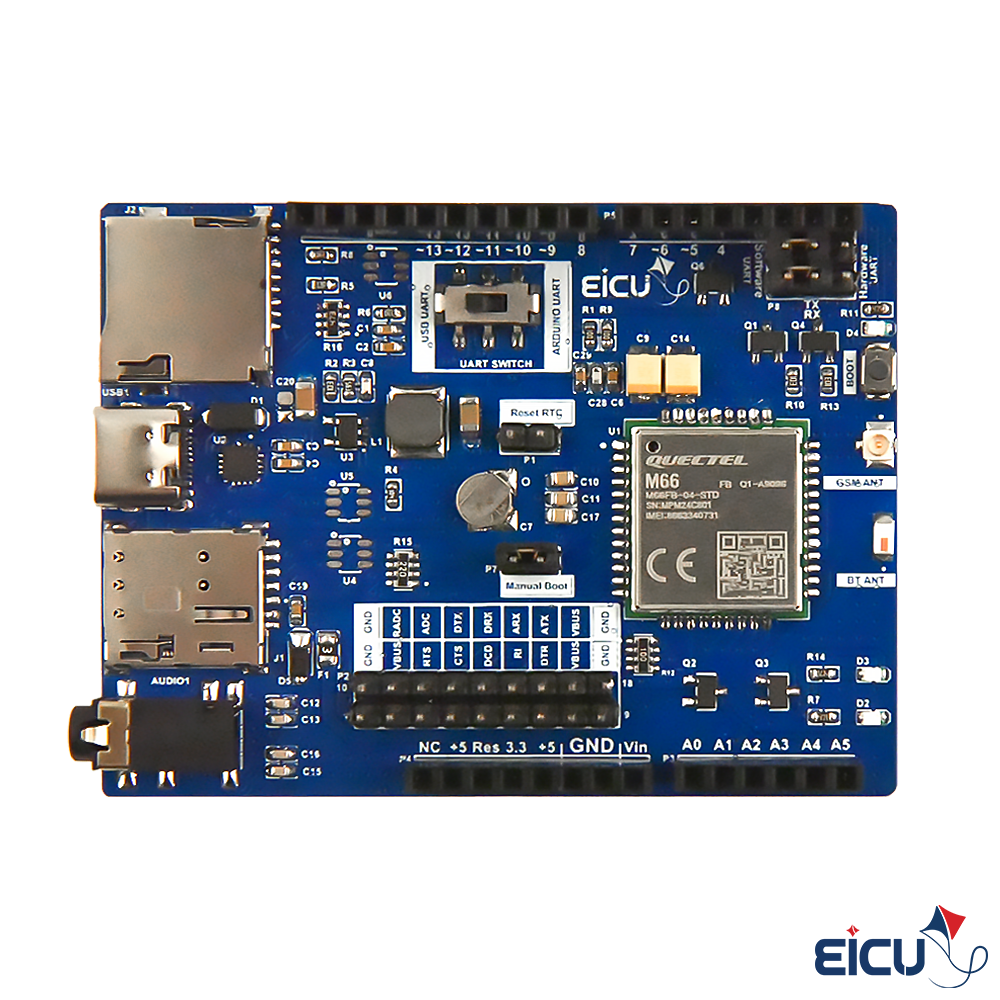

M66 Arduino Hat V1.0 Supporting quad-band GSM/GPRS/Audio/FOTA with Jamming Detection

M66 Arduino Hat Description

M66 is an ultra-small quad-band GSM/GPRS module that utilizes LCC castellation packaging. This module is designed to offer optimal performance in SMS & Data transmission and audio services, even in harsh environments. Its compact size of 15.8mm × 17.7mm × 2.3mm makes it an ideal choice for applications where space is a critical factor.

The M66 module employs surface mount technology, which enhances its durability and ruggedness. The low profile and small size of the LCC package ensure that the M66 can be easily integrated into size-constrained applications, providing reliable connectivity. This packaging is particularly well-suited for large-scale manufacturing processes that demand strict cost and efficiency requirements.

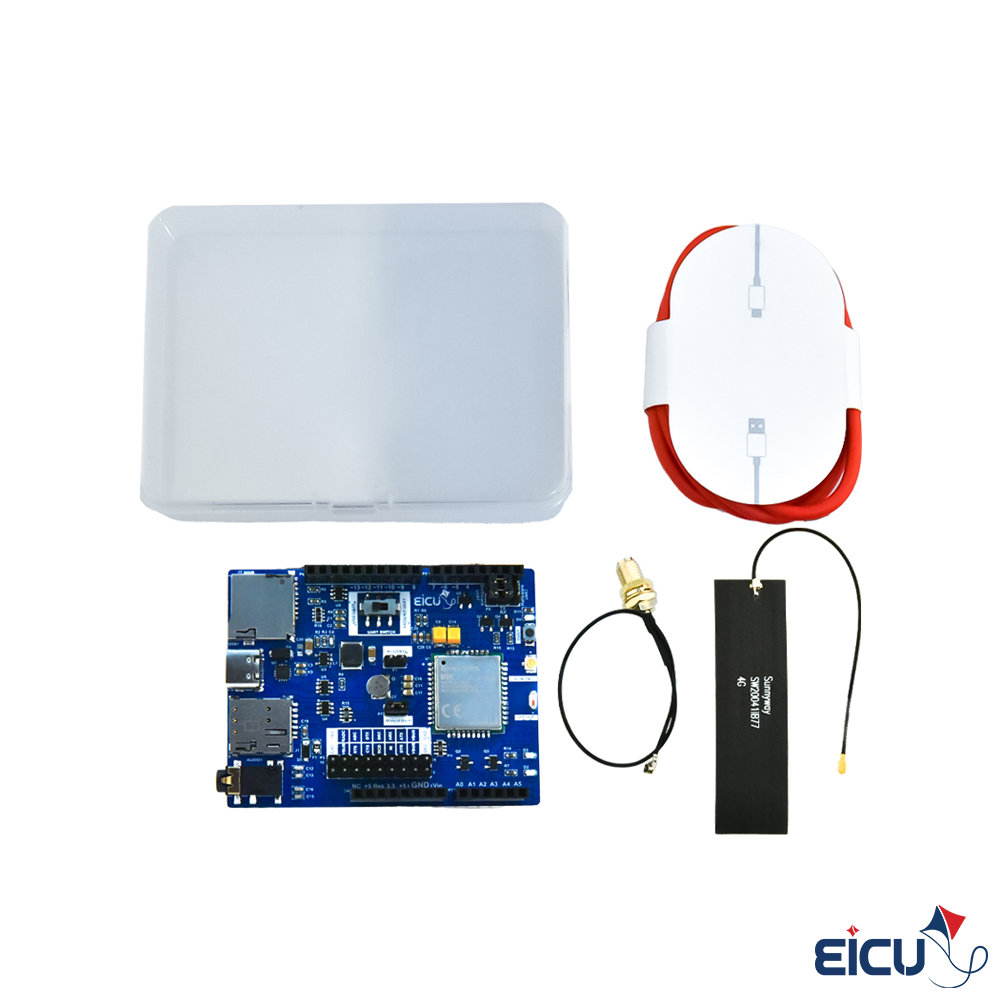

M66 Arduino Hat Included Items

• USB Type C cable, 1x
• GSM Antenna, 1x
• SMA to UFL Adapter Cable, 1x

M66 Arduino Hat Features

• Extremely compact quad-band GSM/GPRS module
• Easier soldering process with LCC package
• Power consumption as low as 1.3mA
• Support Voice, Bluetooth, QuecFOTATM and Quectel OpenCPU
• functions
• Embedded powerful Internet service protocols, multiple Sockets &
• IP addresses

M66 Module Specifications

M66 Arduino Hat Applications

The M66 module’s compact form factor, low power consumption, and extended temperature range make it an excellent choice for various Machine-to-Machine (M2M) applications. These include wearable devices, automotive systems, industrial PDAs, personal tracking devices, wireless POS systems, smart metering, telematics, and more.
