Eicut MT7628DAN Base Module Supporting 2.4GHz Wi-Fi/Ethernet
10 in stock
- Wi-Fi: 2.4 GHz IEEE 802.11b/g/n
- Ethernet: 5 × 10/100 Mbps ports
- Power Supply: 3.3V ±10%
- Operating Temperature: -20°C to +55°C
$ 12.5 $ 13.5
10 in stock

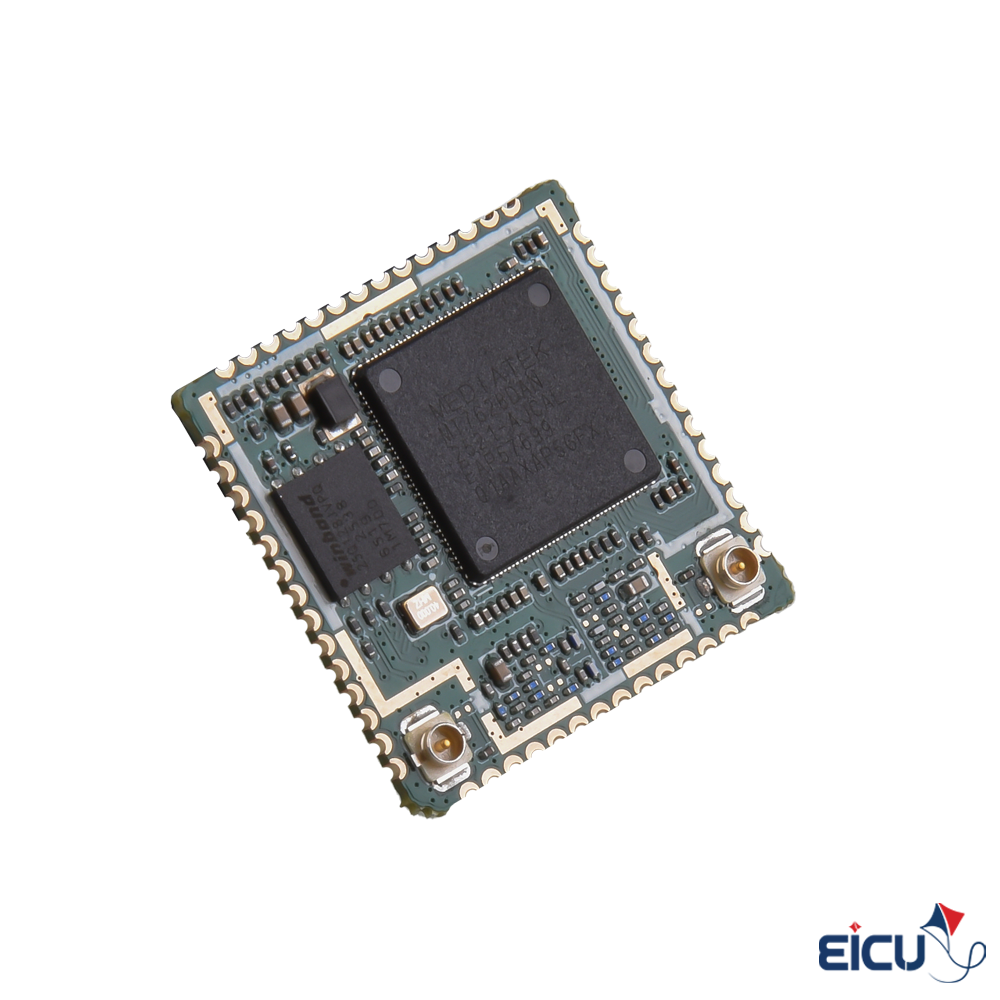

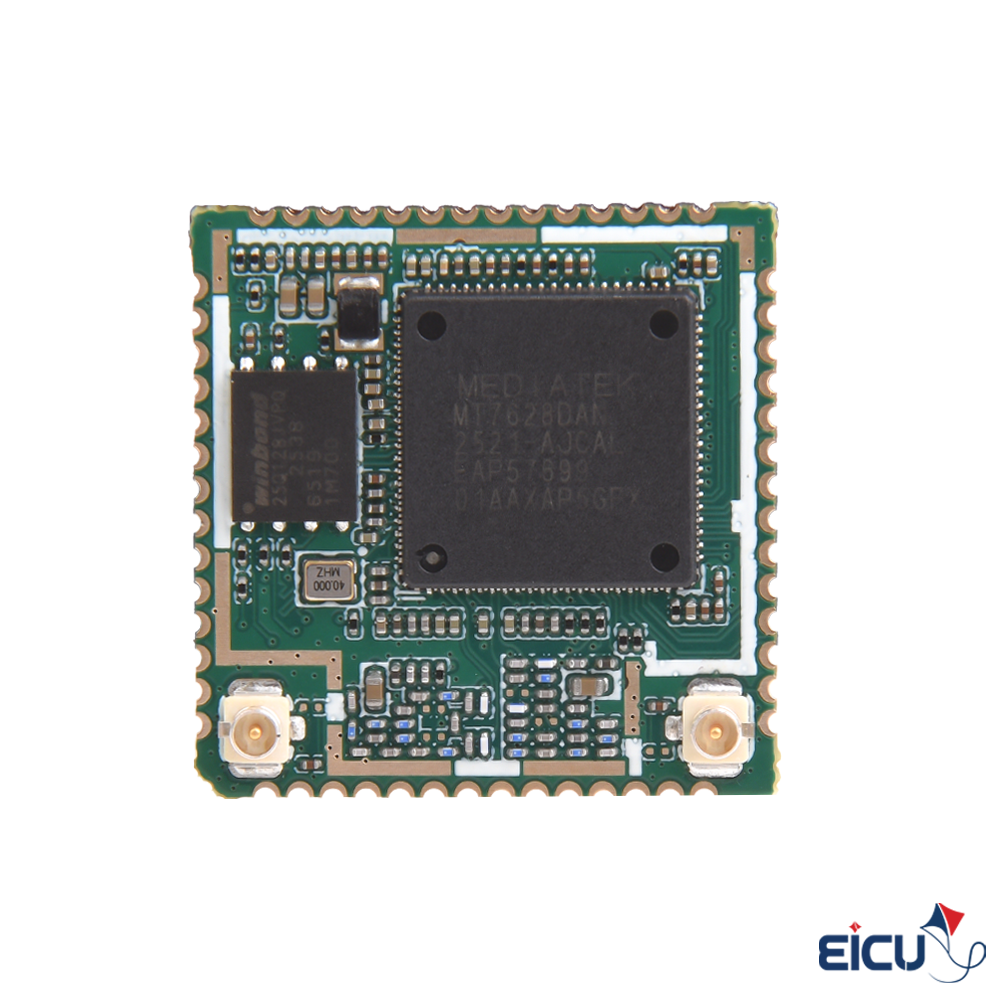

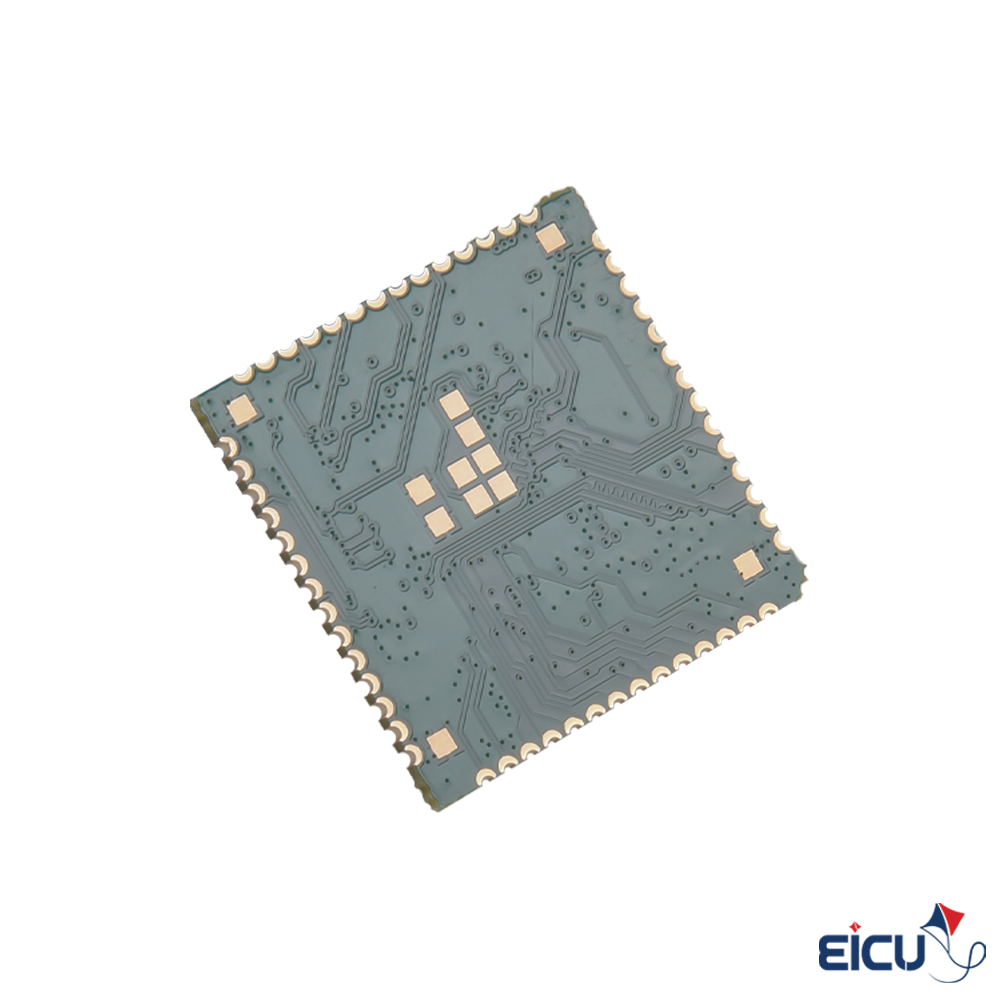

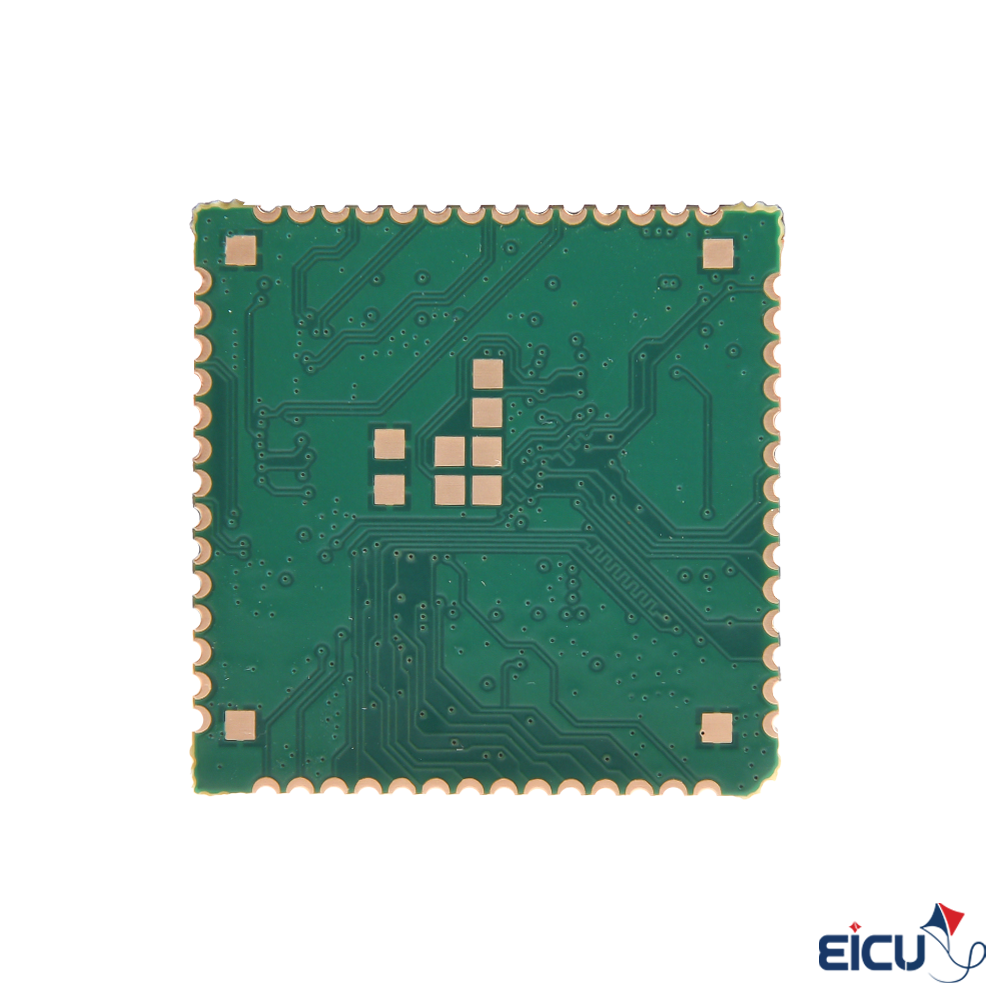

MT7628DAN Module Overview
The EICUT MT7628 Module is a compact, powerful, and fully integrated embedded networking platform based on the MediaTek MT7628 System-on-Chip (SoC). Designed for developers, engineers, and IoT enthusiasts, this module delivers excellent wireless and wired connectivity, making it an ideal choice for a wide range of networking and smart device applications.
Featuring built-in 2.4GHz Wi-Fi and a 5-port 10/100 Mbps Ethernet switch, the MT7628 module provides seamless connectivity for both wireless and wired environments. Its rich set of peripheral interfaces, including UART, SPI, I2C, I2S, USB, and PCIe, allows easy integration with sensors, displays, storage devices, audio components, and other peripherals.
MT7628DAN Module Features
- Powerful MediaTek MT7628 Processor: High-performance MIPS core optimized for networking tasks
- Integrated 2.4GHz Wi-Fi: Reliable wireless connectivity supporting Access Point (AP), Station, and Repeater modes
- 5-Port 10/100 Mbps Ethernet PHY: Built-in switch for advanced routing and gateway applications
- Dual Antenna Design: Support for ANT0 and ANT1 for improved signal strength and coverage
- Comprehensive Interfaces:
- Dual UART (UART0 & UART1)
- SPI, I2C, I2S (audio support)
- USB 2.0
- PCIe interface
- Multiple GPIO pins
- Flexible Boot Options: Bootstrap configuration pins for custom boot modes (SPI, JTAG, etc.)
- LED Control & Status Pins: WLED, LINK0–LINK4, WPS_RST_PBC for easy system monitoring
- Stable Power Supply: Operates at 3.3V with robust power management
- Compact & Easy to Integrate: Small form factor ideal for space-constrained embedded designs
Module DC Electrical Characteristics
| Parameter | Symbol | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| 3.3 V supply voltage (IO) | Vddc33 | — | 2.97 | 3.3 | 3.63 | V |
| 2.5 V supply voltage (DDR1) | Vdd25 | — | 2.375 | 2.5 | 2.625 | V |
| 1.8 V supply voltage (DDR2) | Vdd18 | — | 1.71 | 1.8 | 1.89 | V |
| 1.2 V supply voltage | Vdd12 | — | 1.08 | 1.2 | 1.32 | V |
| 3.3 V current consumption | Icc33 | — | — | — | — | mA |
| 1.5 V current consumption | Icc15 | — | — | — | — | mA |
| 1.2 V current consumption | Icc12 | — | — | — | — | mA |
| DDR2 Current | Icc18 | — | — | — | — | mA |
Ideal Applications
- IoT Gateways and Edge Devices
- Wireless Routers and Range Extenders
- Smart Home Hubs and Automation Systems
- Industrial Control and Monitoring Systems
- Networked Audio Devices
- OpenWrt / Linux-based Custom Firmware Projects
- Security Cameras and IP-based Solutions
Downloads
The EICUT MT7628 Module significantly reduces development time and complexity by integrating the processor, memory interface, Wi-Fi, and Ethernet PHY into one easy-to-use package. Whether you are creating a professional commercial product or working on an innovative IoT prototype, this module offers the performance, flexibility, and reliability you need.
| I/O supply voltage | 3.3 V ±/- 10% |
|---|---|
| DDR1 supply voltage | 2.5 V ±/- 5% |
| DDR2 supply voltage | 1.8 V ±/- 5% |
| Core supply voltage | 1.2 V ±/- 10% |
| Ambient Temperature Range | -20 to 55 °C |
| Dimension | 23.62*23.74 mm |
