MC60 Mini DB
Basic Overview #

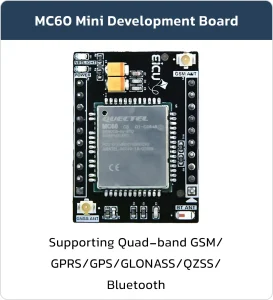

The MC60 Mini DB Is a compact and integrated module designed specifically to be used on products and save a lot of time handling GSM & GNSS power, RF circuits and etc.
Feature List #
- Quad-band GSM/GPRS support
- Integrated GNSS engine for satellite navigation
- Internet protocols: TCP, UDP, PPP, FTP, HTTP, SSL
- AlwaysLocate™ and GLP (GNSS Low Power) modes for accurate positioning with very low power consumption
- Built-in LNA for improved RF sensitivity and enhanced acquisition/tracking in weak-signal areas
- AT Commands: GSM 07.07, 07.05 and Enhanced AT Commands
Development Board Configuration #
The detailed assignment of the peripheral interfaces on the Development board is as follows:
| NO. | Name | Silkscreen | Comment |
|---|---|---|---|
| 1 | Sim card case | J1 | 4FF SIM Card 12.3 × 8 mm |
| 2 | External Bluetooth Antenna | BT ANT | Johanson Bluetooth Antenna |
| 3 | External GSM Antenna | GSM ANT | UFL Antenna |
| 4 | External GNSS Antenna | GNSS ANT | UFL Antenna |
| 5 | 10pin | P1-P2 | Header 2.54 mm |
The Development board has 2 functional indication LEDs, as follows:
- D1: NETLIGHT
- D2: Power indication LED
Development Board Dimensions #
Development Board Interfaces #

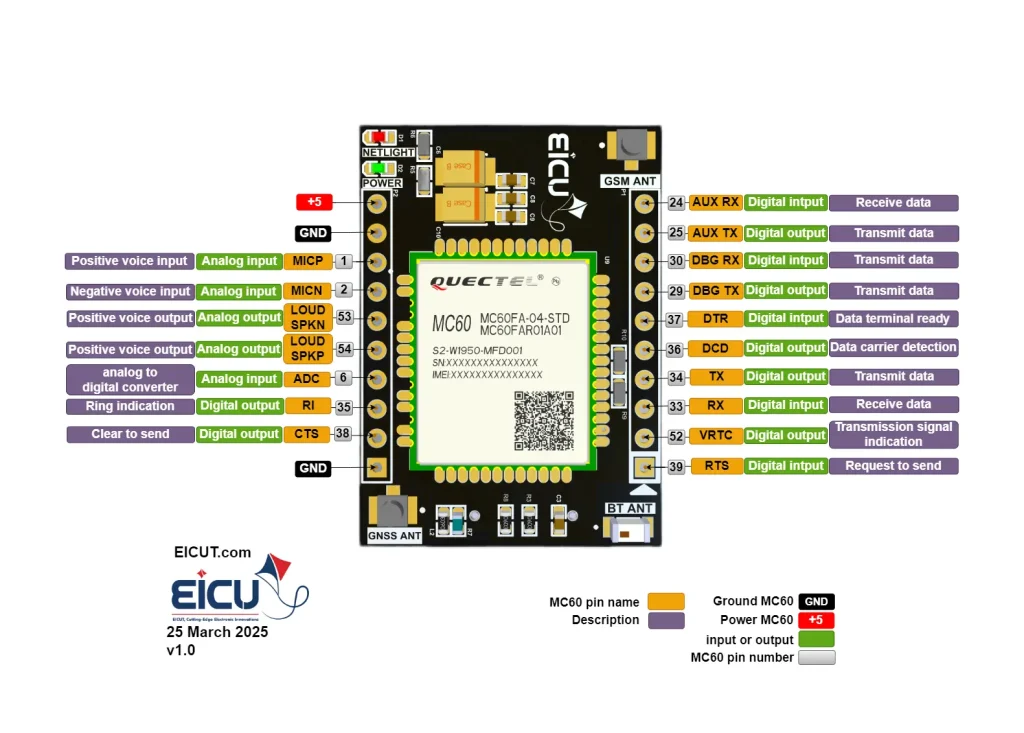

The main pin placement of the Development board is shown in the following figure:
MC60 Mini DB P1-P2 #
| NO. | Name | Silkscreen | Comment |
|---|---|---|---|
| P1‑1 | Request to send | RTS | You can use it as an output and input. |
| P1‑2 | VRTC | VRTC | Power supply for RTC when VBAT is not supplied for the system. Charging for backup battery or golden capacitor when VBAT is applied. For the allowed voltage and current values for this pin, see the bottom of the table. |
| P1‑3 | RXD | RX | Receive data |
| P1‑4 | TXD | TX | Transmit data |
| P1‑5 | DCD | DCD | Digital output |
| P1‑6 | DTR | DTR | Digital input |
| P1‑7 | DBG-TXD | DBGTX | Transmit data |
| P1‑8 | DBG-RXD | DBGRX | Receive data |
| P1‑9 | TXD-AUX | AUXTX | Transmit data |
| P1‑10 | RXD-AUX | AUXRX | Receive data |
| P2‑1 | Ground | GND | — |
| P2‑2 | CTS | CTS | Clear to send |
| P2‑3 | RI | RI | Ring indication |
| P2‑4 | ADC0 | ADC | General purpose analog to digital converter. Vmax=2.8V, Vmin=0V |
| P2‑5 | SPK1P | SPP | Channel 1 positive voice output |
| P2‑6 | SPK1N | SPN | Channel 1 negative voice output |
| P2‑7 | MICN | MICN | Negative voice input |
| P2‑8 | MICP | MICP | Positive voice input |
| P2‑9 | Ground | GND | — |
| P2‑10 | Power | +5 | Main power supply of module. Make sure that supply sufficient current in a transmitting burst typically rises to 1.6A. Vmax=4.8V, Vmin=5.5V |
VRTC pin voltage: VImax=3.3V, VImin=1.5V, VInorm=2.8V
VOmax=3V, VOmin=2V, VOnorm=2.8V IOmax=2mA Iin≈10uA
Getting Started Preparation #
Step 1: Install Qnavigator software.
https://www.quectel.com/download/qnavigator_v1-5/
Step 2: After installation Act like a software wizard.
Step 3: Connect the Development Board by USB to UART converter to the computer.(pin p1-3, p1-4)
(Download your driver type according to the USB-to-serial IC model)
Step 4: select your board in the port section, set the baudrate to 115200, and click Connect.
Step 5: Click on the gear and see if the module is connected.
Step 6: By entering AT Command, you can use different parts of the module.
Hint: make sure the power supply voltage is stable. The board to power up and turn on automatically without the need for a turn-off function.
