Introduction #

This document introduces the LTE (A) Series evaluation boards which is a high performance board to start working with many LTE modules that this product supports. This document can help to quicky understand features, interfaces, electrical characteristics and mechanical details of the supported products. This document is applicable to the variants and products listed on table 1.

Model Description EICUT Part NO.
EC200U-EU LTE Ser(A) Evaluation Board • Based on Quectel EC200UEUAB module
• LTE CAT1 2G, GNSS, Bluetooth
E0270
EC200A-EU LTE Ser(A) Evaluation Board • Based on Quectel EC200AEUHA module
• LTE CAT4 3G 2G, Diverse Antenna
E0260
EC25-EUX LTE Ser(A) Evaluation Board • Based on Quectel EC25EUX module
• LTE CAT4 3G 2G, Diverse Antenna
E0200
SLM320E LTE Ser(A) Evaluation Board • Based on MeiG Smart SLM320E module
• LTE CAT1 2G, GNSS, Bluetooth
E0675
SLM770A LTE Ser(A) Evaluation Board • Based on MeiG Smart SLM770A module
• LTE CAT1 / 2G / GNSS / Bluetooth
E0261

Product Overview #

General Description #

The LTE Series (A) EVB is a wireless communication development board that can be used for educational purposes or as a part of a final product. This board supports LTE-TDD and LTE-FDD, also it can support GNSS and Bluetooth due to the selected variant that was indicated on Table.

Key Features #

Feature Details
Power Supply • Supply voltage via USB-C or pin-header
• Voltage range: 4.5–5.5 V
• Typical: 5 V
Cellular Features • LTE-FDD & LTE-TDD support
• GSM/GPRS, Max. 85.6 kbps (DL) / 85.6 kbps (UL)
3G support for some variants
• SMS & Call support
GNSS • GPS / GLONASS / Galileo / BDS / QZSS constellations
• Available on EC200U, EC25, and SLM320E only
Bluetooth • Available on EC200U, EC25, and SLM320E only
Other Interfaces • USB 2.0 port (slave mode only)
• 14-pin header
• Nano SIM (USIM)
• SD Card
• U.FL antenna connectors
• LED indicators
• Power Key switch, Reset switch, BOOT switch
Physical Characteristics • Size: —
• Weight: —
Temperature Ranges • Operating: −35 °C to +75 °C
• Extended: −40 °C to +85 °C
• Storage: −40 °C to +90 °C
RoHS • All hardware components are fully compliant with EU RoHS directive

Interface Overview #

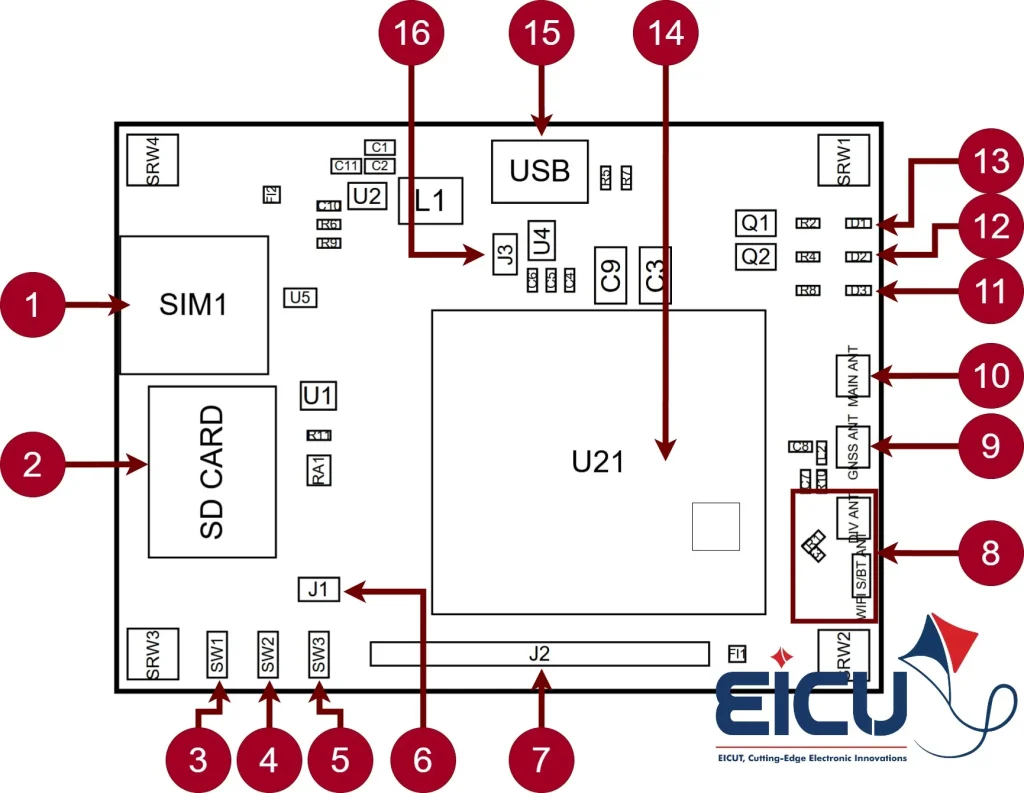

Following Figure indicates the interface definitions of the LTE Series(A) EVB series.











Board Definitions

Board Definitions #

Item NO. Interface Reference No. Description
1 Sim Card SIM1 Nano SIM connector; compatible with all USIMs.
2 SD Card SD CARD TF (Micro SD) card for data R/W via AT commands or Open CPU.
3 Push Button SW1 USB BOOT selection for flashing and debugging.
4 Push Button SW2 RESET option; connected to the module’s RESET pin.
5 Push Button SW3 POWER KEY to power up the LTE module; works only when the “J1” jumper cap is not present.
6 Jumper Cap J1 POWER KEY. When present, the module powers on when board power is applied.
14 Pin-Header J2 14-pin expansion I/O connector.
BT/Div Antenna Wi-Fi/BT or Div
  1. For EC25, EC200U, SLM320: connected to on-board Wi-Fi/BT SMD chip antenna.
  2. For EC200A, SLM770A: connected to IPEX UFL as diversity antenna.
GNSS Antenna GNSS ANT Active antenna IPEX-UFL; only for EC25, EC200U, SLM320.
Main Antenna MAIN ANT IPEX UFL for main cellular antenna connection.
LED D3 Connected to STATUS pin on LTE module (active-low).
LED D2 Connected to NET STATUS pin on LTE module (active-high).
LED D1 Connected to NET MODE pin on LTE module (active-high).
LTE Module U21 Main LTE module.
USB TYPE-C USB Used for both power supply and USB device data with the LTE module.
Jumper Cap J3 Connected to the module’s VBUS pin; enables/disables the module’s USB device.

LTE Series (A) Accessories #

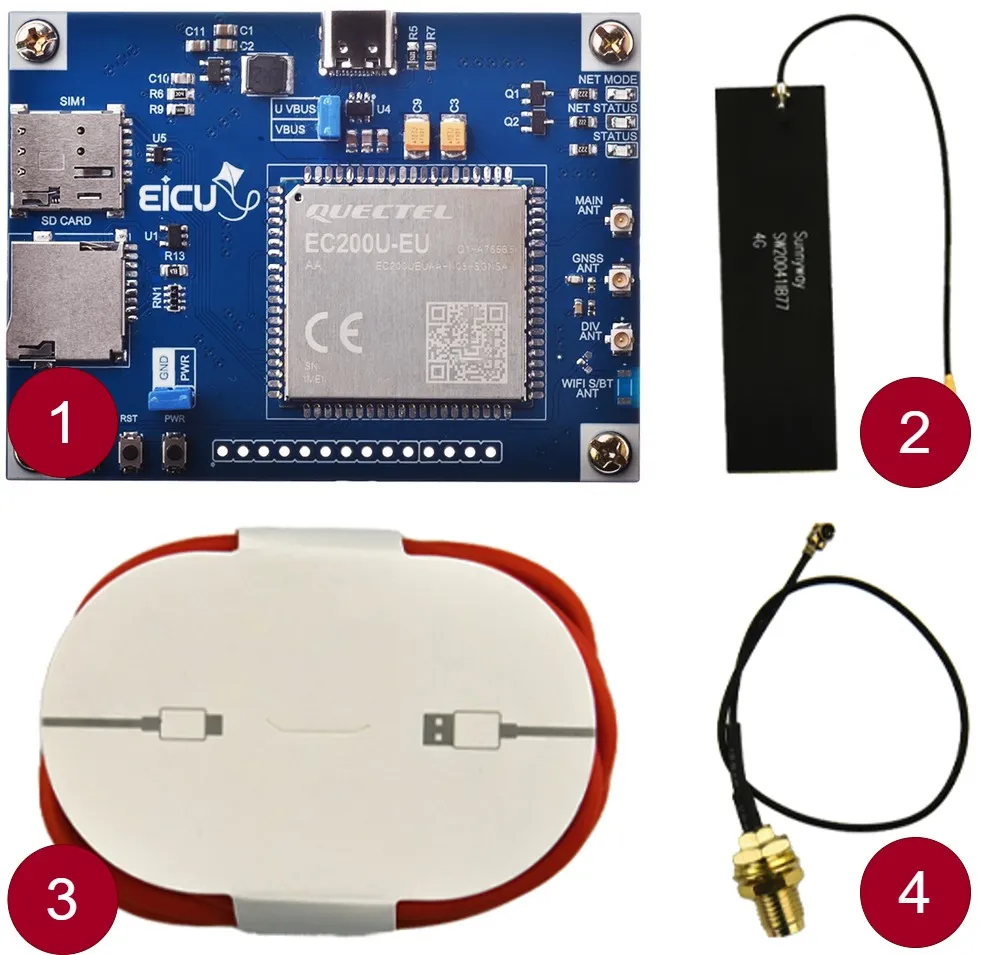

The following figure indicates the accessories on the LTE Series(A) EVB package.

LTE Series(A) EVB package

Development Board Dimension #

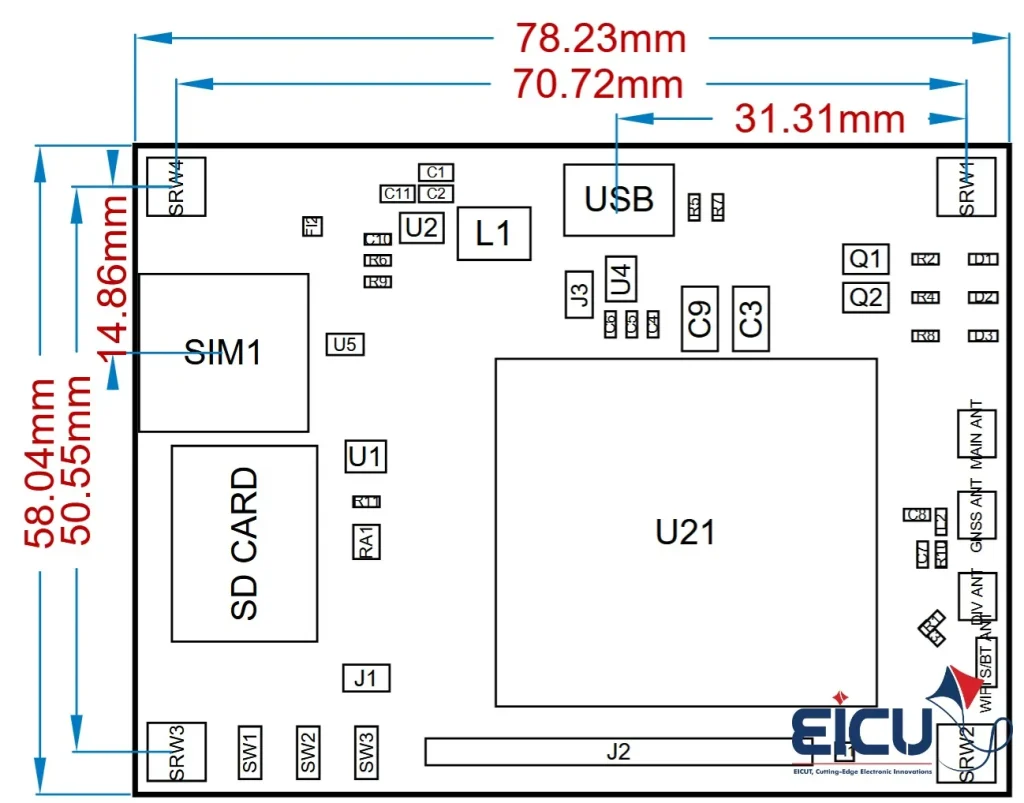

The following Figure indicates the dimensions of the LTE Series(A) EVB.

LTE Series(A) EVB



Dimension and Package #

Item Description
Dimensions 58.04 × 78.23 mm
G.W Weight 0.12 KG

FAQ #

What modules are supported by the LTE Series (A) Evaluation Board?
+

Quectel EC200U-EU, EC200A-EU, EC25-EUX, MeiG SLM320E and SLM770A modules are fully supported on the same EVB platform with minor differences in antennas and features.

How to power the LTE Series (A) EVB?
+

You can power the board via USB-C (recommended) or through the 5V pin on the 14-pin header. Accepted voltage range is 4.5–5.5 V (typical 5 V).

Which modules support GNSS and Bluetooth?
+

GNSS and Bluetooth are available on EC200U-EU, EC25-EUX, and SLM320E variants. EC200A-EU and SLM770A do not include GNSS/BT.

How to turn on the LTE module?
+

Two ways:
• Place the J1 jumper cap → module powers on automatically when 5 V is applied.
• Remove J1 jumper and press the POWER KEY (SW3) button for ~1 second.

What are the LED indicators for?
+

D1 (NET MODE): Indicates current network technology (LTE/3G/2G)
D2 (NET STATUS): Shows registration status (blinking = searching, solid = registered)
D3 (STATUS): Module powered on (active-low)

Can I use an external cellular antenna?
+

Yes. The board has MAIN ANT (required) and DIV ANT (diversity, only on EC200A & SLM770A) U.FL connectors. You can also use the onboard SMD antenna on EC200U/EC25/SLM320E models for BT/Wi-Fi.

Is USB used only for power or also for data?
+

Both. The USB-C port provides power and exposes the module’s USB 2.0 device interface (AT commands, firmware upgrade, virtual COM ports). Keep J3 jumper installed for normal USB operation.

How to enter USB Boot / DFU mode for flashing?
+



Hold the SW1 (BOOT) button while powering the board (or press RESET while holding BOOT). The module will enter USB Download / DFU mode for QFlash or Quectel/MeiG upgrade tools.

What is the operating temperature range?
+

Normal operating: −35 °C to +75 °C
Extended range: −40 °C to +85 °C
Storage: −40 °C to +90 °C

What are the board dimensions?
+

Board size: 58.04 × 78.23 mm — compact and easy to integrate into final products.
