What is LoRa?
LoRa, short for Long Range, is a proprietary wireless modulation technology developed by Semtech. It operates based on Chirp Spread Spectrum (CSS)—a technique originally designed for military and space applications to deliver ultra-long-range communication with exceptional noise resilience. LoRa enables devices to transmit and receive data with extremely low power consumption over unlicensed frequency bands (such as 433 MHz, 868 MHz, or 915 MHz, depending on the region).
By combining extended range, minimal energy use, and robust performance in challenging environments, LoRa has become a cornerstone of modern Internet of Things (IoT) networks. However, LoRa itself is not a complete communication protocol; it primarily serves as the physical layer. When paired with higher-layer protocols like LoRaWAN, it evolves into a comprehensive solution for long-range, low-power connectivity.
What is LoRaWAN?
LoRaWAN is a dedicated protocol for Low-Power Wide-Area Networks (LPWAN), also pioneered by Semtech. What sets LoRaWAN apart is its ultra-low energy consumption and remarkable range—often outperforming other LPWAN technologies.
Another standout feature is its high resistance to noise and interference, thanks to a modulation scheme rooted in military-grade technology. To put its capabilities into perspective: In 2017, a LoRaWAN packet achieved a record-breaking transmission distance of 702 kilometers!
These unique attributes make LoRaWAN an ideal choice for a wide array of IoT applications. The protocol is managed and advanced by the LoRa Alliance, an open, non-profit consortium comprising leading equipment manufacturers, service providers, and public institutions.
Whether you’re building smart cities, precision agriculture, or industrial monitoring systems, LoRa and LoRaWAN deliver reliable, scalable, and cost-effective connectivity. Ready to explore LoRa for your next project? Dive deeper into the ecosystem today!
The Difference Between LoRa and LoRaWAN
LoRa and LoRaWAN are often confused, yet each serves a distinct role and purpose. To fully leverage this unique communication solution, you need both—LoRa is essentially a core component of LoRaWAN.
At its heart, LoRa represents the physical layer of the network, handling the wireless modulation that enables devices to establish ultra-long-range connections. Most conventional wireless systems rely on traditional modulation techniques like FSK (Frequency Shift Keying). In contrast, LoRa is built on CSS (Chirp Spread Spectrum)—a technology originally developed for military and space applications to create an LPWAN (Low-Power Wide-Area Network) with exceptional range and interference resistance.
Here’s the fascinating part: Both CSS and FSK are energy-efficient, but CSS dramatically extends communication range.
LoRa can be seen as a proprietary, enhanced version of CSS, empowering IoT network operators to trade data rates for greater range (a critical feature!) or optimize power consumption. This flexibility allows tailored performance based on specific conditions and requirements.
Understanding this distinction unlocks efficient, scalable deployments. LoRa provides the robust “radio” foundation, while LoRaWAN adds the “network rules” for secure, managed connectivity. Together, they power everything from smart agriculture to industrial monitoring.

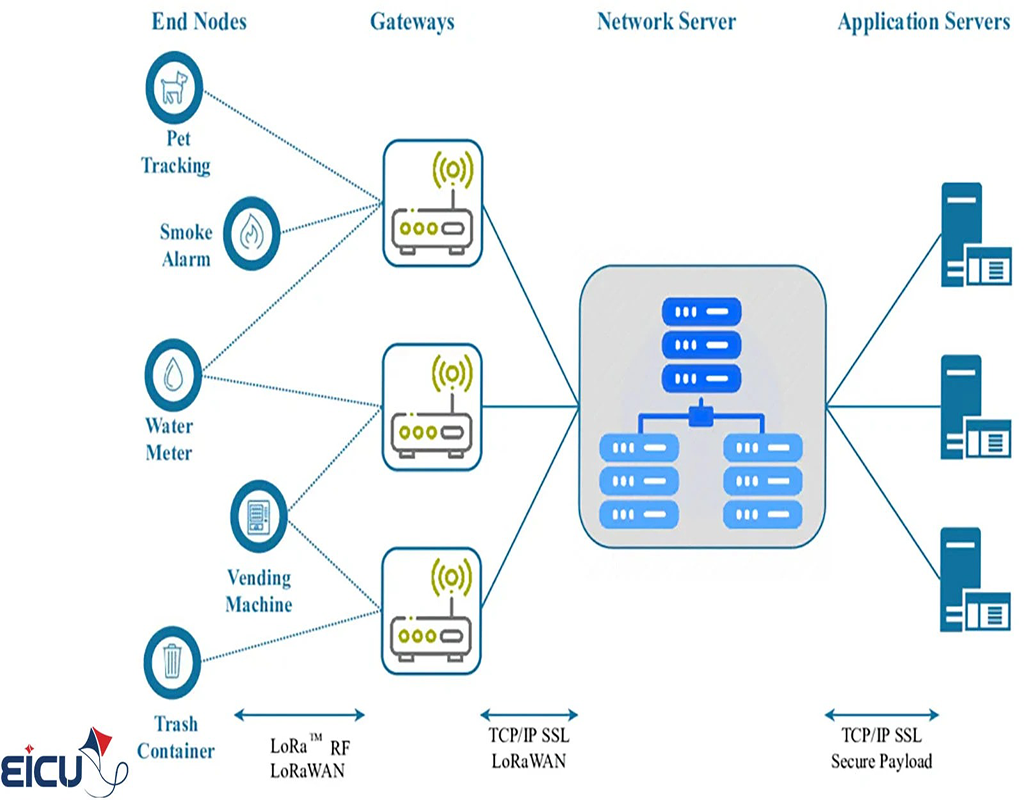

LoRa and LoRaWAN Architecture
The architecture of LoRa and LoRaWAN is elegantly layered, separating the physical layer (handled by LoRa) from the network and application layers (managed by LoRaWAN). This modular design ensures scalability, efficiency, and low-power operation across vast IoT deployments.
The LoRa Physical Layer
LoRa is responsible for wireless signal modulation, leveraging Chirp Spread Spectrum (CSS) to enable data transmission over extreme distances—even in noisy or challenging environments. This foundational layer forms the bedrock of long-range, resilient connectivity, allowing devices to communicate with minimal power while penetrating obstacles like buildings or terrain.
The LoRaWAN Network Layer
Acting as the higher-layer protocol, LoRaWAN orchestrates communication between end nodes, gateways, and the network server. It typically employs a star topology: Each node broadcasts data to all gateways within range, which then forward packets—unchanged—to the network server for processing.
The Power of Layer Separation
This clean separation shifts complex tasks—like data processing, security encryption, and duplicate packet elimination—to the network server, where ample power and computational resources are available. End devices remain lightweight and energy-efficient, extending battery life to years.
By decoupling robust radio transmission (LoRa) from intelligent network management (LoRaWAN), the system achieves unmatched flexibility. Whether deploying smart meters, environmental sensors, or asset trackers, this setup minimizes device complexity while maximizing coverage and reliability.
Ready to architect your own LoRaWAN network? Start with certified modules and gateways—explore the LoRa Alliance ecosystem now!
Power Consumption and Battery Life
This architecture minimizes energy use through extended node sleep modes and intermittent wake-ups, dramatically extending battery life while maintaining reliable urban and rural coverage. Devices can operate for years—or even a decade—on a single coin cell, making LoRaWAN perfect for remote, hard-to-access deployments.
How Does LoRaWAN Work?

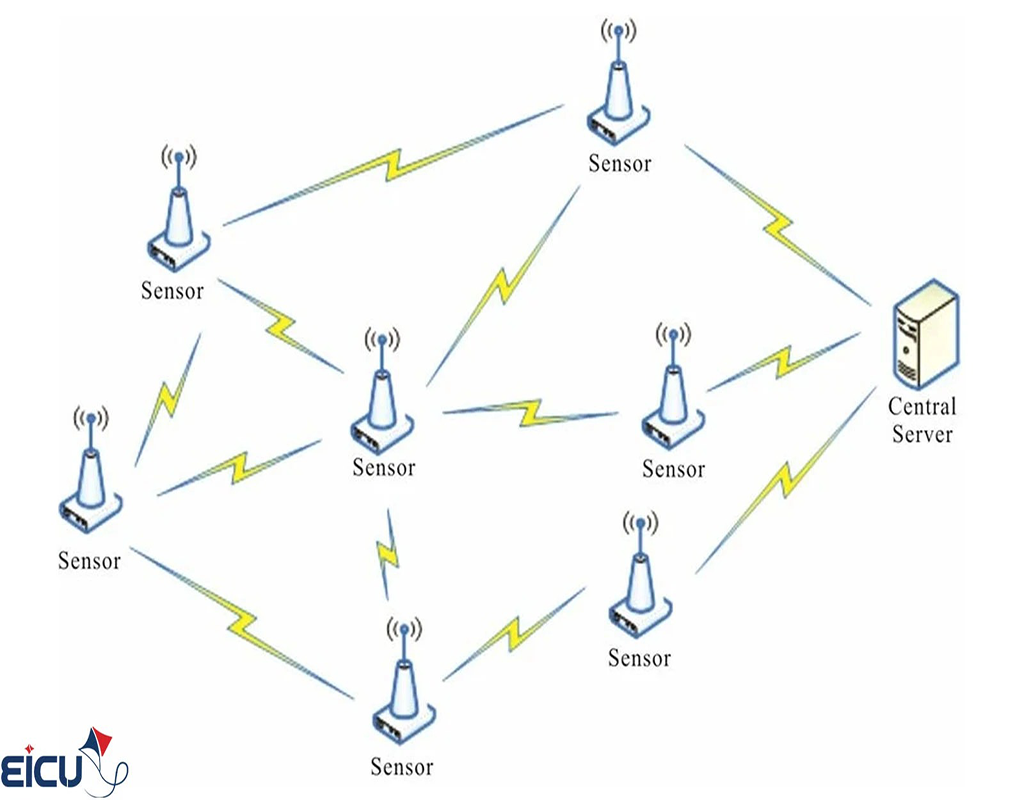

Unlike many networks that rely on mesh architectures (e.g., Zigbee in Philips Hue lighting systems), LoRaWAN stands out with its star-of-stars topology. In mesh setups, end nodes relay data through intermediaries, boosting range but increasing power drain and complexity.
LoRaWAN flips this: End devices (sensors/actuators) broadcast directly to multiple gateways in range. Gateways then forward packets unchanged to a central network server via IP backhaul (Ethernet, Wi-Fi, or cellular). The server handles deduplication, security, and routing to your application server.
Mesh Architecture Drawbacks
While powerful, mesh networks come with trade-offs: reduced capacity, shorter battery life (as every node must transmit and receive/relay data), and a highly complex network map that complicates maintenance and troubleshooting.
LoRaWAN takes a different path with its star topology. Gateways aren’t tied to specific nodes—instead, a single uplink from a node can be captured simultaneously by multiple gateways. Each gateway then forwards the raw packet—without any preprocessing—to the network server.
Picture this: All heavy lifting—deduplication of packets, data integrity checks, and security validations—shifts to the network server. With abundant power and computing resources, it handles these tasks effortlessly, keeping end devices simple and ultra-efficient.
This design eliminates relay overhead, boosts scalability (one gateway supports thousands of nodes), and preserves battery life for years. No more drained devices or tangled topologies—just seamless, reliable IoT connectivity.
Embrace the star topology for your next project. Deploy LoRaWAN and experience hassle-free, long-lasting networks. Join the revolution—explore certified solutions now!
Another important advantage of this architecture is that nodes don’t need to constantly listen for messages from other nodes. Most of the time, they can stay in sleep mode and only wake up when needed. This dramatically reduces energy consumption and allows batteries to last much longer.
What is a LoRaWAN Gateway?

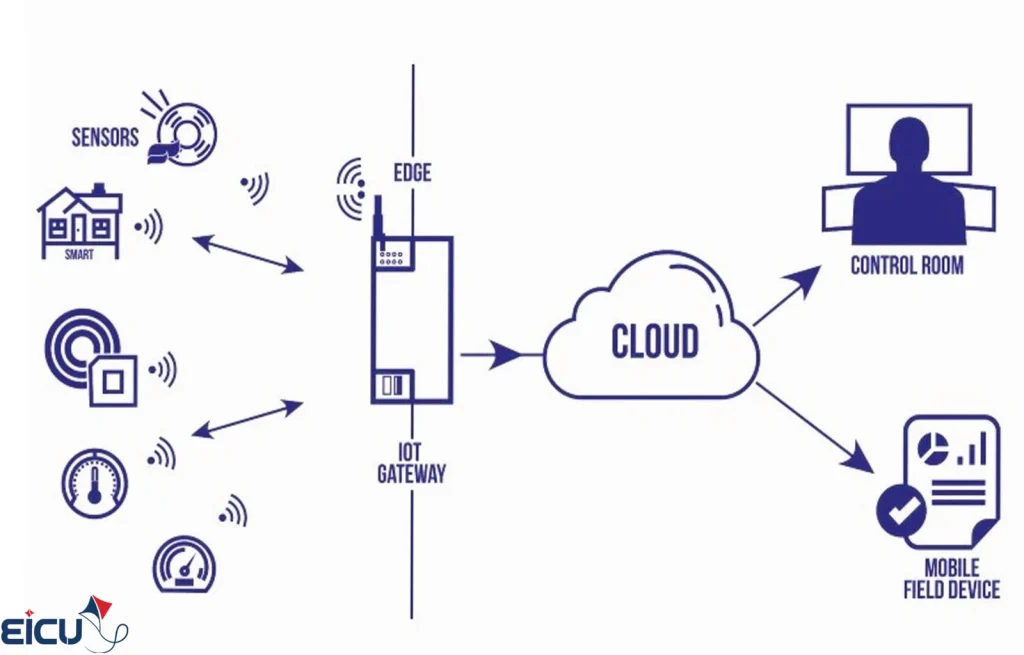

LoRaWAN gateways are physical devices equipped with both hardware and firmware to bridge IoT end devices to the cloud. In simple terms, gateways form the backbone of any LoRaWAN-based IoT network.
Acting as a central hub, gateways receive data from sensors and IoT devices via RF waves, then forward it to the network server (over the internet or intranet).
This makes the gateway a critical intermediary between the physical world (sensors) and the digital realm (network servers and cloud). Without gateways, a functional LoRaWAN network simply wouldn’t exist.
What Is the Typical Range of LoRaWAN?
The range of LoRaWAN is not a fixed number and depends entirely on the environment and conditions. In urban areas, due to the presence of buildings, walls, and numerous obstacles, the range is usually in the order of a few kilometers and typically around five kilometers. However, when moving away from the city to rural areas or open spaces where line-of-sight between antennas is established and obstacles are fewer, this range can increase up to fifteen kilometers. Even in experimental conditions with special equipment, astonishing records such as sending a LoRaWAN packet over more than seven hundred kilometers have been registered, which were more to demonstrate the technology’s capability than for practical use.
This range is influenced by various factors; for example, transmitter power has a direct role in increasing range, although frequency regulations in each country do not allow power to exceed certain limits. Antenna type is also highly important, and a high-quality antenna can make a significant difference in communication quality. Environmental conditions are effective as well; tall buildings, dense trees, hills, and even weather conditions like rain or humidity can reduce the range. On the other hand, LoRa technical parameters such as Spreading Factor are influential; the larger this number is chosen, the more the range increases, but in exchange, the data transfer rate decreases.
Another important feature of LoRaWAN is its extremely low energy consumption. IoT devices operating on this protocol spend most of their time in sleep mode and only wake up every few minutes or every few hours to send data. This very issue causes their battery life to increase dramatically, to the point that some devices can operate for nearly ten years on a simple battery without needing constant charging or replacement.
The combination of these two features—long range and very low energy consumption—has made LoRaWAN an unrivaled option for large-scale Internet of Things. Just imagine thousands of sensors in a smart agricultural farm, on water pipelines, or in a smart city collecting data; none of these devices can be constantly connected to power or have their batteries replaced every few days. This is where LoRaWAN, with its periodic and low-volume communications, provides the best solution.
Is LoRaWAN Inherently Secure?
Keeping an Internet of Things deployment secure is not limited to choosing the right protocol; security also depends on the implementation process and adherence to best practices and industry standards.
LoRaWAN is inherently designed to be highly secure because authentication and encryption are mandatory in it. However, networks and devices can still be vulnerable if security keys are not properly protected, are not randomly generated for all devices, or if nonce values (which should be used only once) are reused. As shown in many reports and blogs, these vulnerabilities can jeopardize security.
From day one, the LoRa Alliance has placed security at the center of the table and pursued it with full seriousness. Nothing has been hidden behind the scenes, and it has always been transparent about the security features of LoRaWAN. This protocol is designed from the ground up so that security is an inseparable part of it, not an add-on option. This has enabled LoRaWAN to offer advanced security features that are perfectly suited for large-scale, low-power Internet of Things networks.
The exciting point is that unlike many other IoT technologies, LoRaWAN provides end-to-end encryption for applications by default. This means the data generated in the device remains locked and secure as it travels to its final destination.
LoRaWAN standard defines two encryption layers that play the main role in security. The first is a 128-bit key called Network Session Key, which is shared between the end device and the network server. This key is responsible for ensuring authentication and integrity of packets for the server. The second is another 128-bit key called Application Session Key (AppSKey), which is shared end-to-end between the device and the application server to provide full encryption of data in transit.
These layers are implemented using the AES algorithm, one of the most reliable and well-known encryption standards. This combination allows the network to operate in a multi-tenant manner — meaning multiple users can share the same network without the network operator being able to view the content of their data.
Device activation is also designed flexibly. The device can be personalized at the time of manufacture or during initial setup (Activation by Personalization), or activated in the field via Over-The-Air Activation (OTAA). The advantage of OTAA is that communication sessions can be rekeyed if needed, while security remains intact.
LoRaWAN includes all the fundamental and essential components required in any modern wireless communication technology, all implemented with the power of AES-128 encryption. The inherent security defined in the LoRaWAN specifications is preserved only when devices and networks are implemented and deployed correctly and in compliance with security principles. In fact, this is not limited to LoRaWAN — any other communication technology will reveal its vulnerabilities if not implemented properly.
As mentioned earlier, LoRaWAN operates based on symmetric encryption, which means security keys must be securely shared between components. To make this process simpler and more reliable, members of the LoRa Alliance have developed several key solutions: one is the design of LoRaWAN backend interfaces that transfer the storage of Root Keys to the Join Server. This allows the Join Server to act as a trusted element, independent of the network owner. The second solution is the use of Secure Elements — hardware chips that add an extra layer of physical protection and prevent unauthorized tampering or extraction of keys.
The LoRa and LoRaWAN Advantage
Limitations of LoRa and LoRaWAN
One of LoRaWAN’s key challenges stems from its limited bandwidth and communication patterns. Operating in unlicensed ISM bands (e.g., 433 MHz, 868 MHz, or 915 MHz, depending on the region), it must comply with strict regulations—like Europe’s Duty Cycle rule, which caps transmission time to a tiny percentage (often 1% or less) in the 868 MHz band.
This means:
- No continuous streaming—devices can’t transmit constantly.
- Uplink/downlink messages are restricted to specific, limited windows.
- It’s unsuitable for high-volume or large data transfers.
LoRaWAN excels in periodic, low-volume scenarios: sending temperature readings every few minutes, tank level reports a few times daily, or animal tracking updates. But for video streaming or large file transfers? It’s not the right fit.
Downlink communication is even more constrained—the server can’t push messages anytime; devices must wake periodically to listen. This complicates real-time, bidirectional setups.
Another hurdle is LoRa’s proprietary nature. The modulation is patented by Semtech, so:
- Only chips from Semtech or approved partners can implement true LoRa.
- Building custom chipsets requires licensing from Semtech.
- This reduces openness and creates dependency on one vendor—drawing criticism from open-source advocates.
In summary, LoRaWAN is optimized for low-power, small-data applications. For high-bandwidth, always-on, or fully independent needs, alternatives like NB-IoT or mesh networks may be better.
Despite limitations, gateways enable massive scalability. Choose outdoor/indoor models, integrate with The Things Network, or go decentralized with Helium. Start your deployment—reliable, long-range connectivity awaits!
