2G / 3G / 4G / 5G
SLM320E Development Board Supporting LTE CAT1/GNSS/Bluetoth/Wi‑Fi scan/AT Commands Global Support
Availability:
10 in stock
- Support LTE Cat.1 with a maximum Downlink rate of 10 Mbps
- Support full coverage of GSM/GPRS/LTE Cat.1 network system
- Support GPS/BD/GLonass
- Support FOTA remote upgrade
$ 41.5
10 in stock

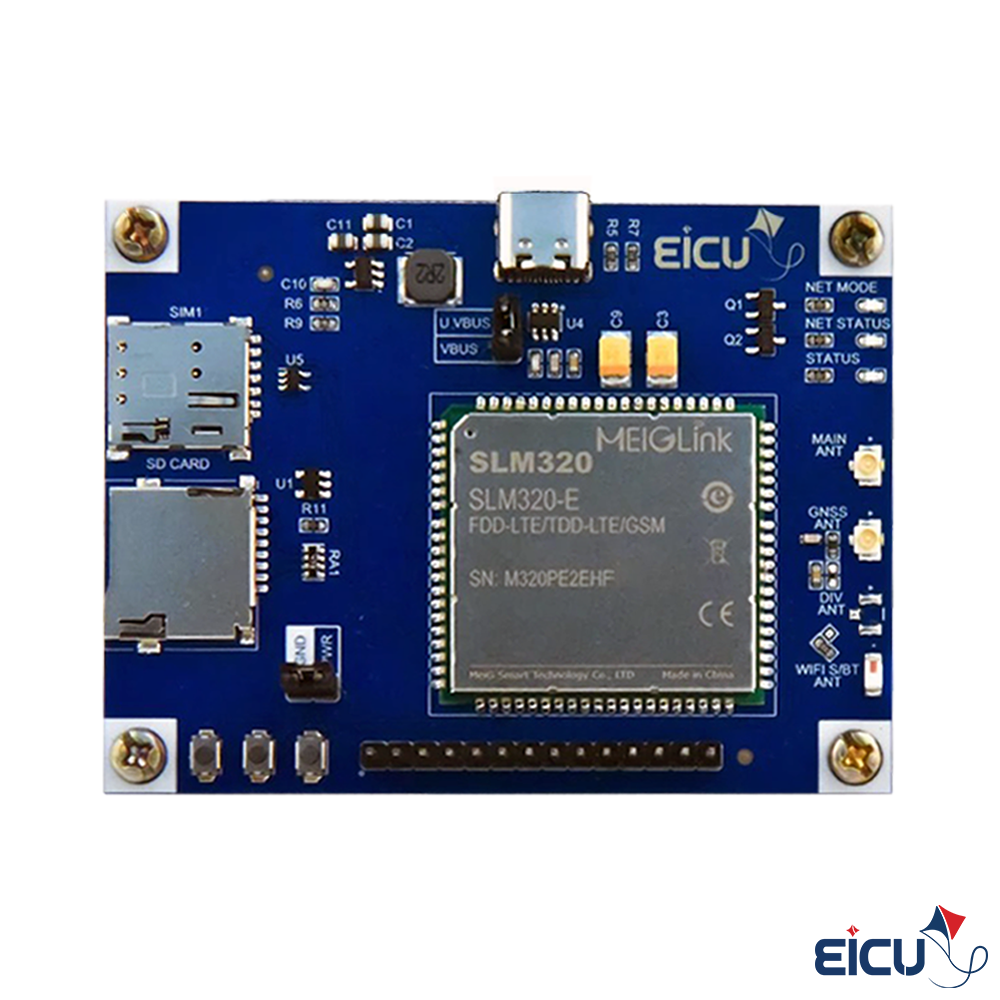

SLM320E Development Board Description
MeiG Smart SLM320 is a new-generation LTE Cat.1 bis wireless communication module. It is footprint-compatible with MeiG SLM750 and SLM790 modules and provides customers with LTE Cat.1 and LTE Cat.4 compatible designs for different market demands. The module integrates BT4.2/BLE and Wi‑Fi scan functions, optional GPS/BeiDou/GLONASS, an optional on‑board SMD SIM card, and expandable SPI flash. Packaged in Mini PCIe, it is an ideal solution for diverse applications and M2M deployments.
SLM320E Development Board Features
- Variants: SLM320-C (China), SLM320-E (EMEA & Asia Pacific), SLM320-LA (Latin America)
- Wireless: LTE Cat.1 bis (and Cat.4 compatible design), GPRS fallback
- Short‑range: BT4.2 / BLE, Wi‑Fi scan
- GNSS (optional): GPS / BeiDou / GLONASS
- Storage/Sim options: Reserved SMD SIM on board (optional), expandable SPI flash
- Package: Mini PCIe
- Protocols: TCP, UDP, MQTT, FTP/FTPS, HTTP/HTTPS, LwM2M, CoAP
- Interfaces & Peripherals: Multiple industrial standard interfaces, peripheral expansion support, I2S (1x)
- Power & Controls: WAKEUP‑IN & WAKEUP‑OUT, Power On/Off, Reset, Flight (Fly) Mode
- Indicators & Antennas: LED indicator; antenna interfaces for main, BT/Wi‑Fi, GPS
- Software & Upgrades: Drivers for Windows series, Linux 2.6+, Android 4.0; one‑click upgrade tool; FOTA upgrade
SLM320E Module Specifications
| Category | Parameter | Value / Details |
|---|---|---|
| General | Package | LCC (LCC80 pin + LGA 64 pin) |
| Size | 32.0 × 29.0 × 2.4 mm | |
| Weight | About 5 g | |
| Certifications | CCC / SRRC / CTA / CE / RCM* / FCC* / KC* / NCC* * = in planning / design phase |
|
| Module Interfaces | High-speed USB | USB 2.0 × 1 |
| UART | × 3 | |
| I2C | × 3 | |
| SDIO | × 2 | |
| SPI | × 2 | |
| Control Pins | WAKEUP-IN & WAKEUP-OUT, Power On/Off, Reset, Fly Mode | |
| LED indicator | × 1 | |
| SIM card interface | 1.8 V / 3.0 V | |
| Antenna Interface | Main antenna + BT/Wi-Fi antenna + GPS antenna | |
| I2S | × 1 | |
| Drivers & Tools | Drivers :Windows series, Linux 2.6 and above, Android 4.0 and above | |
| Tools | One-click upgrade tool, FOTA upgrade | |
| Protocols | TCP, UDP, MQTT, FTP/FTPS, HTTP/HTTPS, LwM2M, CoAP | |
| Module Rate | LTE-FDD (Non-CA Cat.1) | Max 10 Mbps (DL) / 5 Mbps (UL) |
| LTE-TDD (Non-CA Cat.1) | Max 8 Mbps (DL) / 2 Mbps (UL) | |
| GPRS | Max 85.6 kbps (DL) / 85.6 kbps (UL) | |
| Transmission Power | Class 4 GSM850/900: 33 ± 2 dBm Class 1 GSM1800/1900: 30 ± 2 dBm Class 3 LTE-TDD/FDD: 23 ± 2.7 dBm |
|
| Electrical Characteristics | Power supply voltage | 3.5 V ~ 4.2 V, typical 3.8 V |
| Shutdown | 10 µA (TBD) | |
| Idle | 20 mA (TBD) | |
| Sleep | 2 mA (TBD) | |
| Temperature and Humidity | Operation Temperature | -30 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C | |
| Humidity | 5% ~ 95% | |
| SLM320 Band Information – Variants | ||
| SLM320-E (PN: M320PE1A) – EMEA, Asia Pacific | LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
|
| SLM320-E (PN: M320PE2B) | LTE-FDD: B1/B3/B5/B7/B8/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
|
| SLM320-E (PN: M320PE2C) | LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
Downloads
| Operating temperature | -30°C to 70°C |
|---|---|
| Humidity | 5%–95% |
| Variants | SLM320-C (China), SLM320-E (EMEA & Asia Pacific), SLM320-LA (Latin America) |
| Cellular Category | LTE Cat.1 bis (and Cat.4 compatible design), GPRS fallback |
| GNSS | GPS / BeiDou / GLONASS |
| Data Rate | Max 10 Mbps (DL) / 5 Mbps (UL) |
| Protocols | TCP, UDP, MQTT, FTP/FTPS, HTTP/HTTPS, LwM2M, CoAP |
