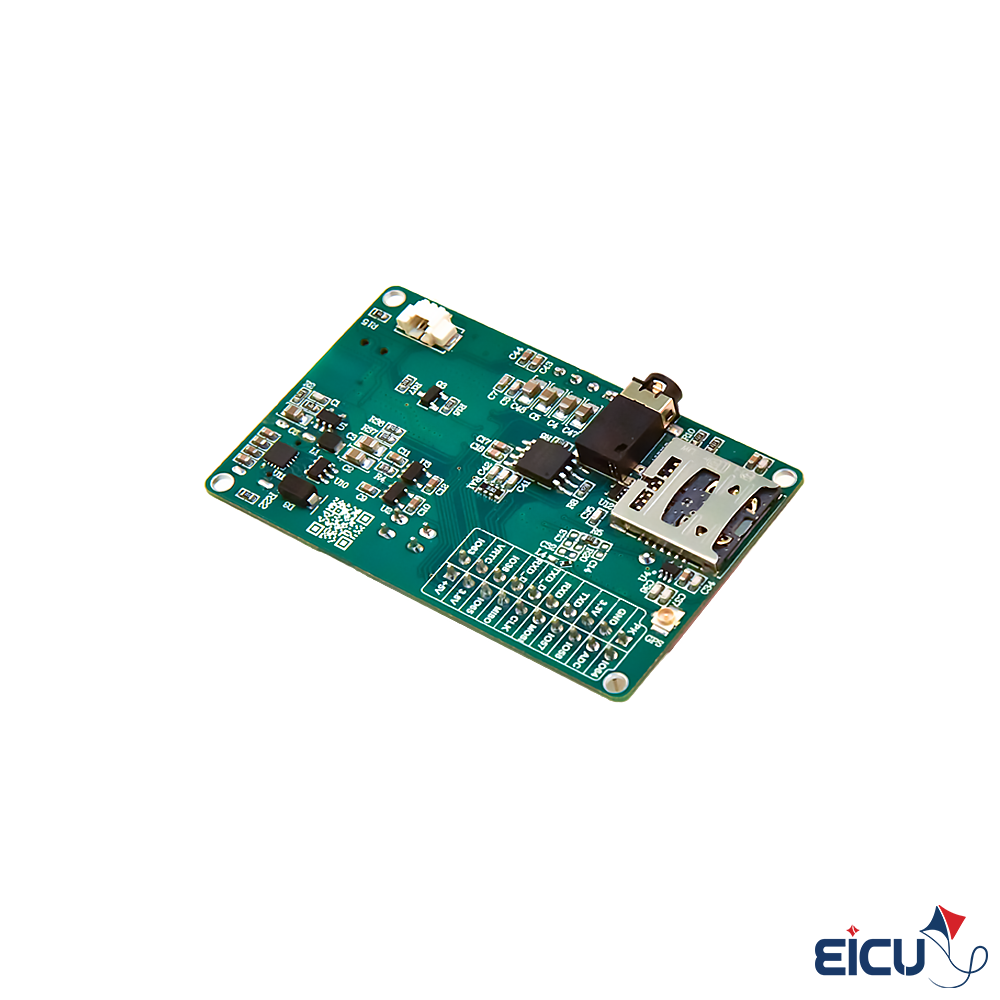

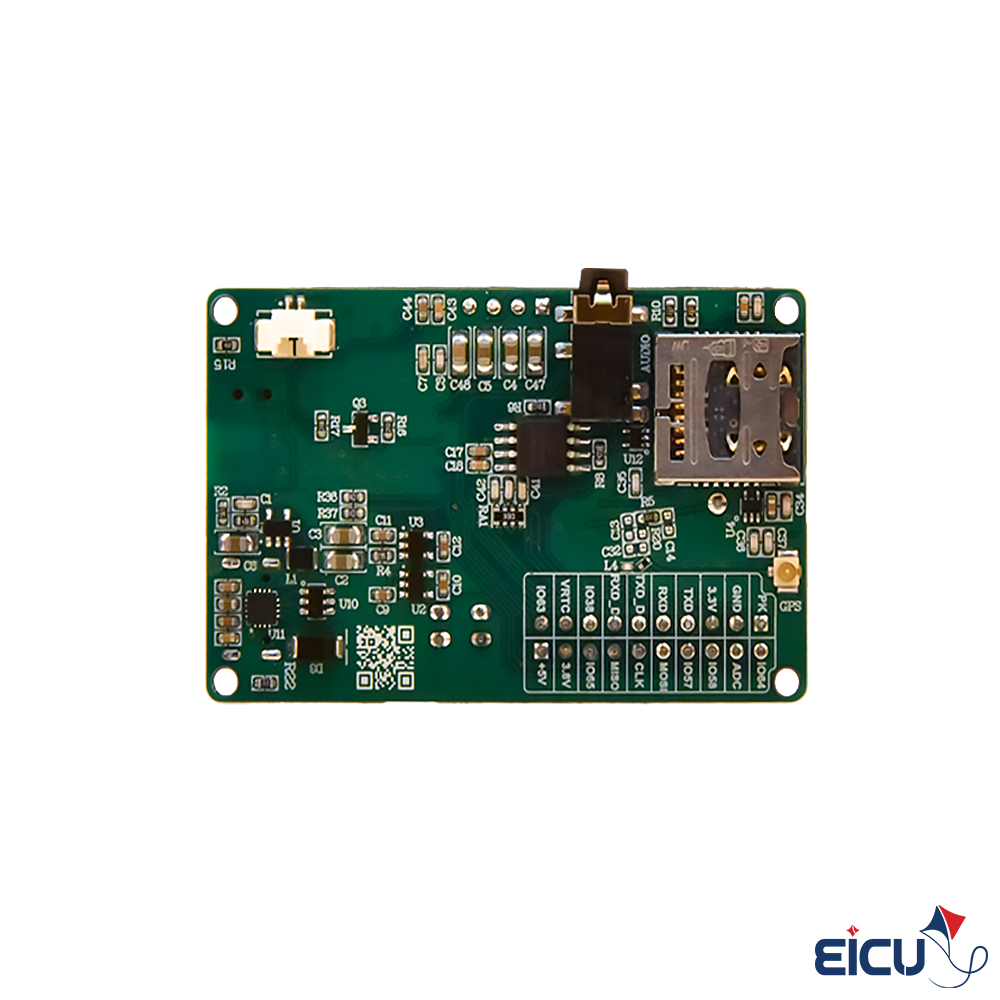

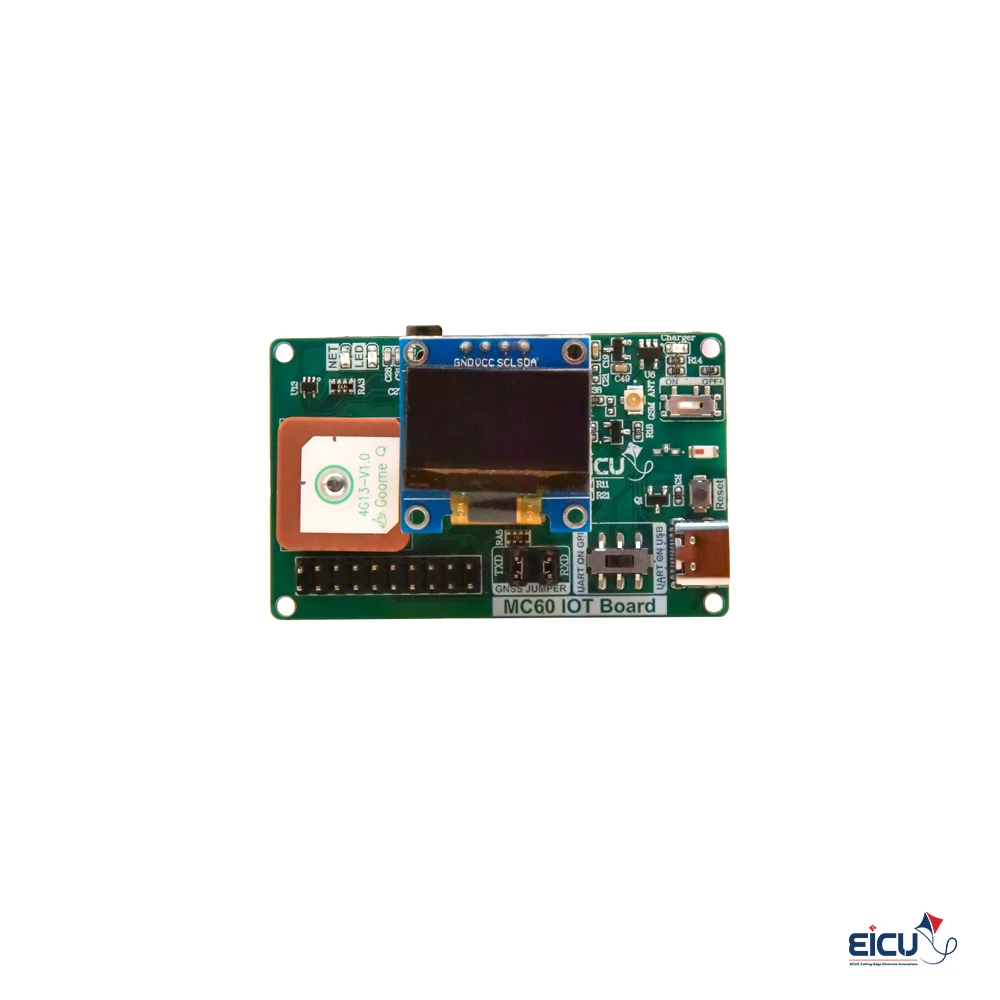

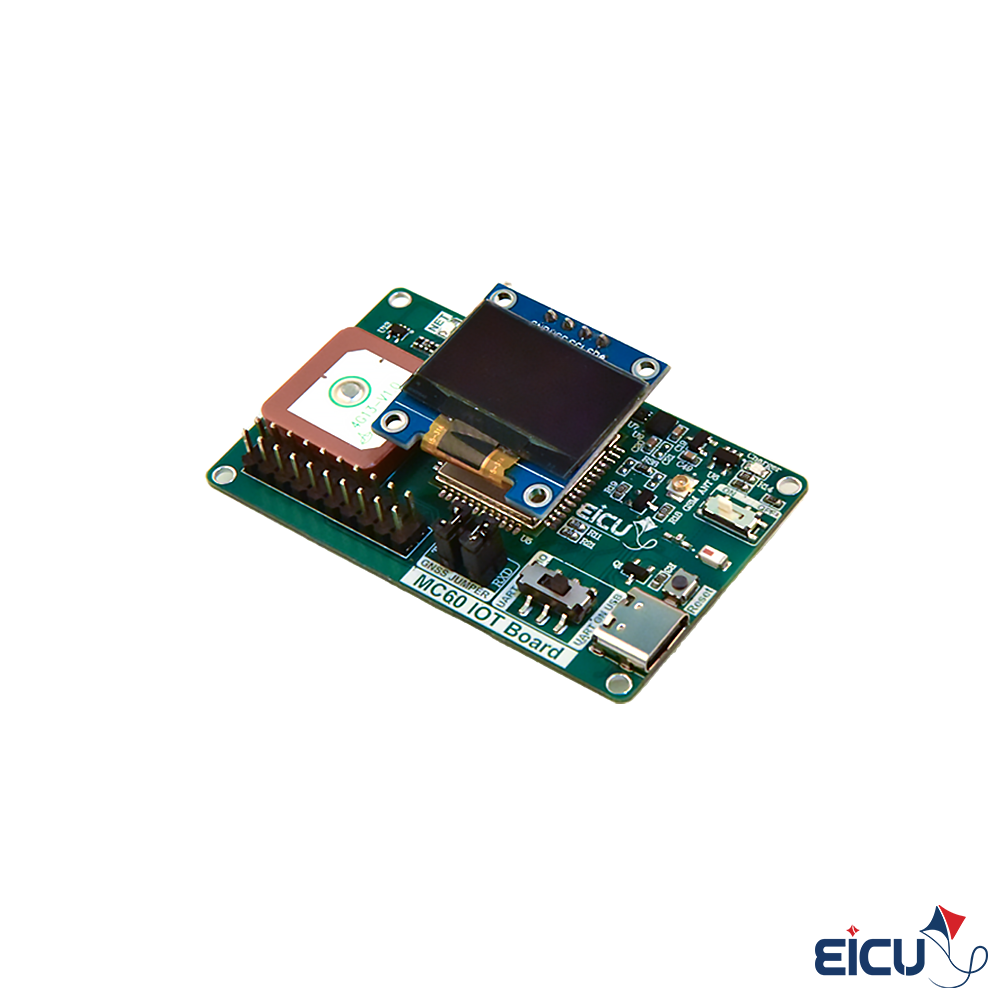

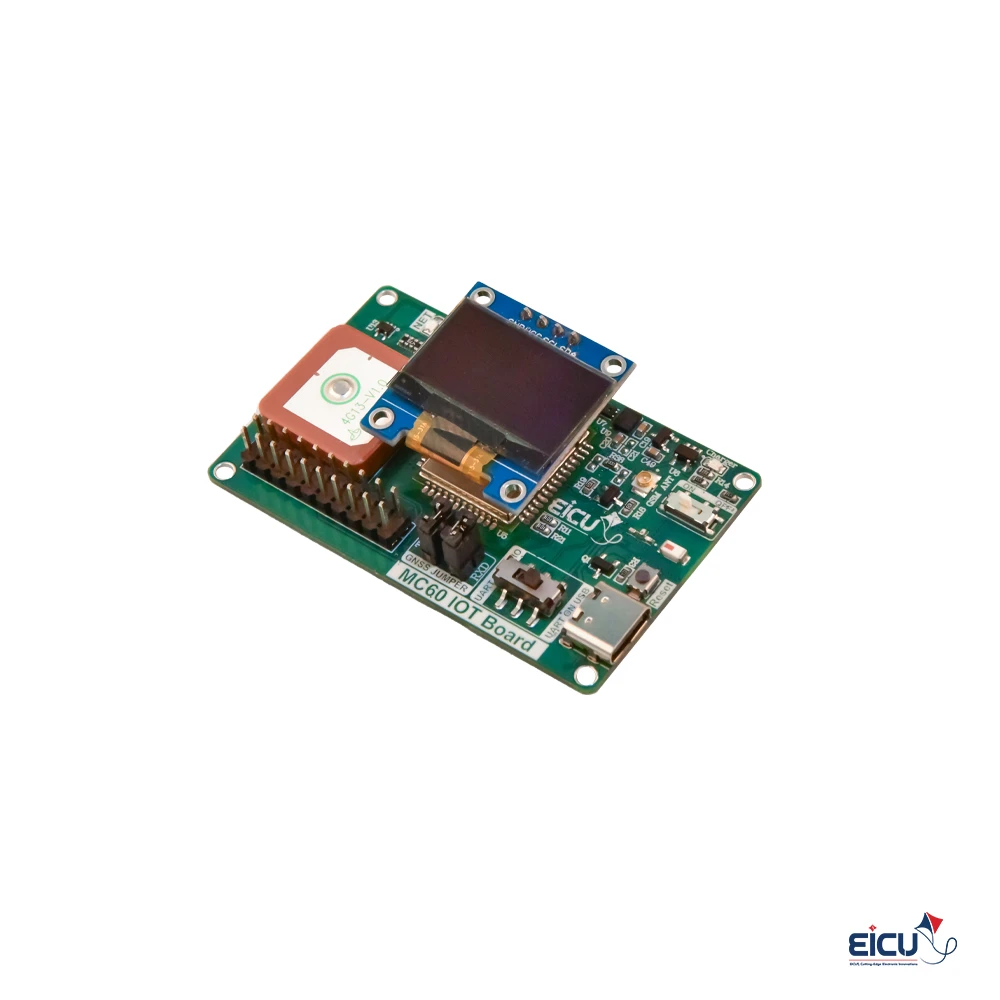

MC60 IOT Development Board Supporting GSM/GPRS/GNSS/Dual-SIM/6-Axis Accelerometer/Temperature/Humidity Sensor

MC60 IOT Development Board Overview

The MC60 IOT Development Board is a powerful and versatile development platform tailored for Internet of Things (IoT) applications. It is specifically designed to enable embedded developers to prototype, test, and deploy their projects without any hardware limitations. Whether you’re building a tracking device, an environmental monitor, or a connected smart solution, this board provides all the essential tools for rapid development and smooth transition to large-scale production.

MC60 IOT Development Board Features

• Dual Status LEDs for system and operation indication
• Embedded Temperature & Humidity Sensor (SHT40) with internal heater for enhanced accuracy
• High-Precision, Low-Power 6-Axis Accelerometer (ICM-42670-P)
• FL Connector for external GNSS antenna
• Optimized Li-Po Charging Circuit designed for 200mAh battery with charging status LED
• Manual Battery Power Switch for safe disconnection
• Onboard Bluetooth Antenna
• USB Type-C Connector with support for programming the MC60 module
• UART Mode Selector Switch for toggling between programming and custom user mode
• Configurable Jumpers to route GNSS UART output to the module’s UART
• Li-Po Battery Socket for easy battery connection
• 16MB Flash Memory for data storage and firmware
• Standard Microphone and Speaker Connectors
• Dual-SIM Socket – second SIM slot optionally usable for SD card
• Support for Internal GNSS Antenna or External Active GNSS via U.FL Connector

With its built-in sensors, dual SIM support, flash memory, and a wide range of connectivity options, the MC60 IOT Development Board gives embedded engineers everything they need to take their ideas from concept to final product — simple, fast, and professional.

MC60 Module Specifications

MC60 IOT Development Board Application

The MC60-IoT Board is ideal for a wide range of IoT applications that require reliable connectivity, sensor integration, and low power consumption. Its compact design and flexible interfaces make it suitable for:

• GPS Trackers – Personal, asset, and vehicle tracking with GNSS and cellular connectivity
• Environmental Monitoring – Real-time temperature, humidity, and motion data collection
• Wearable and Portable Devices – Thanks to low power consumption and small form factor
• Smart Agriculture – Wireless sensing and remote monitoring in outdoor environments
• Remote Control & Automation – Custom M2M solutions with voice, Bluetooth, and UART interfaces
• Prototyping & Pilot Projects – Rapid development and testing of embedded applications before scaling to production

Whether you’re designing a custom product or building a proof-of-concept, the MC60-IoT Board provides the tools to bring your ideas to life — efficiently and reliably.

Downloads
