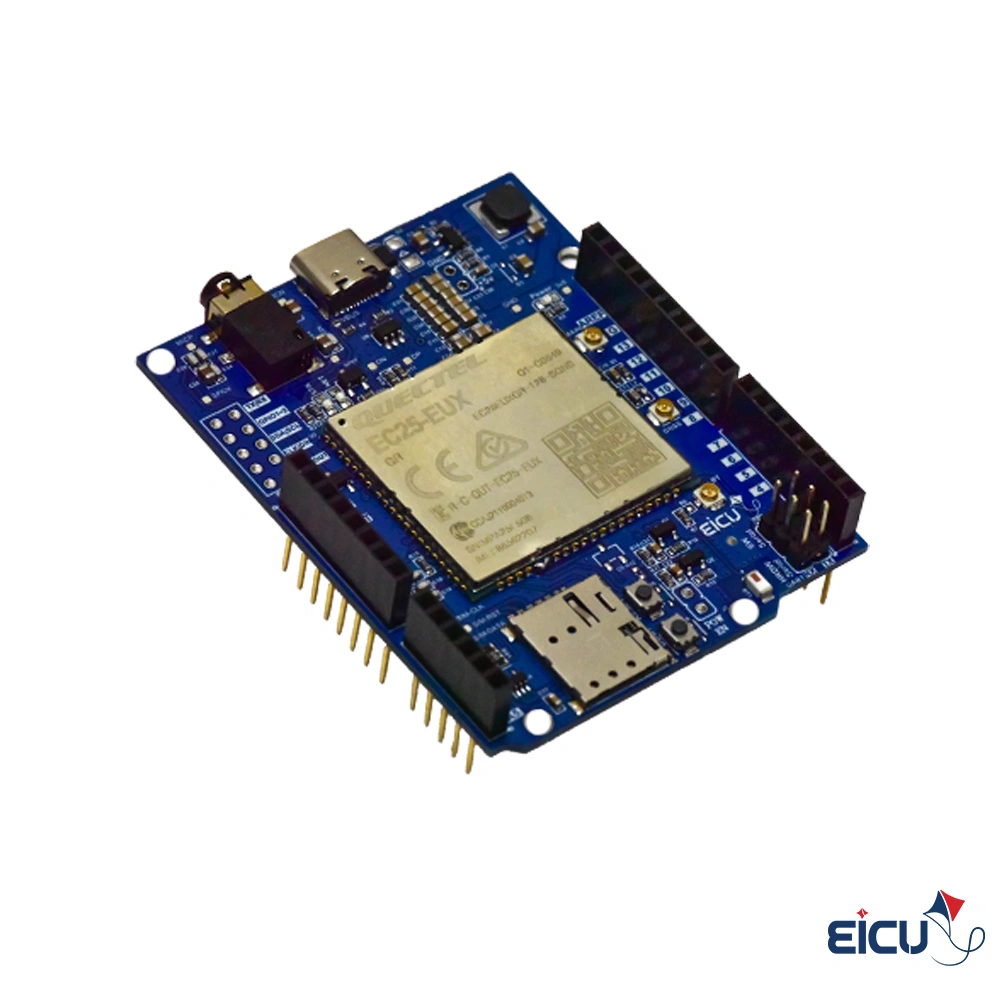

Side view of Quectel EC25 LTE Cat 4 Arduino shield

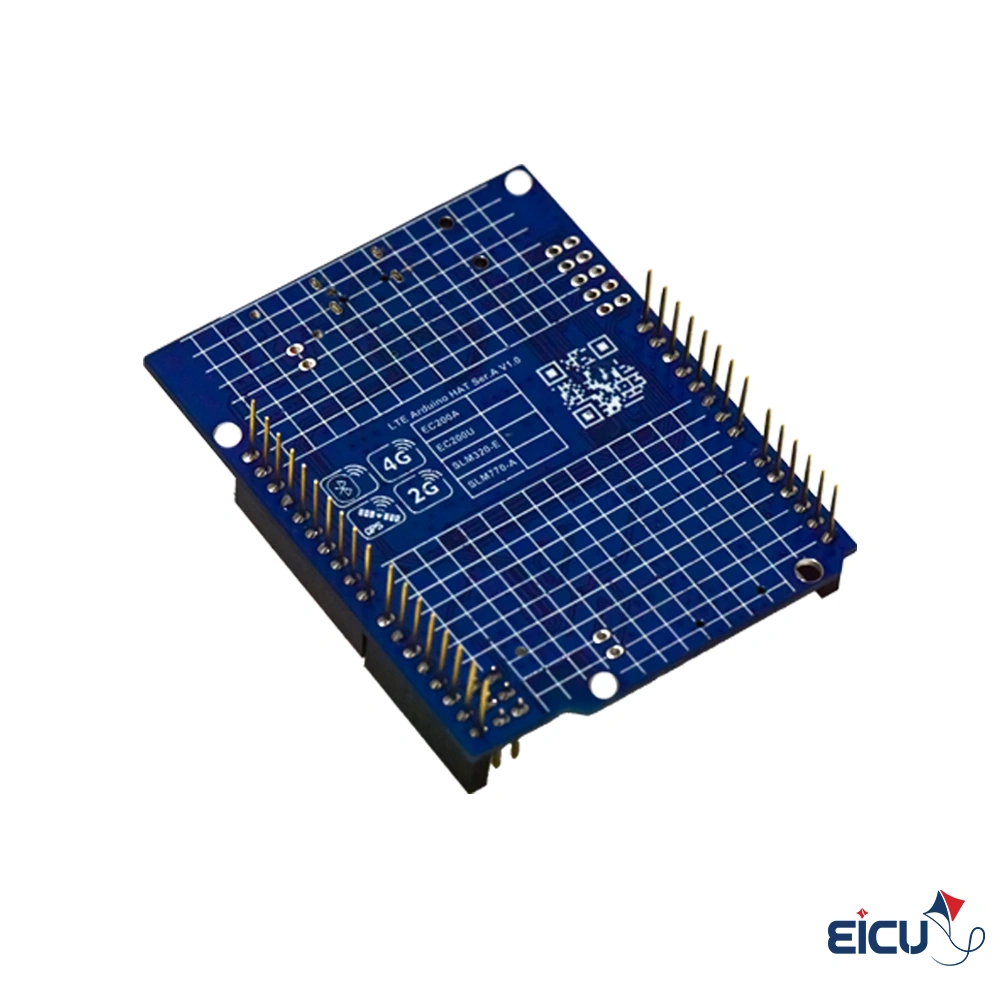

Rear Side view of Quectel EC25 LTE Cat 4 Arduino shield

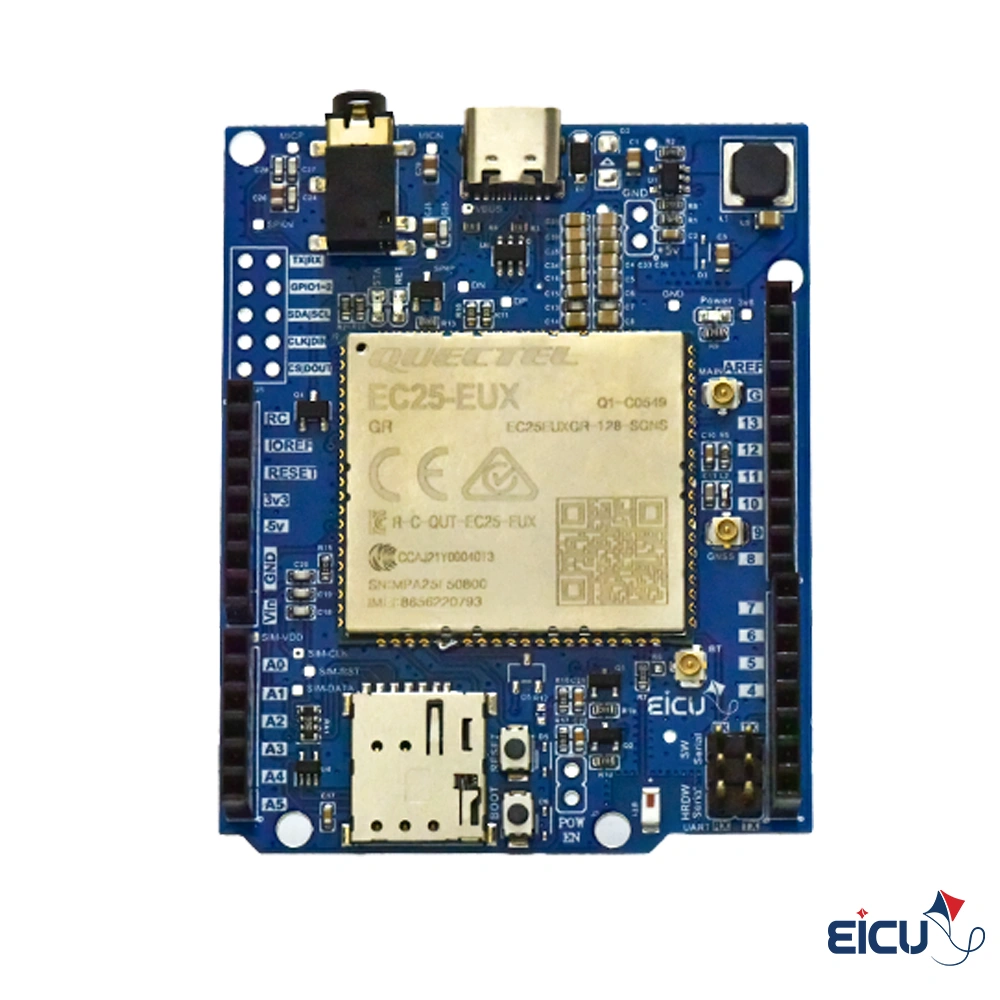

Front View Quectel EC25-E LTE Cat 4 Arduino HAT

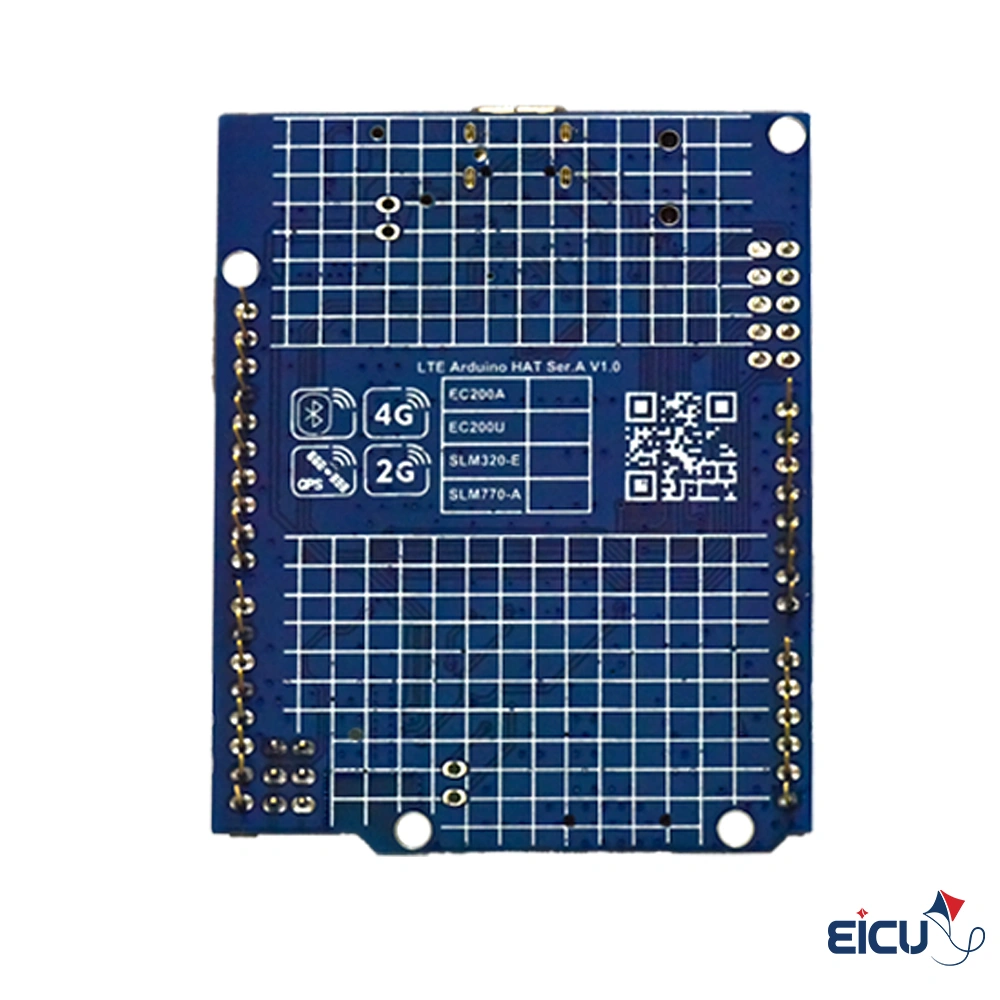

Rear view of Quectel EC25 4G LTE Arduino development board

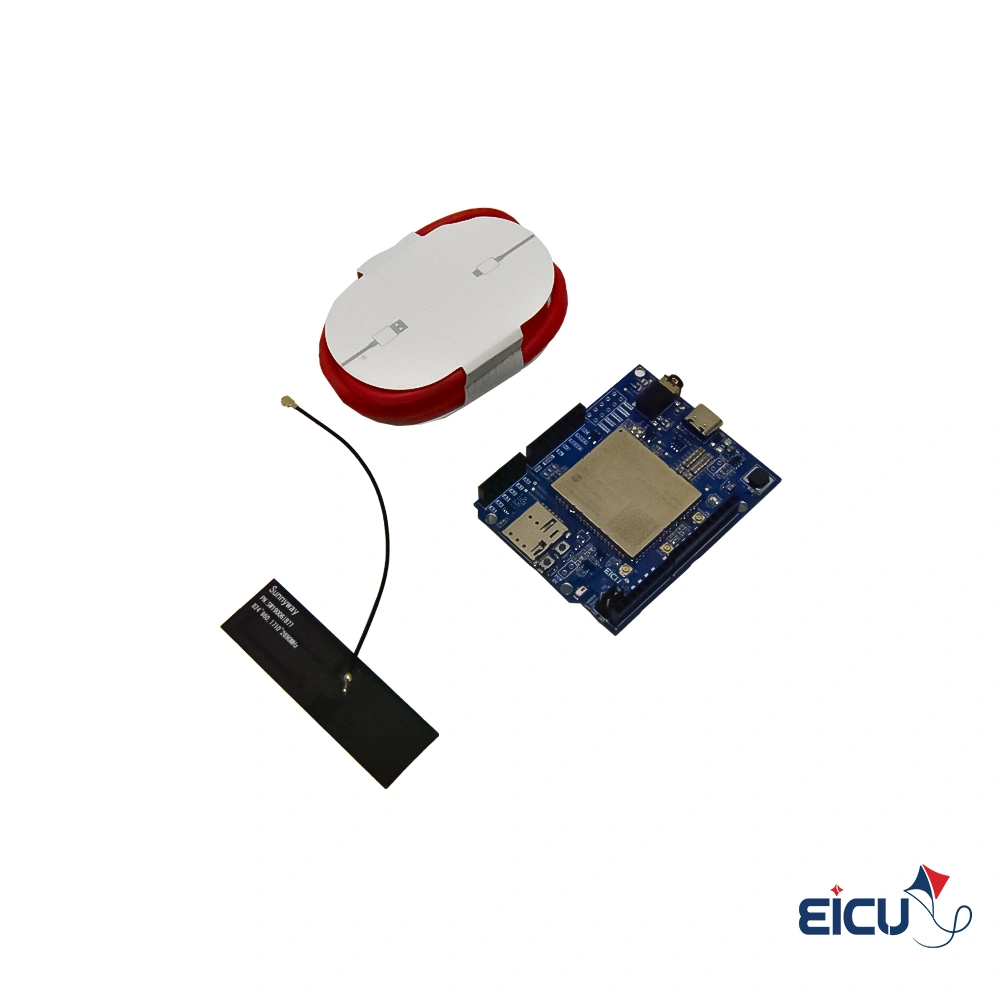

Quectel EC25-E Arduino HAT kit contents: Dev Board, antenna, USB-C cable.
Side view of Quectel EC25 LTE Cat 4 Arduino shield
Rear Side view of Quectel EC25 LTE Cat 4 Arduino shield
Front View Quectel EC25-E LTE Cat 4 Arduino HAT
Rear view of Quectel EC25 4G LTE Arduino development board
Quectel EC25-E Arduino HAT kit contents: Dev Board, antenna, USB-C cable.

EC25-E Arduino HAT Development Board Supporting LTE Cat 4/GSM/GPRS/GPS/GLONASS/Galileo/QZSS/BeiDou/Bluetooth

Availability:

Out of stock
Add to favorites
Compare

  • LTE Cat 4 (150 Mbps DL / 50 Mbps UL)
  • USB Type-C single-cable connection
  • Direct Arduino shield compatible
  • Built-in multi-GNSS (GPS/BeiDou/GLONASS/Galileo)

$ 45.0

Out of stock

Compare

EC25-E Arduino HAT Development Board Description

The LTE Arduino HAT Development Board is a compact, portable evaluation board specifically designed for easy integration with Arduino ecosystems. It comes pre-equipped with a high-performance LTE Cat 4 wireless communication module (EC25 series), enabling fast 4G connectivity with maximum downlink speeds of up to 150 Mbps and uplink speeds of up to 50 Mbps.

The board features a convenient USB Type-C interface for both power supply and data communication — developers only need a single USB Type-C cable to power the board, configure the module, send AT commands, and transfer data. Thanks to its Arduino-compatible pin headers and layout, the development board can be directly stacked onto standard Arduino shields or used with a wide range of existing Arduino expansion boards without any adapters. This makes rapid prototyping of IoT applications extremely simple and efficient.

EC25-E Arduino HAT Development Board Features

Parameter Value
LTE FDD Data Rate (Mbps) 150 (DL) / 50 (UL)
LTE TDD Data Rate (Mbps) 130 (DL) / 35 (UL)
DC-HSPA+ Data Rate (Mbps) 42 (DL) / 5.76 (UL)
WCDMA Data Rate (kbps) 384 (DL) / 384 (UL)
EDGE Data Rate (kbps) 296 (DL) / 236.8 (UL)
GPRS Data Rate (kbps) 107 (DL) / 85.6 (UL)
Carrier Certification Global Certification Forum (GCF)
Regulatory Certifications CE, FCC, RoHS, REACH, etc. (multiple regions)
(U)SIM Interfaces 1x
UART Interfaces 2x
USB 2.0 Ports 1x
Digital Audio (PCM) Interfaces 1x
I2C Interfaces 1x
SDIO Interfaces 1x
SPI Interfaces 1x (optional)
Bluetooth 1x
ADC Channels 2x
GPIOs 9x
Echo Cancellation / Noise Suppression Supported
VoLTE Supported
CSFB Supported
DFOTA Supported
GNSS Integrated GPS / BeiDou / GLONASS / Galileo / QZSS
Audio Playback / Recording Optional
QuecLocator® Optional
(U)SIM Card Detection Yes

Downloads

Read More in EICUT WIKI
SKU: E0991 Category: Brand:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “EC25-E Arduino HAT Development Board Supporting LTE Cat 4/GSM/GPRS/GPS/GLONASS/Galileo/QZSS/BeiDou/Bluetooth”

There are no reviews yet.

Quectel EC25 Series Specification (pdf, 683KB)
Download
Cellular category

LTE Cat 4
Data Rates

LTE FDD Data Rate (Mbps): 150 (DL) / 50 (UL)
Interfaces

USB Type-C connector
Protocols

supporting TCP/IP, UDP, HTTP, FTP, and PPP, enabling direct internet connectivity, file transfers, web requests, and transparent data transmission over cellular networks.
