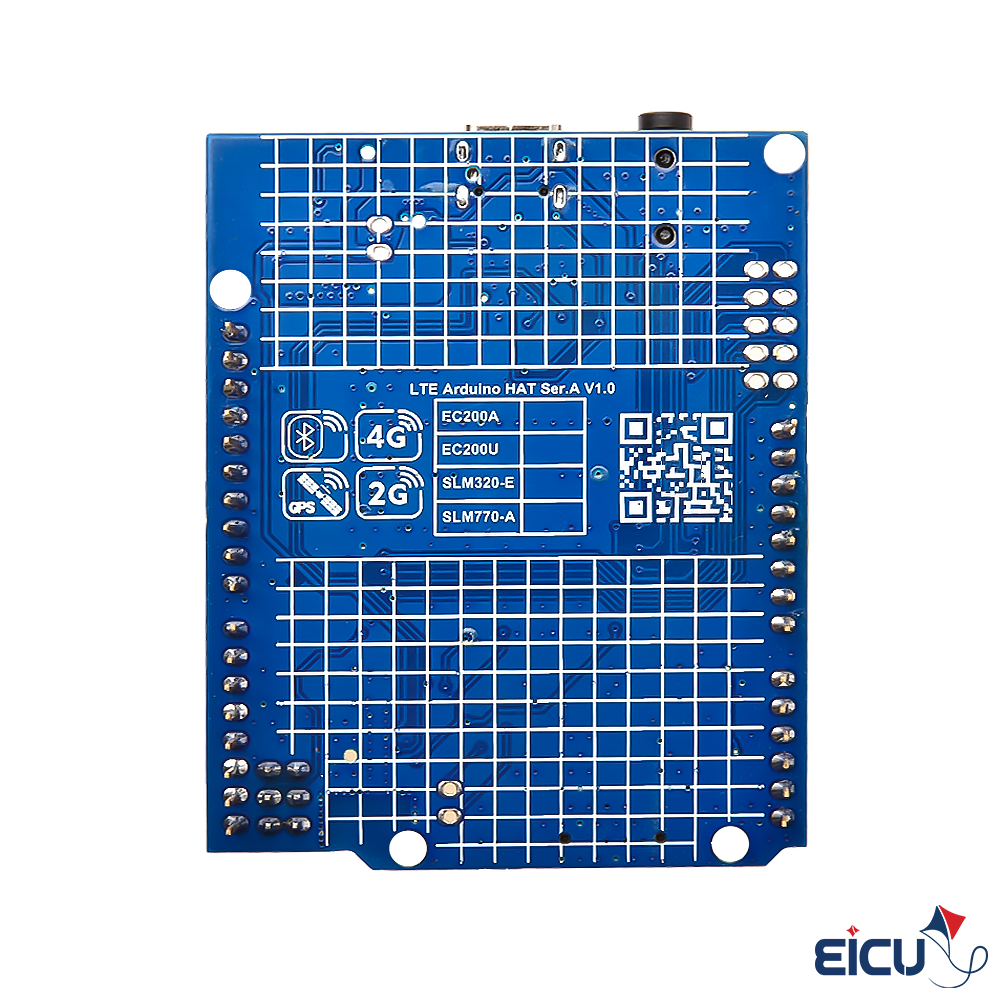

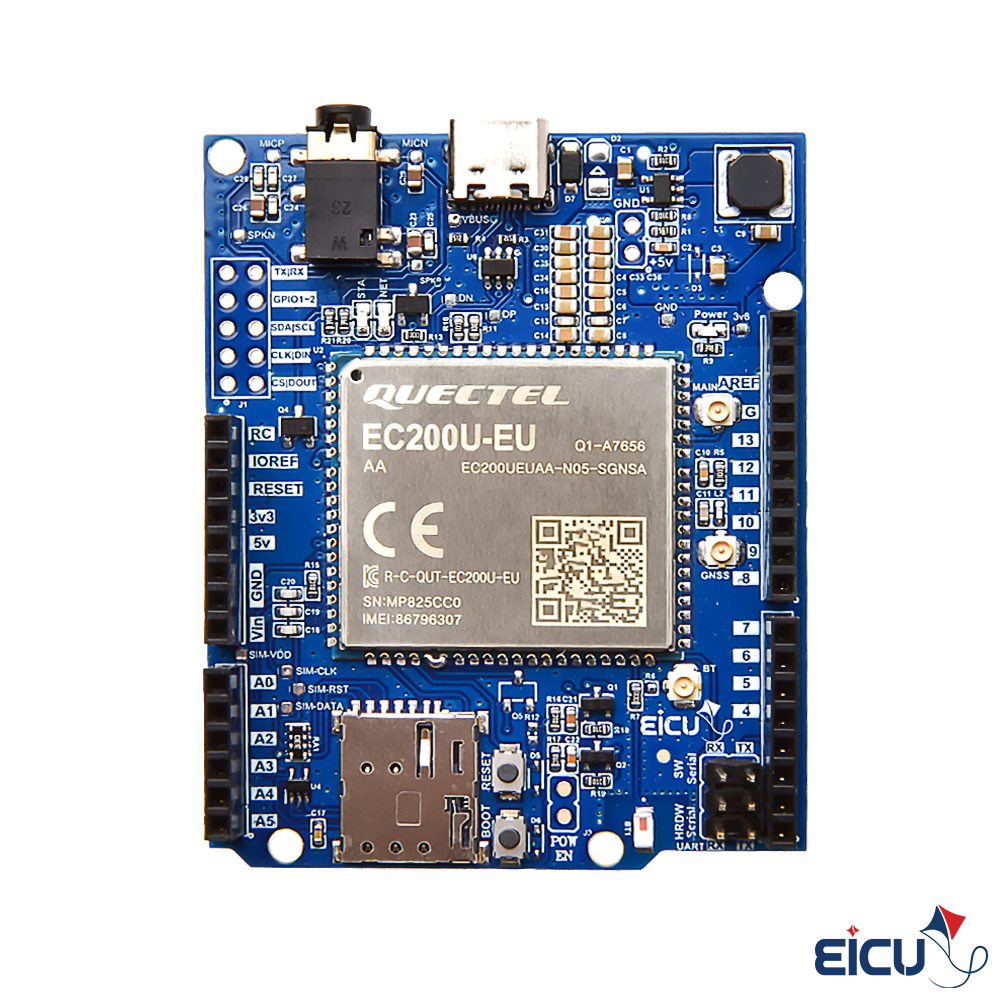

EC200U Arduino Hat Development Board Supporting LTE Cat 1/GSM/GPRS/GPS/GLONASS/Bluetooth
Availability:
10 in stock
- Quad-band GSM + LTE-FDD B1/B3 support
- Data Rates Up to 10 Mbps downlink and 5 Mbps uplink
- Full 3GPP + Quectel enhanced AT commands
- GPS + GLONASS with QuecFastFix
Compare
EC200U Arduino Hat Development Board Description
The LTE header development board is a compact and portable board designed specifically for Arduino. The main equipped modules are the LTE series wireless communication modules. The development board has a USB Type-C interface, making it convenient for development. Developers only need a USB Type-C cable to easily use the Development board. Additionally, the development board is compatible with the expansion board of Arduino, which can be directly used on the development board.
EC200U Arduino Hat Development Board Features
- LTE Cat 1 for M2M/IoT 10 Mbps down / 5 Mbps up – cost-effective, power-efficient for trackers, meters, alarms, etc.
- Global LTE + 2G fallback Works worldwide with LTE bands + GSM/GPRS support for full coverage.
- Rich interfaces UART, USB, I²C, PCM, ADC, GPIO, SIM – easy connection to sensors and MCUs.
- Analog audio support Microphone + speaker interface for voice, alarms, or VoLTE calls.
- GNSS (optional) Built-in GPS/BeiDou/GLONASS/Galileo for location tracking.
- Extras (optional) Wi-Fi scan – for positioning/help Bluetooth – local pairing FOTA – remote firmware update
- High performance Stable connection, low latency, power-saving modes, reliable in tough conditions.
EC200U Module Specifications
| Category | Parameter | Value (EC200U-EU) |
|---|---|---|
| General | Region/Operator | EMEA / Australia / New Zealand |
| Dimensions (mm) | 28.0 × 31.0 × 2.4 | |
| Weight (g) | Approx. 4.1 | |
| Temperature Range | Operating Temperature | -35 °C to +75 °C |
| Extended Temperature | -40 °C to +85 °C | |
| Frequency Bands | LTE-FDD | B1 / 3 / 5 / 7 / 8 / 20 / 28 |
| LTE-TDD | B38 / 40 / 41 | |
| GSM (Optional) | B2 / 3 / 5 / 8 | |
| GNSS (Optional) | GPS / BDS / Galileo / GLONASS / QZSS | |
| Bluetooth (Optional) | Bluetooth 4.2 (BR/EDR + BLE) | |
| Wi-Fi Scan (Optional) | 2.4 GHz 11b (Rx) | |
| Bandwidth | 1.4 / 3 / 5 / 10 / 15 / 20 MHz | |
| Certifications | Regulatory | Europe: CE Australia/New Zealand: RCM |
| Max. Data Rate | LTE-FDD (Mbps) | 10 (DL) / 5 (UL) |
| LTE-TDD (Mbps) | 8.96 (DL) / 3.1 (UL) | |
| GSM (kbps) | 85.6 (DL) / 85.6 (UL) | |
| Interfaces | (U)SIM | × 2 |
| UART | × 3 | |
| USB 2.0 | × 1 | |
| Audio Digital (PCM) | × 1 | |
| Audio Analog | × 2 (Microphone, Loudspeaker) | |
| ADC | × 3 | |
| SPI | × 1 | |
| SD Card | × 1 | |
| RESET_N | × 1 | |
| PWRKEY | × 1 | |
| I2C | × 2 | |
| Wi-Fi Scan / Bluetooth Antenna (Optional) | × 1 | |
| GNSS Antenna (Optional) / Main Antenna | × 1 / × 1 | |
| Enhanced Features | FOTA | ● |
| BLE (Bluetooth 4.2) | ○ | |
| Wi-Fi Scan | ○ | |
| GNSS | ○ | |
| Audio Playback / Audio Recording | ● | |
| QuecLocator® / QuecPython® / QuecFile® / (U)SIM Card Detection | ● / ● / ● / ● | |
| Software Features – Protocols | – | TCP / UDP / PPP / NITZ / PING / FILE / MQTT / NTP / HTTP / HTTPS / SSL / FTP / FTPS / CMUX / MMS |
| Drivers | RIL Driver | Android 4.x–13.x |
| USB RNDIS Driver | Windows 7/8/8.1/10/11 Linux 2.6–6.5 |
|
| GNSS Driver (Optional) | Android 4.x–13.x | |
| USB ECM Driver | Linux 2.6–5.18 | |
| USB Serial Driver | Windows 7/8/8.1/10/11 Linux 2.6–6.5 Android 4.x–13.x |
|
| Electrical Features | Supply Voltage Range | 3.3–4.3 V, Typ. 3.8 V |
| Power Consumption (Typical) | 31 μA @ Power Off 1.5 mA @ LTE Sleep (PF=128) 1.4 mA @ LTE Sleep (PF=256) 27.9 mA @ Idle (PF=64, USB Connected) 12.7 mA @ Idle (PF=64, USB Disconnected) |
Downloads
Quectel EC200U Series LTE Standard Specification V1.4
(pdf, 224KB)
| Cellular category | LTE Cat 1 |
|---|---|
| Cellular Frequency Bands | Quad-band: 850/900/1800/1900MHz/LTE-FDD B1/LTE-FDD B3… |
| Data Rates | It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. |
| Interfaces | USB Type-C connector |
| Protocols | supporting TCP/IP, UDP, HTTP, FTP, and PPP, enabling direct internet connectivity, file transfers, web requests, and transparent data transmission over cellular networks. |
| GNSS | GPS + GLONASS with QuecFastFix |
