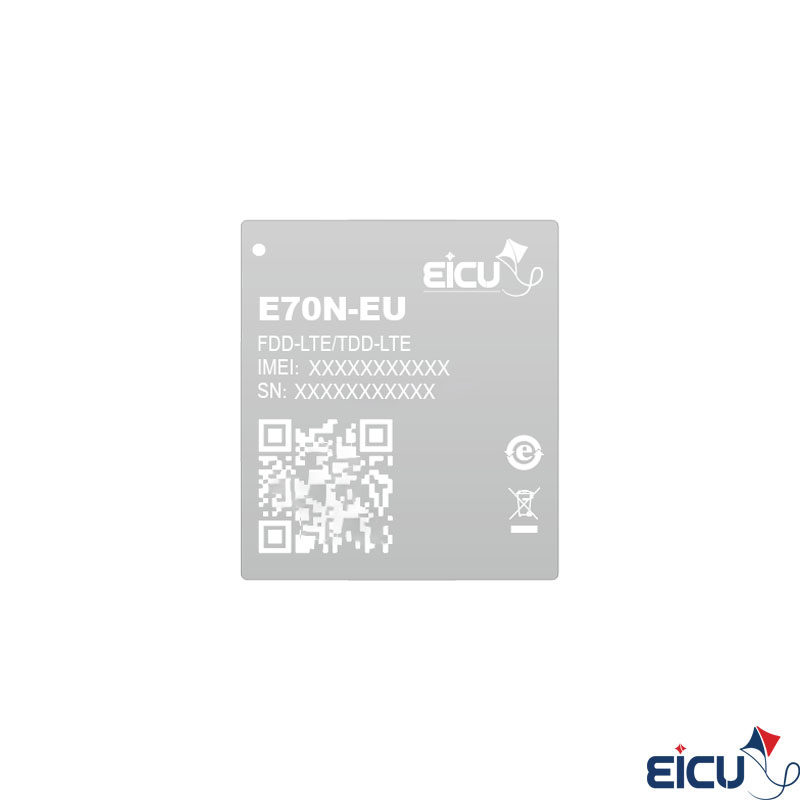

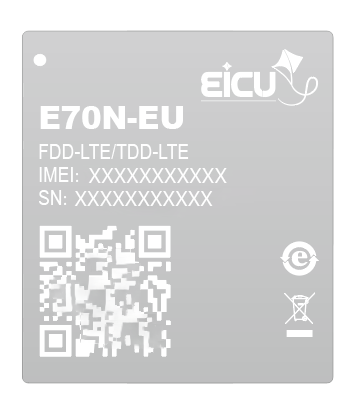

E70N-EU LTE CAT1 module

Introduction

E70N is a compact LTE Cat 1 wireless communication module based on the ASR1605 chipset. It supports global variants (E70N‑CN, E70N‑EU), FDD/TDD LTE, Wi‑Fi scan, and common IoT protocols. The module is designed for small form‑factor integration (LGA 109‑pin) and multimedia/OPEN development in M2M applications.

Key Features

• Cellular: LTE Cat 1 (FDD & TDD)
• Peak rates: FDD up to 10 Mbps DL / 5 Mbps UL; TDD up to 8 Mbps DL / 2 Mbps UL
• Wi‑Fi: Wi‑Fi scan support
• Interfaces: USB 2.0, UART, I2C, SPI, PCM, ADC, MIC, EAR
• Protocols: TCP, UDP, MQTT, SSL (optional FTP/HTTP/LwM2M/CoAP)
• Upgrade: FOTA (optional) and one‑click upgrade tool
• Form factor: LGA package, 17.8 × 15.8 × 2.4 mm, 109 pins
• Power modes: PSM, sleep, power‑off ultra low current

Specifications

• Mechanical:
  • Package: LGA, 109 pins
  • Size: 17.8 × 15.8 × 2.4 mm
• Radio / Bands:
  • E70N‑CN (China/India): FDD B1/B3/B5/B8; TD‑LTE B38/B39/B40/B41
  • E70N‑EU (Europe): FDD B1/B3/B5/B7/B8/B20/B28
• Data rates:
  • LTE FDD (Cat 1, non‑CA): Max 10 Mbps DL / 5 Mbps UL
  • LTE TDD (Cat 1, non‑CA): Max 8 Mbps DL / 2 Mbps UL
• Transmit power:
  • Class 3 LTE TDD/FDD: 23 ± 2.7 dBm
• Interfaces:
  • 1 × USB 2.0
  • 3 × UART
  • 3 × I2C
  • 2 × SPI
  • 2 × ADC
  • 1 × PCM, 1 × MIC, 1 × EAR
  • WAKEUP‑IN, Fly Mode, Power on/off, Reset
  • SIM ×2 (1.8 / 3.0 V)
  • Antenna: Main, GNSS (optional)
• Power & current:
  • Supply voltage: 3.5 V – 4.35 V
  • Power‑off: 10 µA
  • PSM: 4 µA
  • Sleep: 2 mA
• Software / Drivers:
  • Drivers: Windows, Linux 2.6, Android 4.0
  • Tools: One‑click upgrade tool, FOTA upgrade
• Environmental:
  • Operating temperature: −30 °C to 75 °C
  • Storage temperature: −40 °C to 85 °C
  • Humidity: 5% – 95%

Applications

• Industrial metering and automation
• Shared/public equipment (e‑scooters, bikes, vending)
• Security monitoring and surveillance
• Financial POS terminals
• Asset/vehicle trackers
• Public network PTT/POC devices
• Other M2M/IoT devices requiring compact LTE Cat 1 connectivity

Notes / Advantages

• Small LGA form factor for compact device design
• Rich peripheral interfaces for multimedia and expansion
• Supports global LTE variants
• Optional dual SIM and FOTA for resilient deployments
