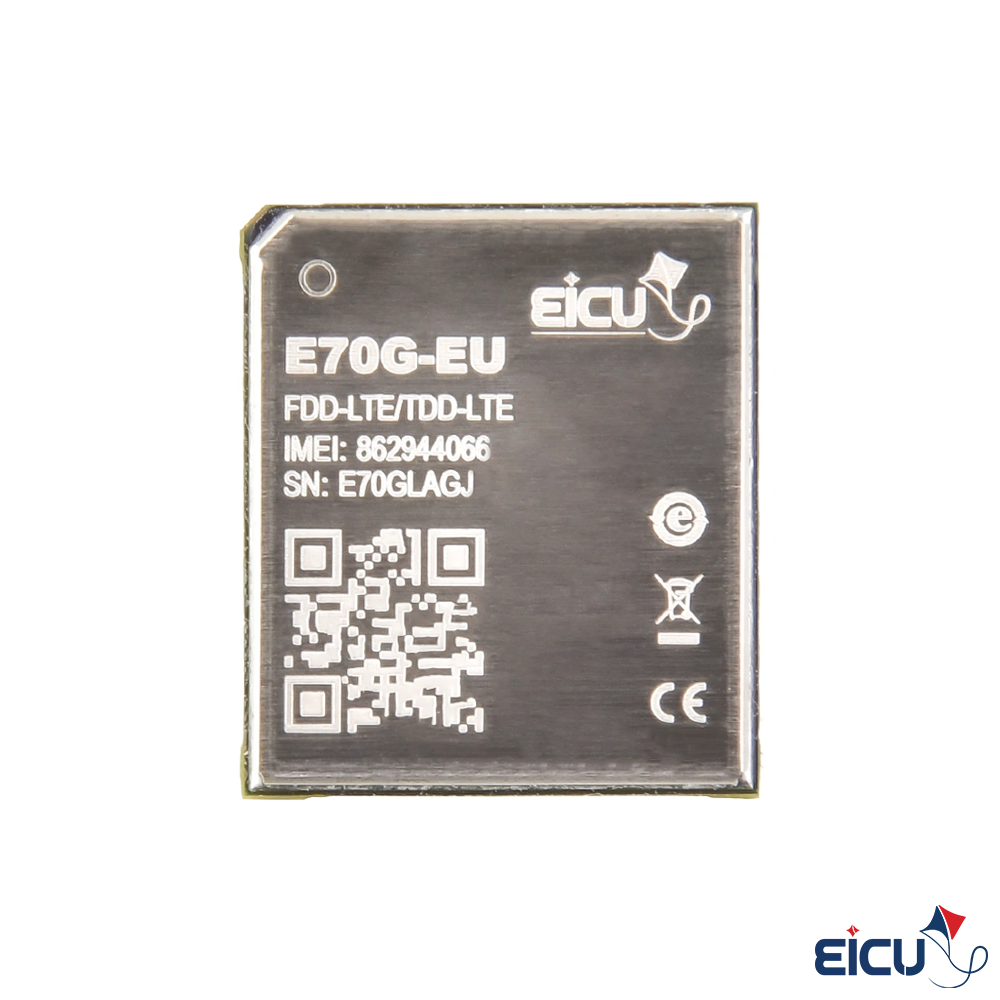

E70G-EU LGA Eicut Module Supporting LTE cat1/GPS/GLONASS/BeiDou/Galileo/Wi‑Fi scan and EU/CN coverage
Availability:
10 in stock
- LTE Cat 1 (FDD/TDD)
- GNSS Support
- up to 10 Mbps downlink / 5 Mbps uplink (FDD) and 8 Mbps/2 Mbps (TDD)

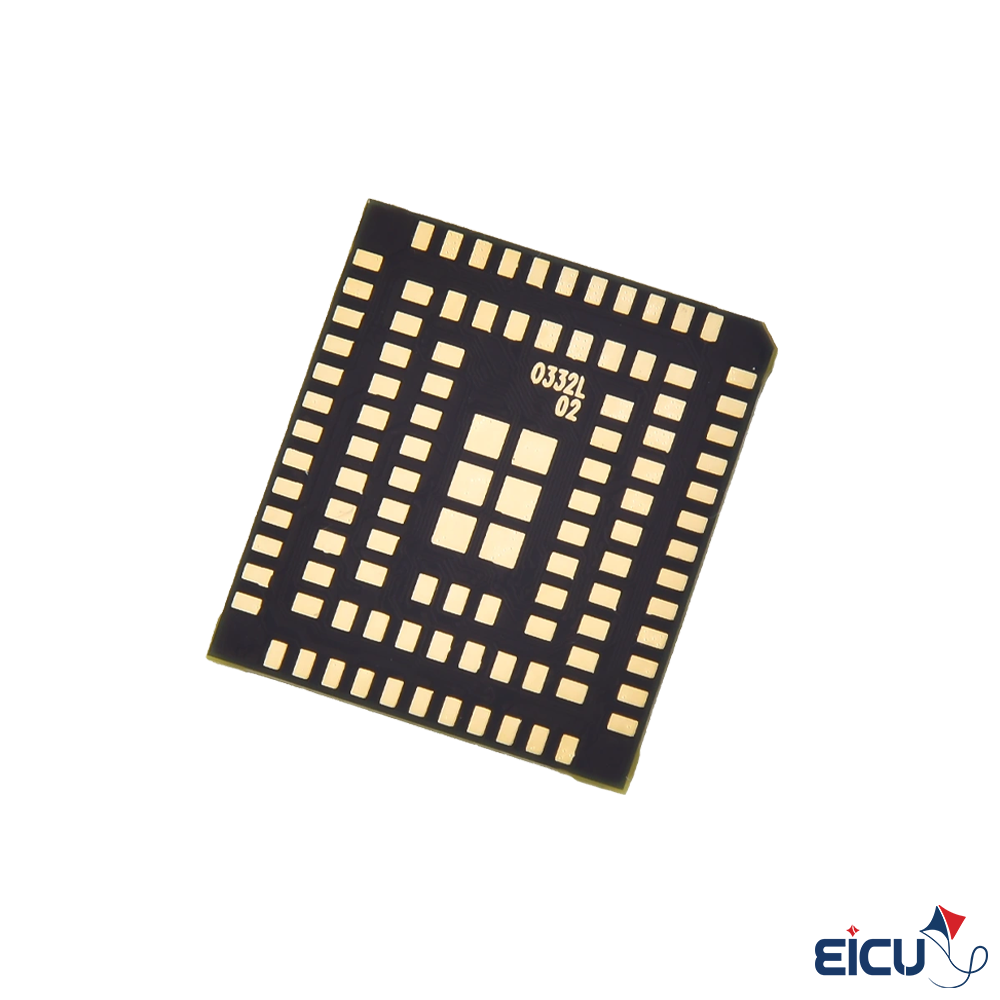

- Small LGA package — 17.7 × 15.8 × 2.4 mm, 109-pin
Compare
E70G-EU LGA Eicut Module Introduction
E70G is a compact LTE Cat 1 wireless communication module based on the ASR1605 chipset. It supports global variants (E70G‑CN, E70G‑EU), FDD/TDD LTE, GNSS, Wi‑Fi scan, and common IoT protocols. The module is designed for small form‑factor integration (LGA 109‑pin) and multimedia/OPEN development in M2M applications.
E70G-EU LGA Eicut Module Features
- Cellular: LTE Cat 1 (FDD & TDD)
- Peak rates: FDD up to 10 Mbps DL / 5 Mbps UL; TDD up to 8 Mbps DL / 2 Mbps UL
- Wi‑Fi: Wi‑Fi scan support
- GNSS: GPS / GLONASS / BeiDou / Galileo
- Interfaces: USB 2.0, UART, I2C, SPI, PCM, ADC, MIC, EAR
- Protocols: TCP, UDP, MQTT, SSL (optional FTP/HTTP/LwM2M/CoAP)
- Upgrade: FOTA (optional) and one‑click upgrade tool
- Form factor: LGA package, 17.8 × 15.7 × 2.4 mm, 109 pins
- Power modes: PSM, sleep, power‑off ultra low current
- Options: Dual SIM (optional), GNSS antenna (option)
E70G-EU LGA Eicut Module Specifications
| Category | Parameter | Value |
|---|---|---|
| Mechanical | Package | LGA, 109 pins |
| Size | 17.8 × 15.7 × 2.4 mm | |
| Radio / Bands | E70G‑CN (China/India) | FDD B1/B3/B5/B8; TD‑LTE B38/B39/B40/B41 |
| E70G‑EU (Europe) | FDD B1/B3/B5/B7/B8/B20/B28 | |
| Data rates | LTE FDD (Cat 1, non‑CA) | Max 10 Mbps DL / 5 Mbps UL |
| LTE TDD (Cat 1, non‑CA) | Max 8 Mbps DL / 2 Mbps UL | |
| Transmit power | Class 3 LTE TDD/FDD | 23 ± 2.7 dBm |
| GNSS | Supported systems | GPS L1 C/A (1575.42 MHz), GLONASS L1 (1602.5625 MHz), BeiDou B1 (1561.098 MHz), Galileo E1 (1575.42 MHz) |
| Interfaces | USB | 1 × |
| UART | 3 × | |
| I2C | 3 × | |
| SPI | 2 × | |
| ADC | 2 × | |
| Audio | 1 × PCM, 1 × MIC, 1 × EAR | |
| Control | WAKEUP‑IN, Fly Mode, Power on/off, Reset | |
| SIM | 2 × SIM (1.8 / 3.0 V) | |
| Antenna | Main, GNSS (optional) | |
| Power & current | Supply voltage | 3.5 V – 4.35 V |
| Power‑off | 10 µA | |
| PSM | 4 µA | |
| Sleep | 2 mA | |
| Software / Drivers | Drivers | Windows, Linux 2.6, Android 4.0 |
| Tools | One‑click upgrade tool, FOTA upgrade | |
| Environmental | Operating temperature | −30 °C to 75 °C |
| Storage temperature | −40 °C to 85 °C | |
| Humidity | 5% – 95% |
E70G-EU LGA Eicut Module Applications
- Industrial metering and automation
- Shared/public equipment (e‑scooters, bikes, vending)
- Security monitoring and surveillance
- Financial POS terminals
- Asset/vehicle trackers
- Public network PTT/POC devices
- Other M2M/IoT devices requiring compact LTE Cat 1 connectivity
Notes / Advantages
- Small LGA form factor for compact device design
- Rich peripheral interfaces for multimedia and expansion
- Supports global LTE variants and GNSS for tracking use cases
- Optional dual SIM and FOTA for resilient deployments
Documents
Specification file
(pdf, 336KB)
| Package | LGA, 109 pins |
|---|---|
| Interfaces | 1 × USB 2.0/3 × UART/3 × I2C/2 × SPI/2 × ADC/1 × PCM, 1 × MIC, 1 × EAR/WAKEUP‑IN, Fly Mode, Power on/off, Reset/SIM ×2 (1.8 / 3.0 V)/Antenna: Main, GNSS (optional) |
| Supply voltage | 3.5 V – 4.35 V |
| Data Rates | LTE FDD (Cat 1, non‑CA): Max 10 Mbps DL / 5 Mbps UL |
| Variants | E70G‑CN (China/India)/E70G‑EU (Europe) |
