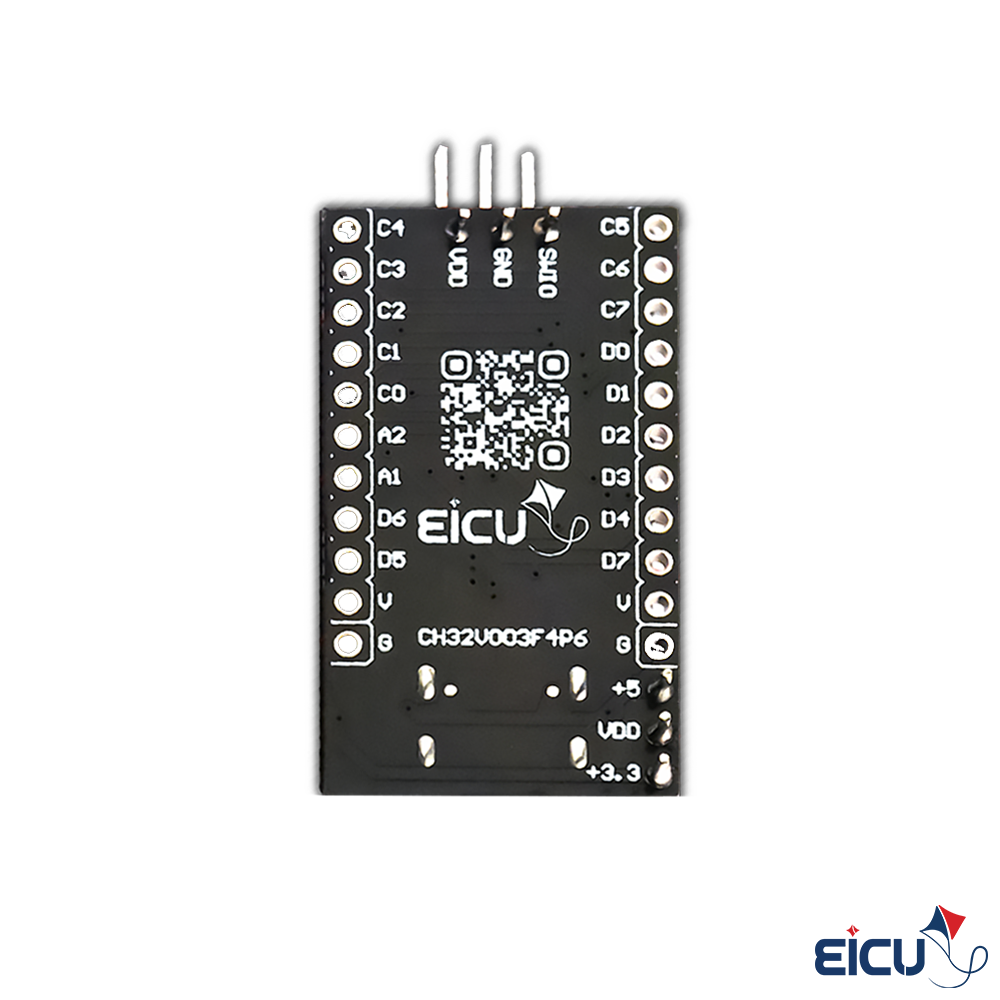

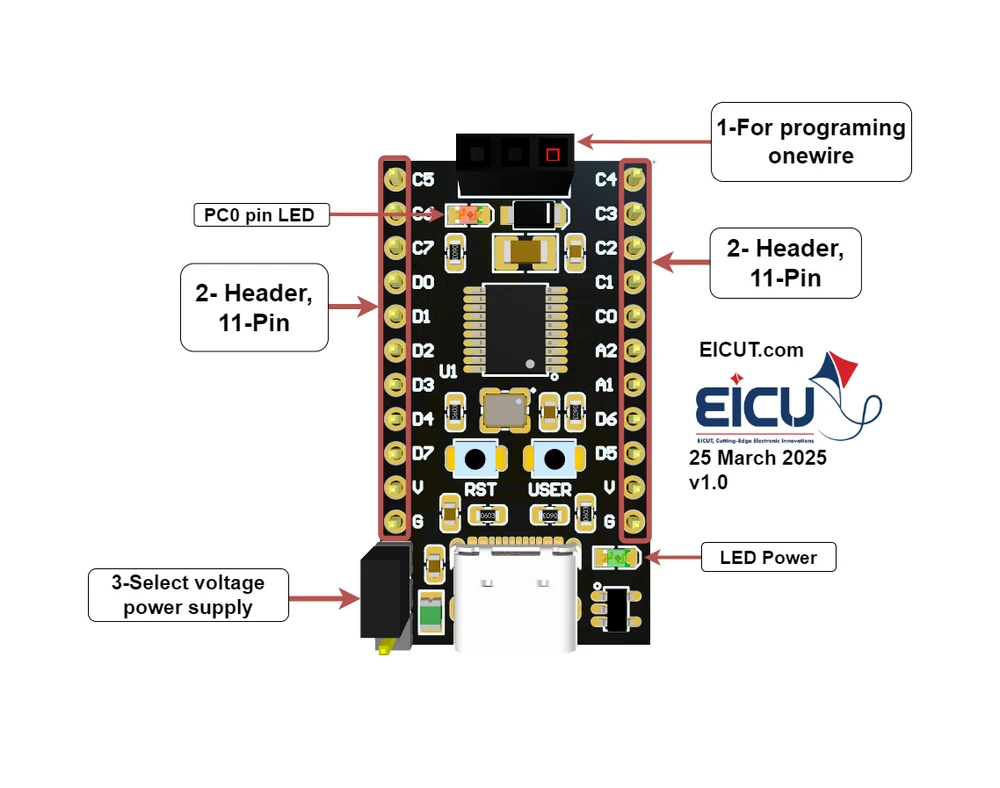

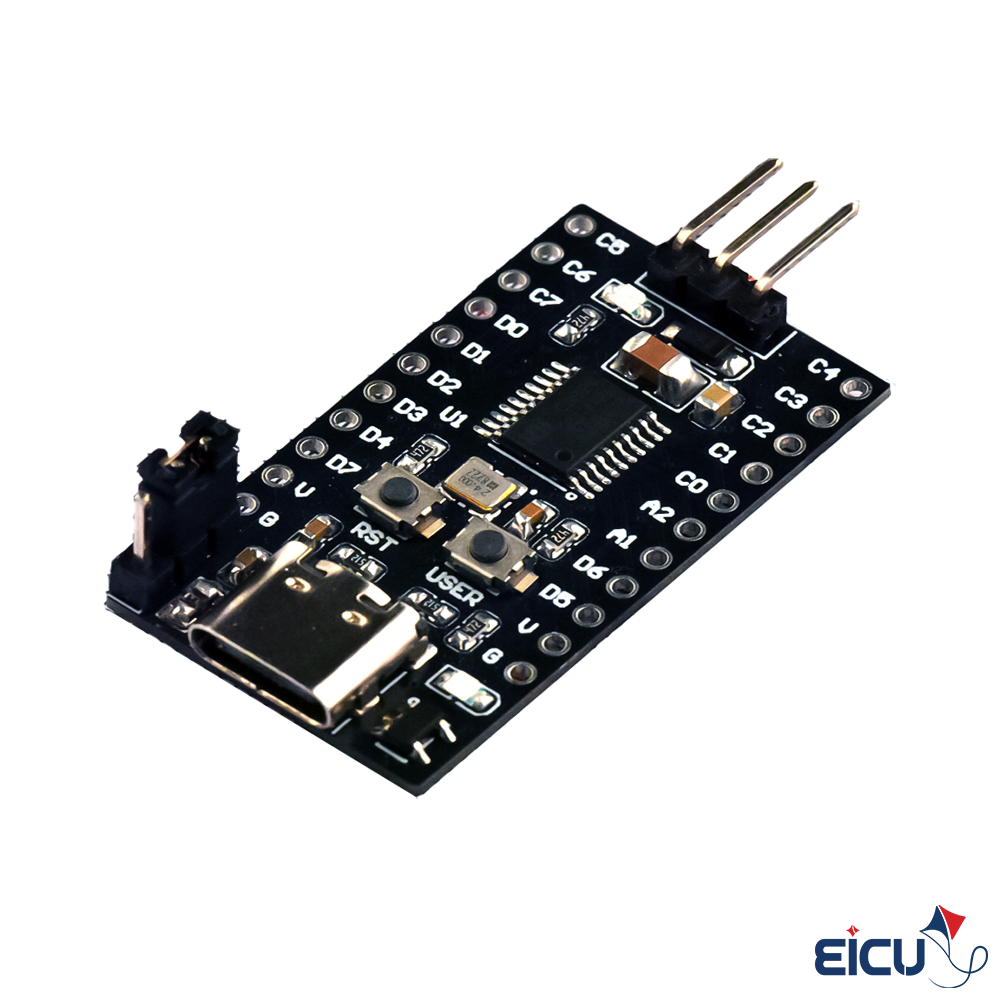

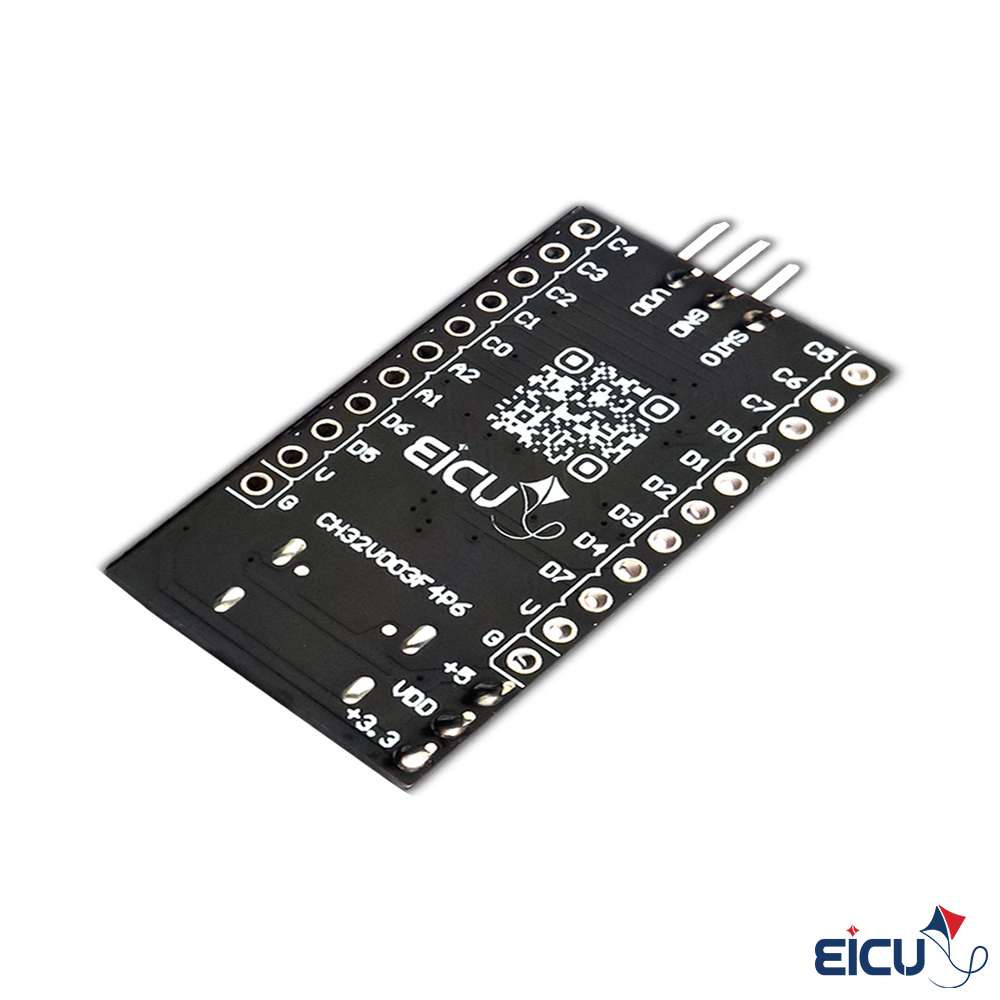

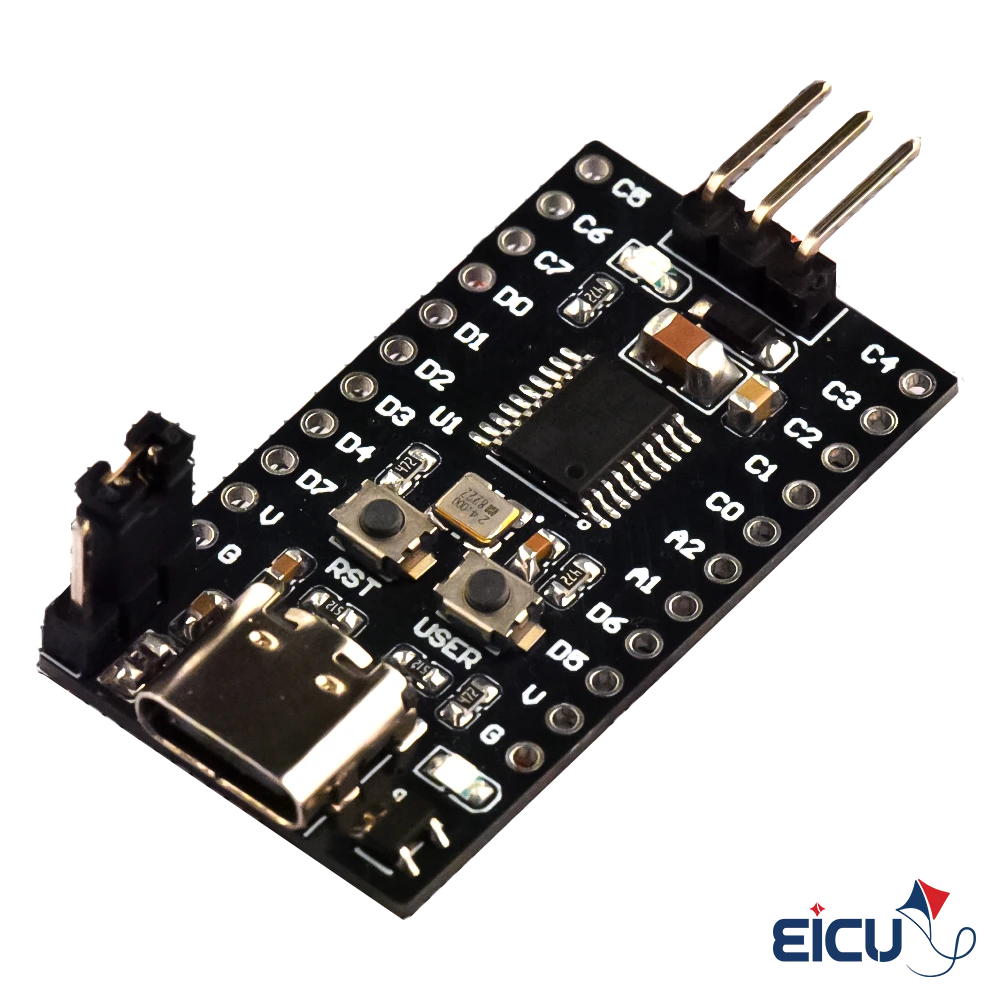

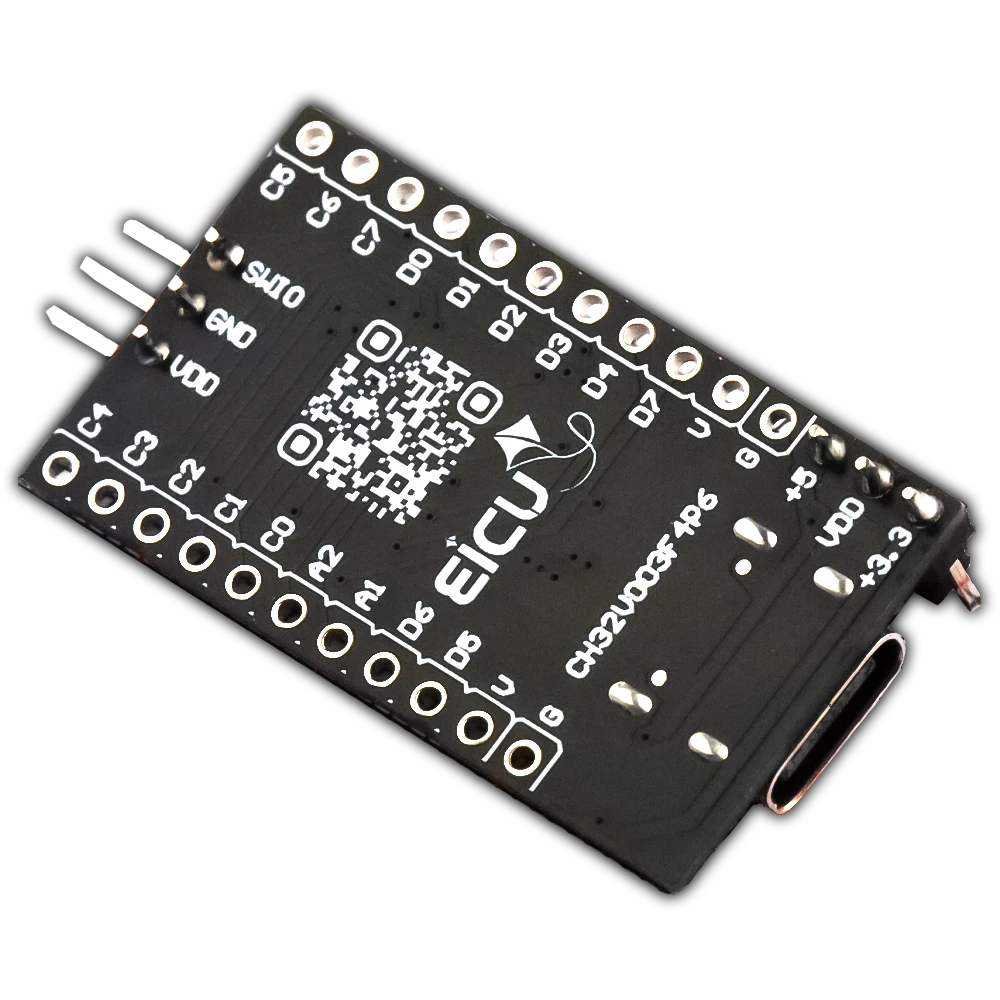

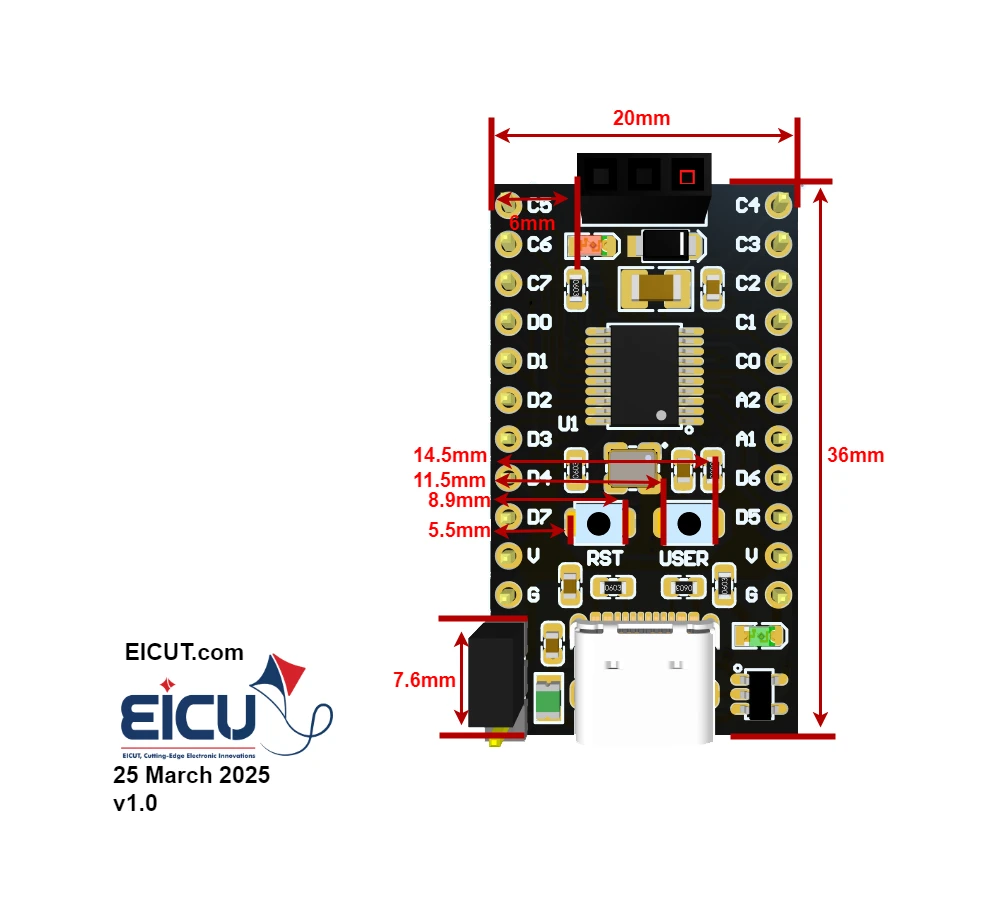

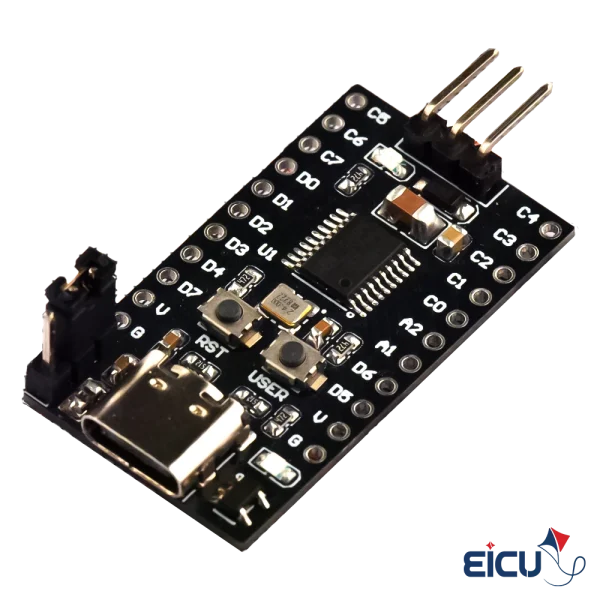

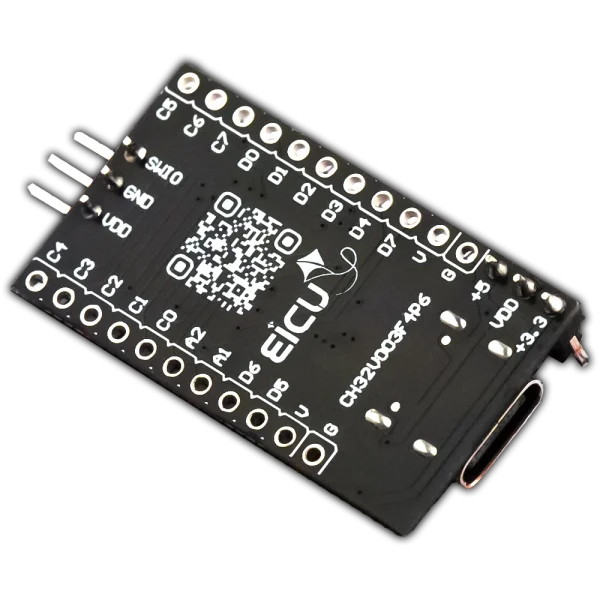

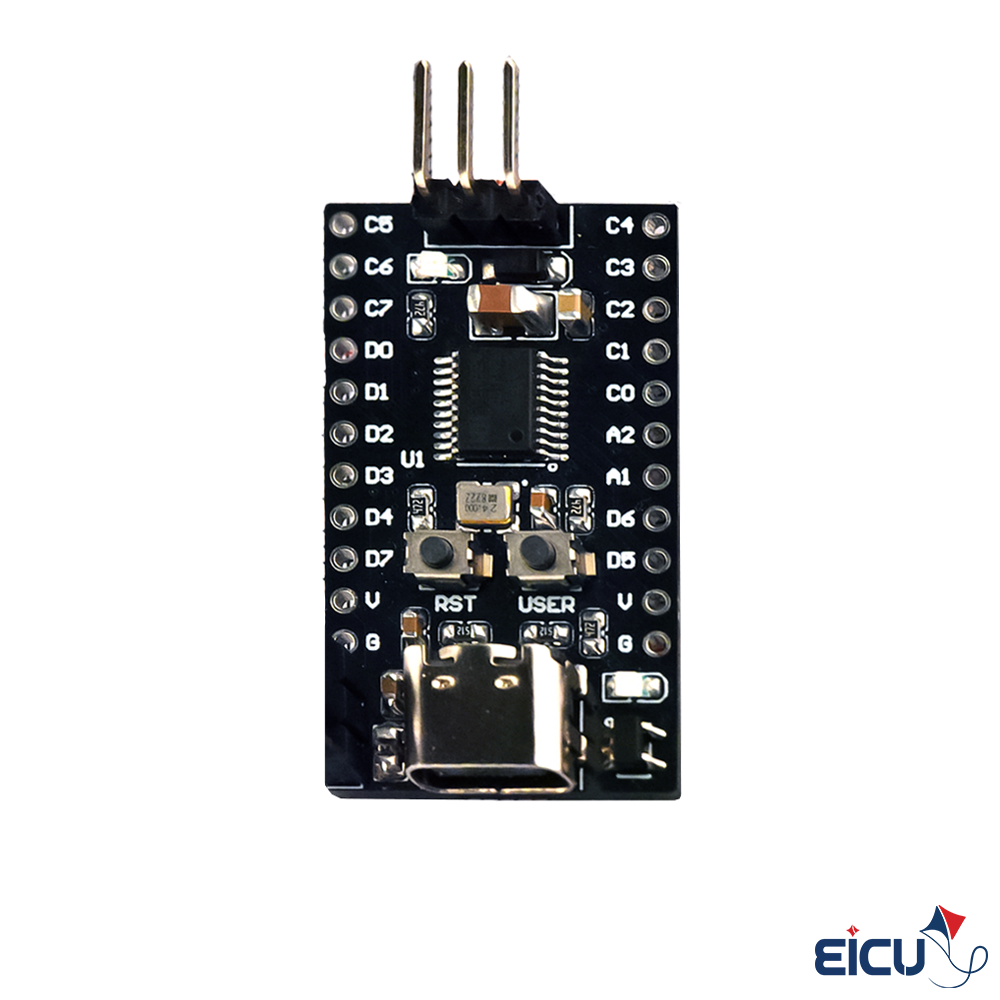

CH32V003 Mini Development Board
10 in stock
- Mini Development Board For CH32V003F4P6 From Wch
- Core: 32-bit RISC-V (RV32EmC / RV32EC for extensions)
- Registers: 16 general-purpose registers
- Interrupts: Up to 256 (including exceptions)
$ 5.0
10 in stock
CH32V003 Mini Development Board Description
CH32V003 series is an industrial-grade general-purpose microcontroller designed based on QingKe RISC-V2Acore, which supports 48MHz system main frequency in the product function. The series features wide voltage,single line debug, low-power consumption and ultra-small package. It provides commonly used peripheralfunctions, built-in 1 group of DMA controller, 1 group of 10-bit analog-to-digital conversion ADC, 1 group ofop-amp comparator, multiple timers, standard communication interfaces such as USART, I2C, SPI, etc. The rated operating voltage of the product is 3.3V or 5V, and the operating temperature range is -40℃～85℃ industrial-grade.
QingKe V2 series microprocessor is a 32-bit general-purpose MCU based on the RISC-V instruction set (RV32I subset RV32E). It uses only 16 general-purpose registers and a streamlined structure optimized for deep embedded scenarios. The V2 series supports the RV32EC extension; the V2C variant adds hardware multiplication. Custom XW extensions include Hardware Prologue/Epilogue (HPE), Vector Table Free (VTF), a simplified 1-wire/2-wire serial debug interface (SDI), and support for the WFE instruction.
CH32V003 Mini Development Board Features
- Core: 32-bit RISC-V (RV32EmC / RV32EC for extensions)
- Registers: 16 general-purpose registers
- Pipeline: 2-stage
- Interrupts: Up to 256 (including exceptions)
- Low-power: Sleep, Deep sleep; WFI/WFE support
- Debug interfaces: 1-wire/2-wire SDI, standard RISC-V debug
- Optional: V2C supports hardware multiplication
CH32V003 Microcontroller Specifications
| Feature | Description |
|---|---|
| Instruction Set Architecture (ISA) | RV32EmC |
| Pipeline | 2-stage pipeline |
| Branch prediction | Static branch prediction |
| Interrupt | Supports a total of 256 interrupts including exceptions, and supports VTF (Vector Table Fetch) |
| Hardware Prologue/Epilogue (HPE) | Supports 2 levels of HPE |
| Low-power consumption mode | Supports Sleep and Deep sleep modes, and supports WFI and WFE sleep methods |
| Extended Instruction Set | Supports half-word and byte operation compression instructions |
| Debug | 1-wire / 2-wire SDI, standard RISC-V debug interface |
CH32V003 Mini Development Board Applications
- Deeply embedded systems requiring a minimal-footprint RISC-V core
- Low-power MCU applications (battery-powered sensors, wearables)
- Systems needing compact interrupt handling and fast wake/sleep transitions
- Designs that benefit from simplified debug (1-wire/2-wire SDI) and custom instruction extensions (HPE, VTF, XW)
Downloads
| Core | 32-bit RISC-V (RV32EmC / RV32EC for extensions) |
|---|---|
| Registers | 16 general-purpose registers |
| Pipeline | 2-stage |
| Interrupts | Up to 256 (including exceptions) |
| Low-power | Sleep, Deep sleep; WFI/WFE support |
| Debug interfaces | 1-wire/2-wire SDI, standard RISC-V debug |
